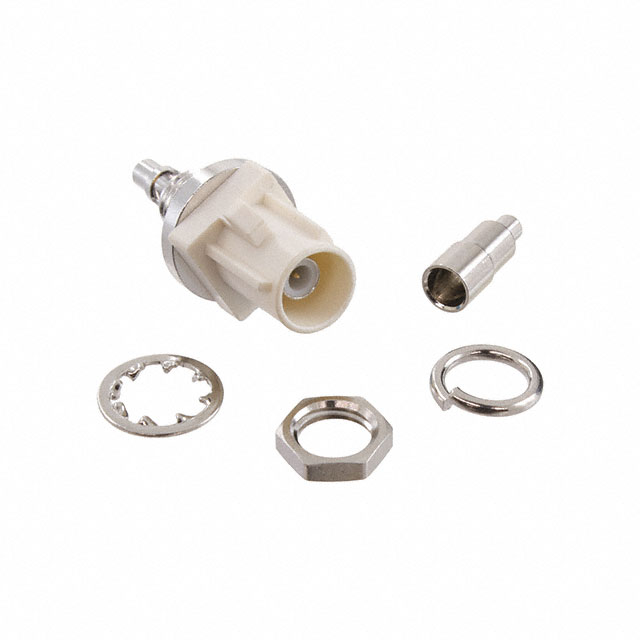

Specification	RF55-26B-T-09-50-A-SH

Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	Fakra
Connector Style	SMA
Connector Type	Plug, Male Pin
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code B
Frequency - Max [Max]	4 GHz
Housing Color	White
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 C
Shield Termination	Solder

RF55-26 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Center Contact Plating	Body Material	Connector Style	Connector Style	Housing Color	Frequency - Max [Max]	Fastening Type	Number of Ports	Mounting Type	Ingress Protection	Shield Termination	Features	Contact Termination	Connector Type	Center Contact Material	Mounting Feature	Impedance
Adam Tech RF55-26H-T-09-50-A-SH	85 °C	-40 C	Polytetrafluoroethylene (PTFE)	Gold	Brass	Fakra	SMA	Violet	4 GHz	Locking Ramp	1	Panel Mount	IP67 - Dust Tight Waterproof	Solder	Code H	Crimp	Plug Male Pin	Brass	Bulkhead - Rear Side Nut	50 Ohms
Adam Tech RF55-26K-T-09-50-A-SH	85 °C	-40 C	Polytetrafluoroethylene (PTFE)	Gold	Brass	Fakra	SMA	Curry	4 GHz	Locking Ramp	1	Panel Mount	IP67 - Dust Tight Waterproof	Solder	Code K	Crimp	Plug Male Pin	Brass	Bulkhead - Rear Side Nut	50 Ohms
Adam Tech RF55-26D-T-09-50-A-SH	85 °C	-40 C	Polytetrafluoroethylene (PTFE)	Gold	Brass	Fakra	SMA	Bordeaux Violet	4 GHz	Locking Ramp	1	Panel Mount	IP67 - Dust Tight Waterproof	Solder	Code D	Crimp	Plug Male Pin	Brass	Bulkhead - Rear Side Nut	50 Ohms
Adam Tech RF55-26B-T-09-50-A-SH	85 °C	-40 C	Polytetrafluoroethylene (PTFE)	Gold	Brass	Fakra	SMA	White	4 GHz	Locking Ramp	1	Panel Mount	IP67 - Dust Tight Waterproof	Solder	Code B	Crimp	Plug Male Pin	Brass	Bulkhead - Rear Side Nut	50 Ohms
Adam Tech RF55-26E-T-09-50-A-SH	85 °C	-40 C	Polytetrafluoroethylene (PTFE)	Gold	Brass	Fakra	SMA	Green	4 GHz	Locking Ramp	1	Panel Mount	IP67 - Dust Tight Waterproof	Solder	Code E	Crimp	Plug Male Pin	Brass	Bulkhead - Rear Side Nut	50 Ohms
Adam Tech RF55-26Z-T-09-50-A-SH	85 °C	-40 C	Polytetrafluoroethylene (PTFE)	Gold	Brass	Fakra	SMA	Blue Water	4 GHz	Locking Ramp	1	Panel Mount	IP67 - Dust Tight Waterproof	Solder	Code Z	Crimp	Plug Male Pin	Brass	Bulkhead - Rear Side Nut	50 Ohms
Adam Tech RF55-26M-T-09-50-A-SH	85 °C	-40 C	Polytetrafluoroethylene (PTFE)	Gold	Brass	Fakra	SMA	Orange Pastel	4 GHz	Locking Ramp	1	Panel Mount	IP67 - Dust Tight Waterproof	Solder	Code M	Crimp	Plug Male Pin	Brass	Bulkhead - Rear Side Nut	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 9.50
		10	$ 7.28
		25	$ 6.58
	N/A	38	$ 7.40
