RF55-26 Series
Manufacturer: Adam Tech
Beta
⌘K
FAKRA PLUG SMA TYPE: STRAIGHT, B
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Material | Center Contact Plating | Body Material | Connector Style | Connector Style | Housing Color | Frequency - Max [Max] | Fastening Type | Number of Ports | Mounting Type | Ingress Protection | Shield Termination | Features | Contact Termination | Connector Type | Center Contact Material | Mounting Feature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

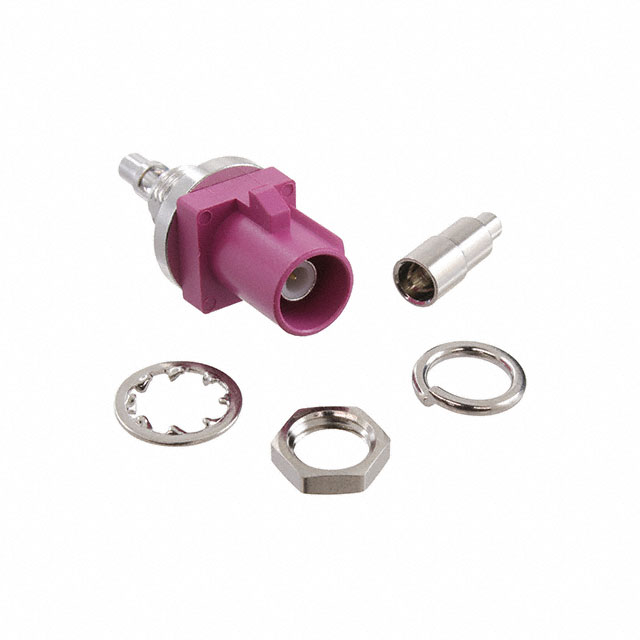

 Adam Tech | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Fakra | SMA | Violet | 4 GHz | Locking Ramp | 1 | Panel Mount | IP67 - Dust Tight Waterproof | Solder | Code H | Crimp | Plug Male Pin | Brass | Bulkhead - Rear Side Nut | 50 Ohms |
 Adam Tech | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Fakra | SMA | Curry | 4 GHz | Locking Ramp | 1 | Panel Mount | IP67 - Dust Tight Waterproof | Solder | Code K | Crimp | Plug Male Pin | Brass | Bulkhead - Rear Side Nut | 50 Ohms |
 Adam Tech | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Fakra | SMA | Bordeaux Violet | 4 GHz | Locking Ramp | 1 | Panel Mount | IP67 - Dust Tight Waterproof | Solder | Code D | Crimp | Plug Male Pin | Brass | Bulkhead - Rear Side Nut | 50 Ohms |
 Adam Tech | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Fakra | SMA | White | 4 GHz | Locking Ramp | 1 | Panel Mount | IP67 - Dust Tight Waterproof | Solder | Code B | Crimp | Plug Male Pin | Brass | Bulkhead - Rear Side Nut | 50 Ohms |
 Adam Tech | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Fakra | SMA | Green | 4 GHz | Locking Ramp | 1 | Panel Mount | IP67 - Dust Tight Waterproof | Solder | Code E | Crimp | Plug Male Pin | Brass | Bulkhead - Rear Side Nut | 50 Ohms |
 Adam Tech | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Fakra | SMA | Blue Water | 4 GHz | Locking Ramp | 1 | Panel Mount | IP67 - Dust Tight Waterproof | Solder | Code Z | Crimp | Plug Male Pin | Brass | Bulkhead - Rear Side Nut | 50 Ohms |
 Adam Tech | 85 °C | -40 C | Polytetrafluoroethylene (PTFE) | Gold | Brass | Fakra | SMA | Orange Pastel | 4 GHz | Locking Ramp | 1 | Panel Mount | IP67 - Dust Tight Waterproof | Solder | Code M | Crimp | Plug Male Pin | Brass | Bulkhead - Rear Side Nut | 50 Ohms |
