Cables, Wires

C5775.31.01

Active

Prysmian Group

CABLE COAXIAL RG-6 18AWG 1000'

Deep-Dive with AI

Search across all available documentation for this part.

Cables, Wires

C5775.31.01

Active

Prysmian Group

CABLE COAXIAL RG-6 18AWG 1000'

Deep-Dive with AI

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C5775.31.01

Cable Group	RG-6
Cable Type	Coaxial
Conductor Strand	Solid
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	6.68 mm
Jacket (Insulation) Diameter [diameter]	0.263 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length [x]	304.8 m
Length [x]	1000 ft
Shield Type	Foil, Braid
Usage	CATV
Wire Gauge	18 AWG

C5775 Series

Part	Jacket Color	Conductor Strand	Length [x]	Length [x]	Shield Type	Wire Gauge	Jacket (Insulation) Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Impedance	Usage	Cable Group	Length	Length	Dielectric Material	Shield Coverage [custom]	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	VoP, Velocity of Propagation	Conductor Material	Shield Material	Wire Gauge
Prysmian Group C5775.31.02	White	Solid	304.8 m	1000 ft	Braid Foil	18 AWG	Poly-Vinyl Chloride (PVC)	6.68 mm	0.263 "	Coaxial	75 Ohms	CATV	RG-6
Prysmian Group C5775.46.01	Black	Solid			Braid Foil	18 AWG	Poly-Vinyl Chloride (PVC)	6.99 mm	0.275 in	Coaxial	75 Ohms	CATV	RG-6
Prysmian Group C5775.41.01	Black	Solid	15.24 m 304.8 m	50 ft 1000 ft	Braid Foil	18 AWG	Poly-Vinyl Chloride (PVC)	6.68 mm	0.263 "	Coaxial	75 Ohms	CATV	RG-6	100 '	30.48 m
Prysmian Group C5775.46.01	Black	Solid			Braid Foil	18 AWG	Poly-Vinyl Chloride (PVC)	6.99 mm	0.275 in	Coaxial	75 Ohms	CATV	RG-6			Foam Polyethylene (FPE)	60 % 100 %	0.18 in	4.57 mm	83	Copper Coated Steel	Aluminum Flexfoil®
Prysmian Group C5775.31.01	Black	Solid	304.8 m	1000 ft	Braid Foil	0.82 mm² 18 AWG	Poly-Vinyl Chloride (PVC)	6.68 mm	0.263 "	Coaxial	75 Ohms	CATV	RG-6	100 '	30.48 m		60 % 100 %	0.177 in	4.5 mm	85	Copper Coated Steel	Aluminum Flexfoil®	18 AWG
Prysmian Group C5775.41.02	White	Solid	152.4 m 304.8 m	500 ft 1000 ft	Braid Foil	18 AWG	Poly-Vinyl Chloride (PVC)	6.68 mm	0.263 "	Coaxial	75 Ohms	CATV	RG-6	100 '	30.48 m
Prysmian Group C5775.41.02	White	Solid	152.4 m 304.8 m	500 ft 1000 ft	Braid Foil	0.82 mm² 18 AWG	Poly-Vinyl Chloride (PVC)	6.68 mm	0.263 "	Coaxial	75 Ohms	CATV	RG-6				60 % 100 %	0.177 in	4.5 mm	85	Copper Coated Steel	Aluminum Flexfoil®	18 AWG
Prysmian Group C5775.41.01	Black	Solid	304.8 m	1000 ft	Braid Foil	18 AWG	Poly-Vinyl Chloride (PVC)	6.68 mm	0.263 "	Coaxial	75 Ohms	CATV	RG-6	100 '	30.48 m		60 % 100 %	0.177 in	4.5 mm	85	Copper Coated Steel	Aluminum Flexfoil®
Prysmian Group C5775.27.02	White	Solid	152.4 m	500 ft	Braid Foil	18 AWG	Poly-Vinyl Chloride (PVC)	6.68 mm	0.263 "	Coaxial	75 Ohms	CATV	RG-6				60 % 100 %	0.177 in	4.5 mm	85	Copper Coated Steel	Aluminum Flexfoil®
Prysmian Group C5775.27.02	White	Solid	152.4 m	500 ft	Braid Foil	18 AWG	Poly-Vinyl Chloride (PVC)	6.68 mm	0.263 "	Coaxial	75 Ohms	CATV	RG-6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	1000	$ 0.13
		1000	$ 0.13
		3482000	$ 0.13
	Spool	1000	$ 0.12
		1000	$ 0.12
		2000	$ 0.12
		2000	$ 0.12
		3000	$ 0.11
		3000	$ 0.11
		5000	$ 0.11
		5000	$ 0.11
		7000	$ 0.11
		7000	$ 0.11
		10000	$ 0.10
		10000	$ 0.10
		25000	$ 0.10
		25000	$ 0.10
		50000	$ 0.09
		50000	$ 0.09
		100000	$ 0.09
		100000	$ 0.09

Description

General part information

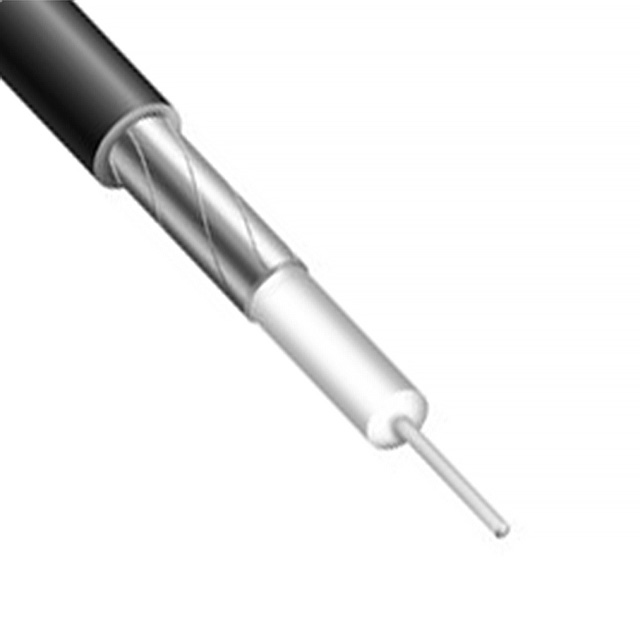

C5775 Series

Coaxial Cable 18 AWG (0.82mm˛) RG-6 100.0' (30.48m) 75 Ohms

Documents

Technical documentation and resources

No documents available
