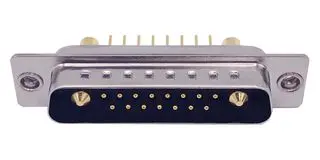

681M17W2103L111
ActiveNorComp Inc.
COMBO D-SUB CONN, PLUG, DB-17W2, TH ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
Connectors, Interconnects
681M17W2103L111
ActiveNorComp Inc.
COMBO D-SUB CONN, PLUG, DB-17W2, TH ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 681M17W2103L111 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 40 A, 5 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Features | Grounding Indents |
| Flange Feature | Board Side (4-40) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 17 |
| Number of Rows [custom] | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 C |
| Shell Material, Finish | Steel, Nickel Plated |
| Shell Size, Connector Layout | 17W2 |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
| Voltage Rating | 250 V |
| Part | Contact Material | Color | Dielectric Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Shell Material, Finish | Current Rating (Amps) | Contact Type | Connector Type | Termination | Number of Positions | Material Flammability Rating | Contact Finish | Mounting Type | Connector Style | Contact Finish Thickness | Flange Feature | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Copper Alloy | Black | Polybutylene Terephthalate (PBT) | 250 V | -55 C | 125 °C | Grounding Indents | B DB | 17W2 | 3 | Nickel Plated Steel | 5 A 40 A | Signal and Power | Plug Male Pins | Solder | 17 | UL94 V-0 | Gold | Panel Mount Through Hole | Combo D-Sub | Flash | Housing/Shell (Unthreaded) | 2 |
NorComp Inc. | Copper Alloy | Black | Polybutylene Terephthalate (PBT) | 250 V | -55 C | 125 °C | Grounding Indents | B DB | 17W2 | 3 | Nickel Plated Steel | 5 A 40 A | Signal and Power | Plug Male Pins | Solder | 17 | UL94 V-0 | Gold | Panel Mount Through Hole | Combo D-Sub | Flash | Board Side (4-40) | 2 |
NorComp Inc. | Copper Alloy | Black | Polybutylene Terephthalate (PBT) | 250 V | -55 C | 125 °C | Board Lock Grounding Indents | B DB | 17W2 | 3 | Nickel Plated Steel | 5 A 40 A | Signal and Power | Plug Male Pins | Solder | 17 | UL94 V-0 | Gold | Panel Mount Through Hole | Combo D-Sub | Flash | Board Side (4-40) | 2 |
 NorComp Inc. | Copper Alloy | Black | Polybutylene Terephthalate (PBT) | 250 V | -55 C | 125 °C | B DB | 17W2 | 3 | Nickel Plated Steel | 5 A 40 A | Signal and Power | Receptacle Female Sockets | Solder | 17 | UL94 V-0 | Gold | Panel Mount Through Hole | Combo D-Sub | Flash | Housing/Shell (Unthreaded) | 2 | |
NorComp Inc. | Copper Alloy | Black | Polybutylene Terephthalate (PBT) | 250 V | -55 C | 125 °C | B DB | 17W2 | 3 | Nickel Plated Steel | 5 A 40 A | Signal and Power | Receptacle Female Sockets | Solder | 17 | UL94 V-0 | Gold | Panel Mount Through Hole | Combo D-Sub | Flash | Board Side (4-40) | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
681M17W Series
17 (15 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
