681M17W Series

Catalog

COMBO D-SUB CONN, PLUG, DB-17W2, TH ROHS COMPLIANT: YES

Part	Contact Material	Color	Dielectric Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]	Shell Material, Finish	Current Rating (Amps)	Contact Type	Connector Type	Termination	Number of Positions	Material Flammability Rating	Contact Finish	Mounting Type	Connector Style	Contact Finish Thickness	Flange Feature	Number of Rows [custom]

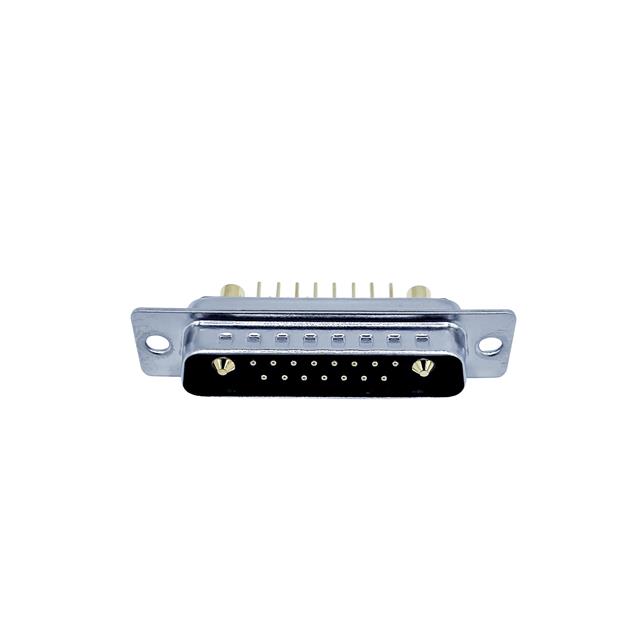

NorComp Inc. 681M17W2103L101	Copper Alloy	Black	Polybutylene Terephthalate (PBT)	250 V	-55 C	125 °C	Grounding Indents	B DB	17W2	3	Nickel Plated Steel	5 A 40 A	Signal and Power	Plug Male Pins	Solder	17	UL94 V-0	Gold	Panel Mount Through Hole	Combo D-Sub	Flash	Housing/Shell (Unthreaded)	2
NorComp Inc. 681M17W2103L111	Copper Alloy	Black	Polybutylene Terephthalate (PBT)	250 V	-55 C	125 °C	Grounding Indents	B DB	17W2	3	Nickel Plated Steel	5 A 40 A	Signal and Power	Plug Male Pins	Solder	17	UL94 V-0	Gold	Panel Mount Through Hole	Combo D-Sub	Flash	Board Side (4-40)	2
NorComp Inc. 681M17W2103L151	Copper Alloy	Black	Polybutylene Terephthalate (PBT)	250 V	-55 C	125 °C	Board Lock Grounding Indents	B DB	17W2	3	Nickel Plated Steel	5 A 40 A	Signal and Power	Plug Male Pins	Solder	17	UL94 V-0	Gold	Panel Mount Through Hole	Combo D-Sub	Flash	Board Side (4-40)	2

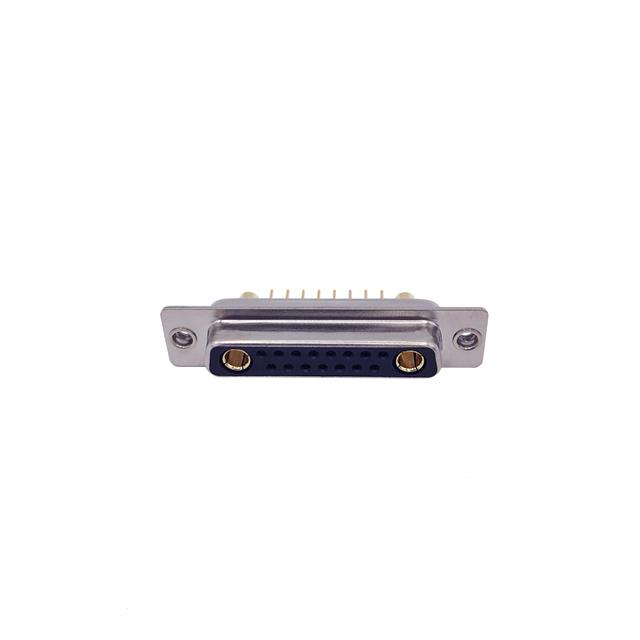

NorComp Inc. 681M17W2203L101	Copper Alloy	Black	Polybutylene Terephthalate (PBT)	250 V	-55 C	125 °C		B DB	17W2	3	Nickel Plated Steel	5 A 40 A	Signal and Power	Receptacle Female Sockets	Solder	17	UL94 V-0	Gold	Panel Mount Through Hole	Combo D-Sub	Flash	Housing/Shell (Unthreaded)	2
NorComp Inc. 681M17W2203L111	Copper Alloy	Black	Polybutylene Terephthalate (PBT)	250 V	-55 C	125 °C		B DB	17W2	3	Nickel Plated Steel	5 A 40 A	Signal and Power	Receptacle Female Sockets	Solder	17	UL94 V-0	Gold	Panel Mount Through Hole	Combo D-Sub	Flash	Board Side (4-40)	2
