Technical Specifications
Parameters and characteristics for this part
| Specification | C2433A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 16 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 13.94 mm |
| Jacket (Insulation) Diameter [diameter] | 0.549 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.813 mm |
| Jacket (Insulation) Thickness | 0.032 in |
| Jacket Color | Gray |
| Length | 304.8 m, 15.24 m, 152.4 m |
| Length | 1000 ft, 50 ft, 500 ft |
| Length [x] | 100 ft |
| Length [x] | 30.5 m |
| Number of Conductors [custom] | 25 |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 ░C |
| Ratings | ASTM B-33 |
| Usage | Communication, Control |
| Voltage | 300 VDC |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 666.23 | |
| 1 | $ 666.23 | |||
| 5 | $ 592.20 | |||
| 5 | $ 592.20 | |||
| 10 | $ 536.69 | |||
| 10 | $ 536.69 | |||
| N/A | 1 | $ 284.08 | ||
| 1 | $ 284.08 | |||
| 3 | $ 2371.14 | |||
| 3 | $ 2371.14 | |||
| 11 | $ 535.78 | |||
| 11 | $ 535.78 | |||
| 2000 | $ 4.41 | |||
| 2000 | $ 4.41 | |||
| 20000 | $ 4.41 | |||
| 20000 | $ 535.78 | |||
| 20000 | $ 284.08 | |||
| 20000 | $ 2371.14 | |||
| Spool | 1000 | $ 4.37 | ||
| 1000 | $ 4.37 | |||
| 2000 | $ 4.15 | |||
| 2000 | $ 4.15 | |||
Description
General part information
C2433 Series

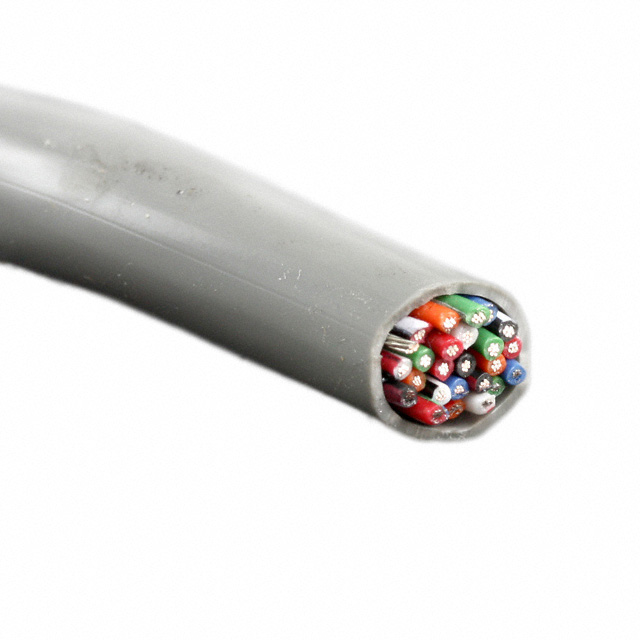

25 Conductor Multi-Conductor Cable Gray 18 AWG 100.0' (30.5m)
