MBR30H30CTG

Active

SCHOTTKY RECTIFIER, 30 V, 15 A, DUAL COMMON CATHODE, TO-220, 3 PINS, 480 MV

Search across all available documentation for this part.

Discrete Semiconductor Products

Active

SCHOTTKY RECTIFIER, 30 V, 15 A, DUAL COMMON CATHODE, TO-220, 3 PINS, 480 MV

Technical Specifications

Parameters and characteristics for this part

Specification	MBR30H30CTG

Current - Average Rectified (Io) (per Diode)	15 A
Current - Reverse Leakage @ Vr	800 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	TO-220-3
Speed	200 mA, 500 ns
Supplier Device Package	TO-220
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V
Voltage - Forward (Vf) (Max) @ If	480 mV

Schottky Barrier Rectifier, H-Series, 30 V, 30 A

Part	Technology	Speed	Mounting Type	Diode Configuration	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io) (per Diode)	Supplier Device Package	Current - Reverse Leakage @ Vr

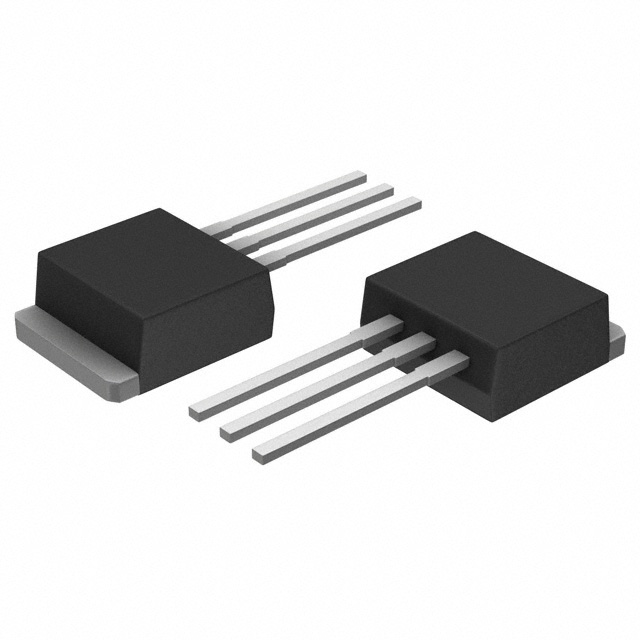

ON Semiconductor MBRB30H30CT-1G	Schottky	200 mA 500 ns	Through Hole	1 Pair Common Cathode	30 V	I2PAK TO-262-3 Long Leads TO-262AA	480 mV	150 °C	-55 °C	15 A	TO-262 (I2PAK)	800 µA
ON Semiconductor MBR30H60CTG	Schottky	200 mA 500 ns	Through Hole	1 Pair Common Cathode	60 V	TO-220-3	620 mV	175 ░C	-55 C	15 A	TO-220	300 µA
ON Semiconductor MBR30H30CTG	Schottky	200 mA 500 ns	Through Hole	1 Pair Common Cathode	30 V	TO-220-3	480 mV	150 °C	-55 °C	15 A	TO-220	800 µA
ON Semiconductor MBRB30H60CTT4G	Schottky	200 mA 500 ns	Surface Mount	1 Pair Common Cathode	60 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	620 mV	175 ░C	-55 C	15 A	D2PAK	300 µA
ON Semiconductor MBRB30H60CT-1H	Schottky	200 mA 500 ns	Through Hole	1 Pair Common Cathode	60 V	I2PAK TO-262-3 Long Leads TO-262AA	620 mV	175 ░C	-55 C	15 A	TO-262 (I2PAK)	300 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enhanced Schottky rectifiers with lower VF, higher surge, and lower IR parameters.
