Connectors, Interconnects

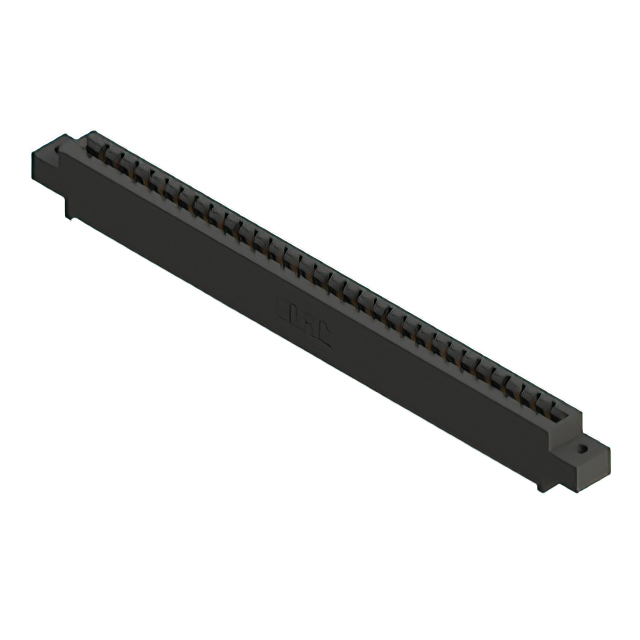

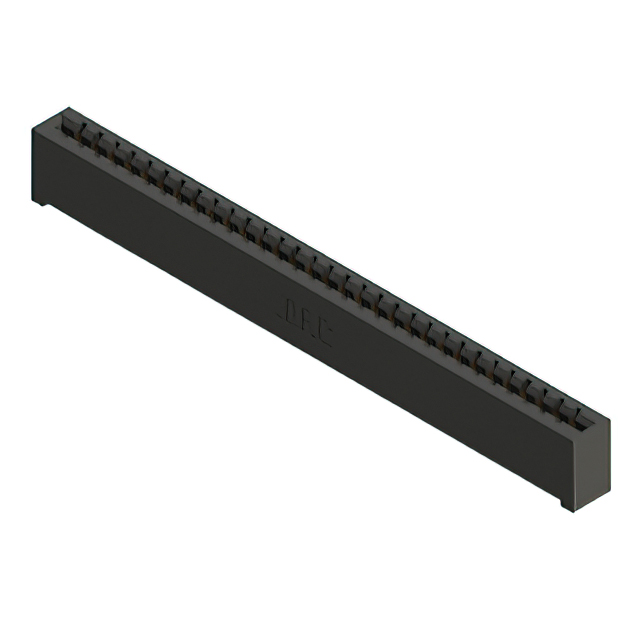

887-031-521-602

Active

EDAC Inc.

CONN EDGE SGL FMALE 31POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

887-031-521-602

Active

EDAC Inc.

CONN EDGE SGL FMALE 31POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-031-521-602

Card Thickness [Max]	0.07 in, 1.78 mm
Card Thickness [Min]	1.37 mm, 0.054 in
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.25 Ám
Contact Finish Thickness	10 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions [custom]	31
Number of Positions/Bay/Row [custom]	31
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 C
Pitch	3.96 mm
Pitch	0.156 in
Read Out	Single
Termination	Solder
Termination Rows	1

887-031 Series

...

Part	Material - Insulation	Termination Rows	Number of Positions/Bay/Row [custom]	Number of Positions [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature [diameter]	Contact Type	Gender	Read Out	Contact Material	Color	Pitch	Pitch	Contact Finish	Card Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Termination	Card Thickness [Max]	Card Thickness [Min]	Flange Feature
EDAC Inc. 887-031-544-602	Polyphenylene Sulfide (PPS)	1	31	31	125 °C	-40 C	3.25 mm	0.128 "	Cantilever	Female	Single	Copper Alloy	Black	3.96 mm	0.156 in	Gold	Non Specified - Single Edge	Through Hole	0.25 Ám	10 Áin	1	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm

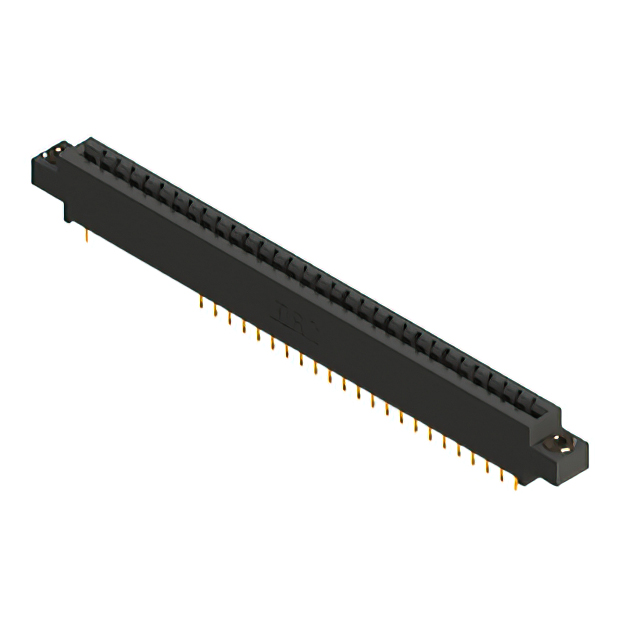

EDAC Inc. 887-031-558-603	Polyphenylene Sulfide (PPS)	1	31	31	125 °C	-40 C	2.95 mm	0.116 "	Cantilever	Female	Single	Copper Alloy	Black	3.96 mm	0.156 in	Gold	Non Specified - Single Edge	Right Angle Through Hole	0.25 Ám	10 Áin	1	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Top Mount Opening
EDAC Inc. 887-031-523-603	Polyphenylene Sulfide (PPS)	1	31	31	125 °C	-40 C	2.95 mm	0.116 "	Cantilever	Female	Single	Copper Alloy	Black	3.96 mm	0.156 in	Gold	Non Specified - Single Edge	Through Hole	0.25 Ám	10 Áin	1	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Top Mount Opening
EDAC Inc. 887-031-521-602	Polyphenylene Sulfide (PPS)	1	31	31	125 °C	-40 C	3.25 mm	0.128 "	Cantilever	Female	Single	Copper Alloy	Black	3.96 mm	0.156 in	Gold	Non Specified - Single Edge	Through Hole	0.25 Ám	10 Áin	1	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 887-031-523-103	Polyphenylene Sulfide (PPS)	1	31	31	125 °C	-40 C	2.95 mm	0.116 "	Cantilever	Female	Single	Copper Alloy	Black	3.96 mm	0.156 in	Gold	Non Specified - Single Edge	Through Hole	0.25 Ám	10 Áin	1	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Floating Bobbin Flush Mount
EDAC Inc. 887-031-523-107	Polyphenylene Sulfide (PPS)	1	31	31	125 °C	-40 C			Cantilever	Female	Single	Copper Alloy	Black	3.96 mm	0.156 in	Gold	Non Specified - Single Edge	Through Hole	0.25 Ám	10 Áin	1	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 887-031-523-101	Polyphenylene Sulfide (PPS)	1	31	31	125 °C	-40 C			Cantilever	Female	Single	Copper Alloy	Black	3.96 mm	0.156 in	Gold	Non Specified - Single Edge	Through Hole	0.25 Ám	10 Áin	1	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 887-031-524-608	Polyphenylene Sulfide (PPS)	1	31	31	125 °C	-40 C			Cantilever	Female	Single	Copper Alloy	Black	3.96 mm	0.156 in	Gold	Non Specified - Single Edge	Through Hole	0.25 Ám	10 Áin	1	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 887-031-524-101	Polyphenylene Sulfide (PPS)	1	31	31	125 °C	-40 C			Cantilever	Female	Single	Copper Alloy	Black	3.96 mm	0.156 in	Gold	Non Specified - Single Edge	Through Hole	0.25 Ám	10 Áin	1	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 887-031-523-108	Polyphenylene Sulfide (PPS)	1	31	31	125 °C	-40 C			Cantilever	Female	Single	Copper Alloy	Black	3.96 mm	0.156 in	Gold	Non Specified - Single Edge	Through Hole	0.25 Ám	10 Áin	1	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	4-40 Flush Mount Threaded Insert Top Opening
