Specification	LHD-05-TS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	11.38 mm
Contact Length - Mating	0.448 in
Contact Length - Post	0.142 in
Contact Length - Post	3.6 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	7 A
Fastening Type	Friction Lock
Insulation Color	White
Insulation Height [z]	10.8 mm
Insulation Height [z]	0.425 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	5
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 C
Overall Contact Length	18.16 mm
Overall Contact Length	0.715 in
Pitch - Mating	3.96 mm
Pitch - Mating	0.156 in
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

LHD-05 Series

Part	Contact Type	Mounting Type	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Current Rating (Amps)	Fastening Type	Insulation Color	Number of Positions	Contact Material	Termination	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Material	Number of Rows	Shrouding	Style	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Connector Type	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
Adam Tech LHD-05-TS	Male Pin	Through Hole	All	18.16 mm	0.715 in	UL94 V-2	7 A	Friction Lock	White	5	Brass	Solder	Square	0.142 in	3.6 mm	11.38 mm	0.448 in	-40 C	105 ░C	Tin	Nylon 6/6 Polyamide (PA66)	1	Shrouded - 1 Wall	Board to Cable/Wire	3.96 mm	0.156 in	10.8 mm	0.425 in	Header
Adam Tech LHD-05-TRB	Male Pin	Right Angle Through Hole	All			UL94 V-2	7 A	Friction Lock	White	5	Brass	Solder	Square			11.4 mm	0.449 in	-40 C	85 °C	Tin	Glass Filled Nylon 6/6 Polyamide (PA66)	1	Shrouded - 1 Wall	Board to Cable/Wire	3.96 mm	0.156 in			Header	7.62 mm	0.3 in	0.126 "	3.2 mm
Adam Tech LHD-05-TRA	Male Pin	Right Angle Through Hole	All			UL94 V-2	7 A	Friction Lock	White	5	Brass	Solder	Square			11.4 mm	0.449 in	-40 C	85 °C		Glass Filled Nylon 6/6 Polyamide (PA66)	1	Shrouded - 1 Wall	Board to Cable/Wire	3.96 mm	0.156 in			Header	7.62 mm	0.3 in	0.126 "	3.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

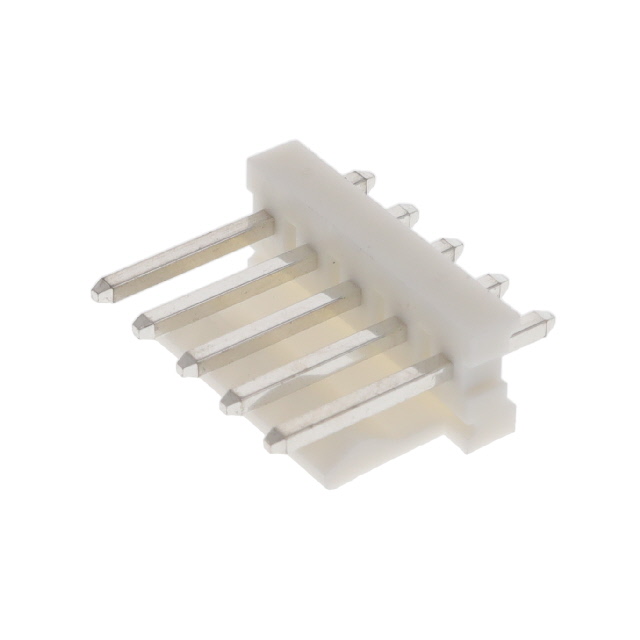

Connector Header Through Hole 5 position 0.156" (3.96mm)
