LHD-05 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 5POS 3.96MM

Part	Contact Type	Mounting Type	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Material Flammability Rating	Current Rating (Amps)	Fastening Type	Insulation Color	Number of Positions	Contact Material	Termination	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Insulation Material	Number of Rows	Shrouding	Style	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Connector Type	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
Adam Tech LHD-05-TS	Male Pin	Through Hole	All	18.16 mm	0.715 in	UL94 V-2	7 A	Friction Lock	White	5	Brass	Solder	Square	0.142 in	3.6 mm	11.38 mm	0.448 in	-40 C	105 ░C	Tin	Nylon 6/6 Polyamide (PA66)	1	Shrouded - 1 Wall	Board to Cable/Wire	3.96 mm	0.156 in	10.8 mm	0.425 in	Header
Adam Tech LHD-05-TRB	Male Pin	Right Angle Through Hole	All			UL94 V-2	7 A	Friction Lock	White	5	Brass	Solder	Square			11.4 mm	0.449 in	-40 C	85 °C	Tin	Glass Filled Nylon 6/6 Polyamide (PA66)	1	Shrouded - 1 Wall	Board to Cable/Wire	3.96 mm	0.156 in			Header	7.62 mm	0.3 in	0.126 "	3.2 mm

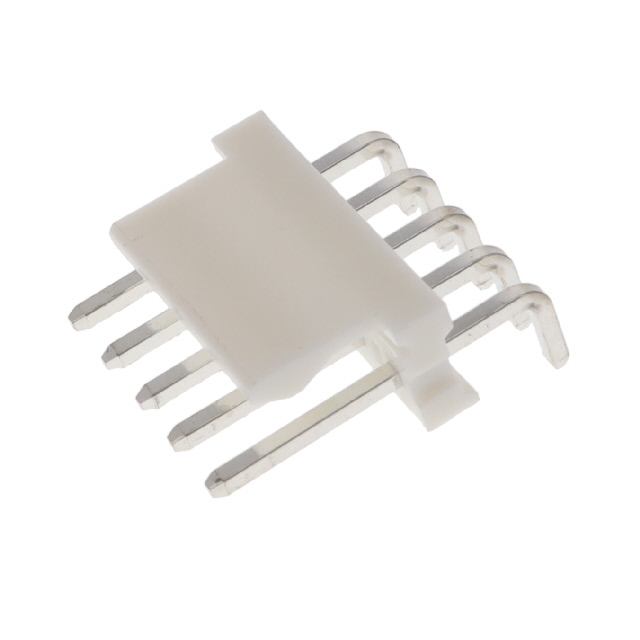

Adam Tech LHD-05-TRA	Male Pin	Right Angle Through Hole	All			UL94 V-2	7 A	Friction Lock	White	5	Brass	Solder	Square			11.4 mm	0.449 in	-40 C	85 °C		Glass Filled Nylon 6/6 Polyamide (PA66)	1	Shrouded - 1 Wall	Board to Cable/Wire	3.96 mm	0.156 in			Header	7.62 mm	0.3 in	0.126 "	3.2 mm
