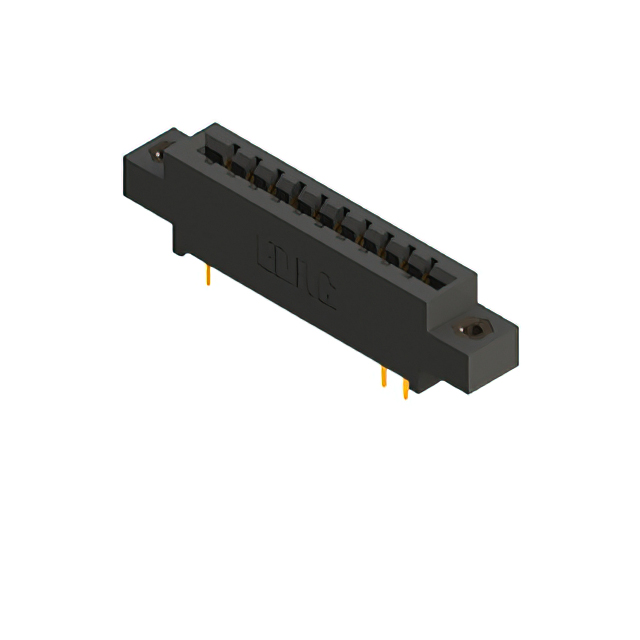

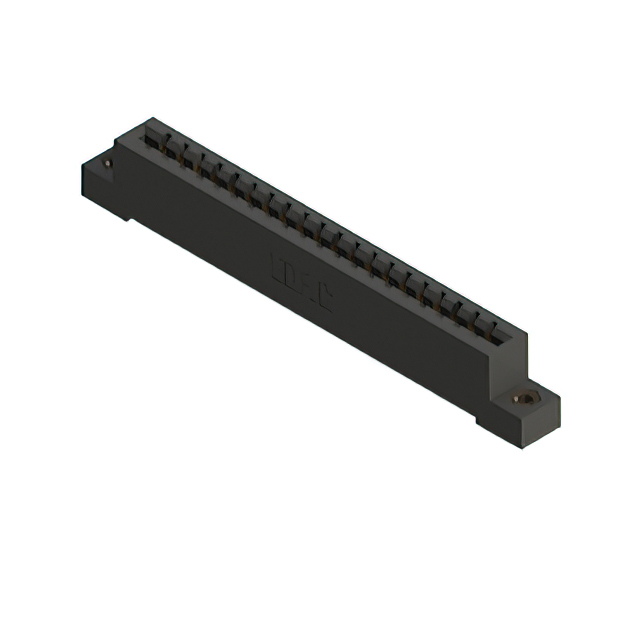

Connectors, Interconnects

887-020-541-807

Active

EDAC Inc.

CONN EDGE DUAL FMALE 20POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

887-020-541-807

Active

EDAC Inc.

CONN EDGE DUAL FMALE 20POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	887-020-541-807

Card Thickness [Max]	0.07 in, 1.78 mm
Card Thickness [Min]	1.37 mm, 0.054 in
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.25 Ám
Contact Finish Thickness	10 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Threaded Insert, Top Mount Opening, M3
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	20
Number of Positions/Bay/Row	10
Number of Rows [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 C
Pitch	3.96 mm
Pitch	0.156 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows [custom]	2

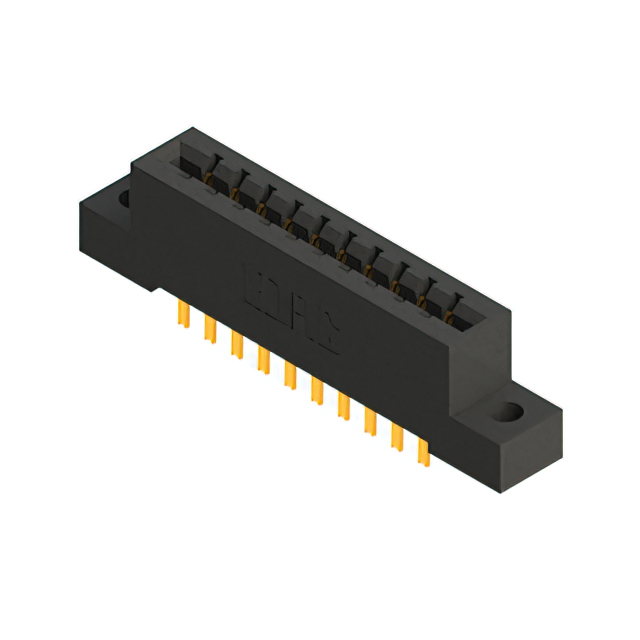

887-020 Series

...

Part	Material - Insulation	Termination Rows [custom]	Contact Material	Mounting Type	Card Type	Termination	Number of Positions/Bay/Row	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Contact Type	Number of Positions	Number of Rows [custom]	Contact Finish	Gender	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Color	Read Out	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 887-020-559-208	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Right Angle Through Hole	Non Specified - Dual Edge	Solder	10	3.96 mm	0.156 in	125 °C	-40 C	4-40 Flush Mount Threaded Insert Top Opening	Cantilever	20	2	Gold	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Black	Dual
EDAC Inc. 887-020-541-607	Polyphenylene Sulfide (PPS)		Copper Alloy	Through Hole	Non Specified - Single Edge	Wire Wrap	20 Bay/Row	3.96 mm	0.156 in	125 °C	-40 C	M3 Threaded Insert Top Mount Opening	Cantilever	20		Gold	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Black	Single	1	1
EDAC Inc. 887-020-542-104	Polyphenylene Sulfide (PPS)		Copper Alloy	Through Hole	Non Specified - Single Edge	Wire Wrap	20 Bay/Row	3.96 mm	0.156 in	125 °C	-40 C	Flush Mount Top Opening Unthreaded	Cantilever	20		Gold	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Black	Single	1	1	0.156 "	3.96 mm
EDAC Inc. 887-020-541-803	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Through Hole	Non Specified - Dual Edge	Wire Wrap	10	3.96 mm	0.156 in	125 °C	-40 C	Floating Bobbin Top Mount Opening	Cantilever	20	2	Gold	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Black	Dual			0.116 "	2.95 mm

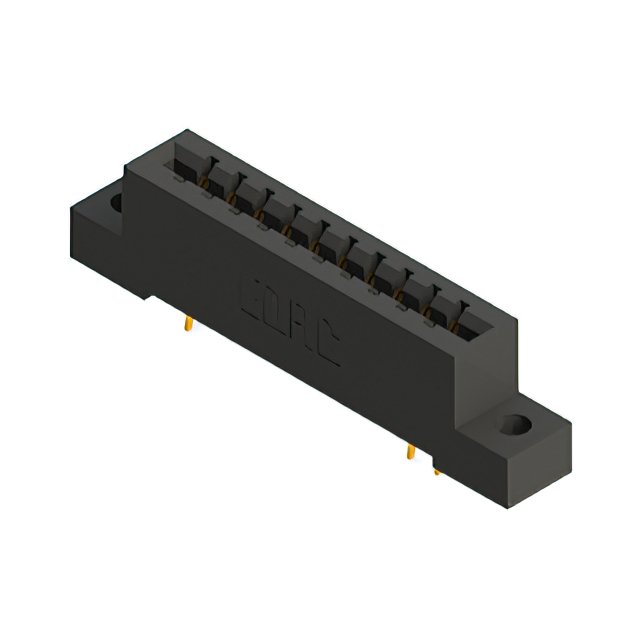

EDAC Inc. 887-020-556-204	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Board Edge Straddle Mount	Non Specified - Dual Edge	Solder	10	3.96 mm	0.156 in	125 °C	-40 C	Flush Mount Top Opening Unthreaded	Cantilever	20	2	Gold	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Black	Dual			0.156 "	3.96 mm	Card Extender

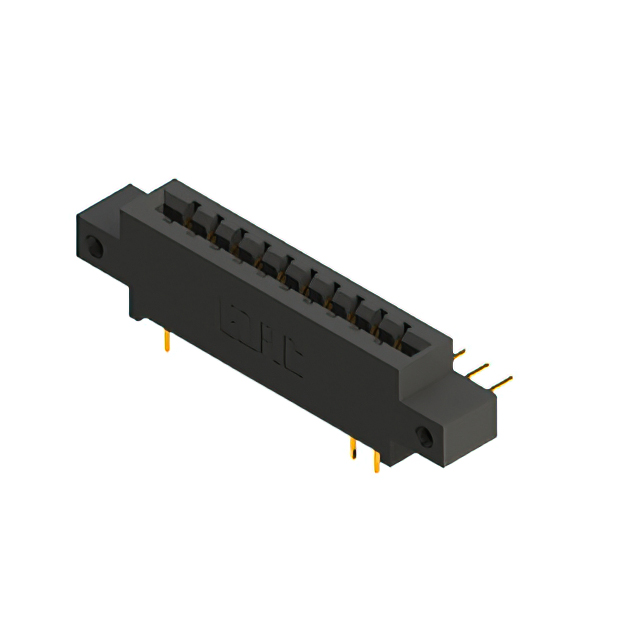

EDAC Inc. 887-020-558-812	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Right Angle Through Hole	Non Specified - Dual Edge	Solder	10	3.96 mm	0.156 in	125 °C	-40 C	Side Mount Opening Unthreaded	Cantilever	20	2	Gold	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Black	Dual			0.128 "	3.25 mm

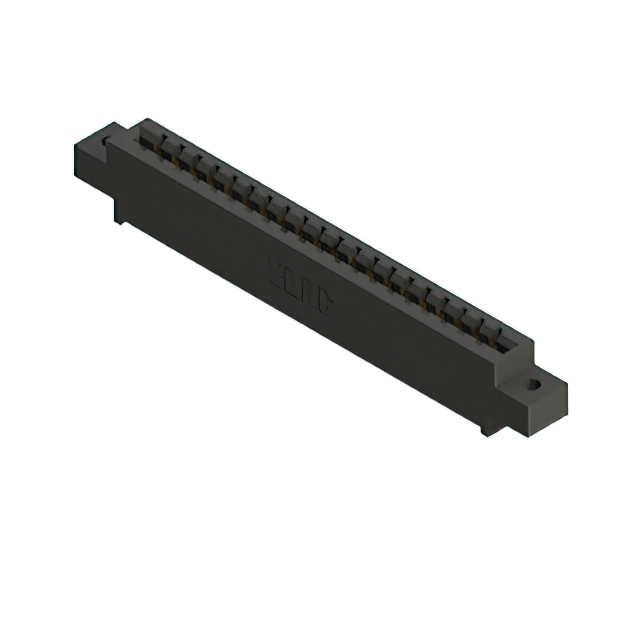

EDAC Inc. 887-020-542-602	Polyphenylene Sulfide (PPS)		Copper Alloy	Through Hole	Non Specified - Single Edge	Wire Wrap	20 Bay/Row	3.96 mm	0.156 in	125 °C	-40 C		Cantilever	20		Gold	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Black	Single	1	1	0.128 "	3.25 mm
EDAC Inc. 887-020-500-112	Polyphenylene Sulfide (PPS)		Copper Alloy	Through Hole	Non Specified - Single Edge	Solder Eyelet(s)	20 Bay/Row	3.96 mm	0.156 in	125 °C	-40 C	Flush Mount Side Opening Unthreaded	Cantilever	20		Gold	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Black	Single	1	1	0.128 "	3.25 mm

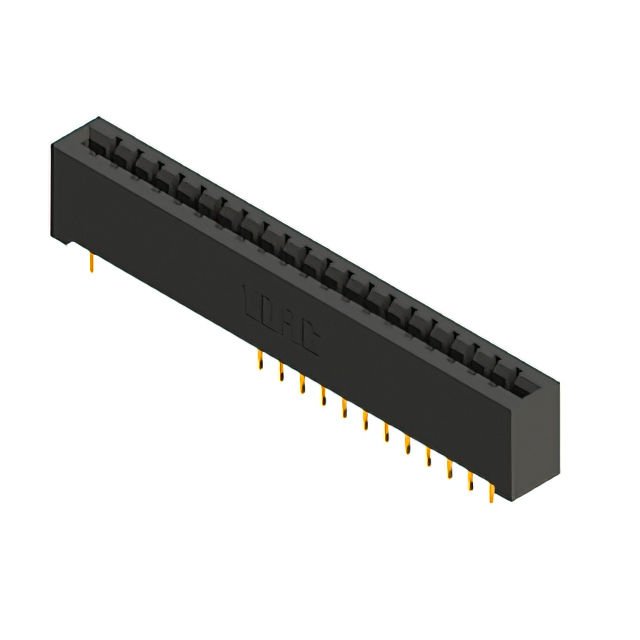

EDAC Inc. 887-020-558-101	Polyphenylene Sulfide (PPS)		Copper Alloy	Right Angle Through Hole	Non Specified - Single Edge	Solder	20 Bay/Row	3.96 mm	0.156 in	125 °C	-40 C		Cantilever	20		Gold	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Black	Single	1	1
EDAC Inc. 887-020-541-807	Polyphenylene Sulfide (PPS)	2	Copper Alloy	Through Hole	Non Specified - Dual Edge	Wire Wrap	10	3.96 mm	0.156 in	125 °C	-40 C	M3 Threaded Insert Top Mount Opening	Cantilever	20	2	Gold	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	0.25 Ám	10 Áin	Black	Dual
