Connectors, Interconnects

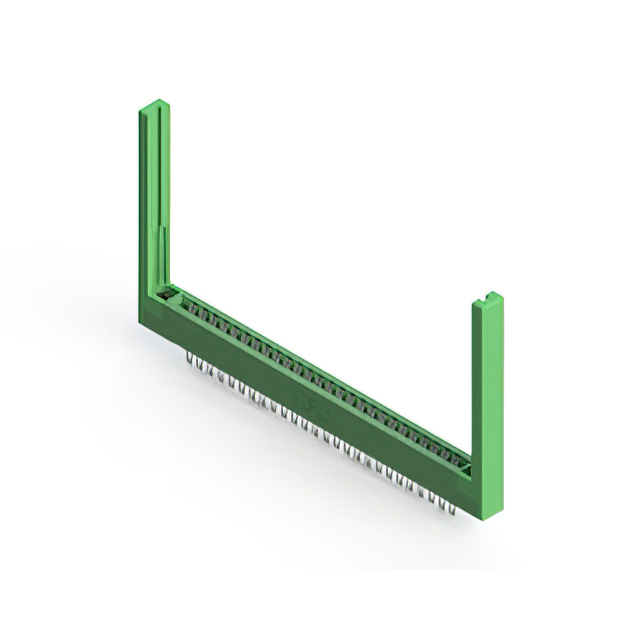

316-026-400-168
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 26 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
Connectors, Interconnects
316-026-400-168
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 26 CONTACTS, PANEL MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 316-026-400-168 |
|---|---|
| Card Thickness [Max] | 0.07 in, 1.78 mm |
| Card Thickness [Min] | 1.37 mm, 0.054 in |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Flush Mount, Top Opening, Threaded Insert, 4-40 |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Panel Mount |
| Number of Positions | 52 |
| Number of Positions/Bay/Row | 26 |
| Number of Rows [custom] | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 C |
| Pitch | 3.96 mm |
| Pitch | 0.156 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
| Part | Material - Insulation | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Contact Material | Contact Finish | Number of Positions | Termination | Contact Type | Read Out | Card Type | Color | Card Thickness [Max] | Card Thickness [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Number of Rows [custom] | Pitch | Pitch | Mounting Type | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 26 | Copper Alloy | Gold | 52 | Solder | Cantilever | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Female | 2 | 3.96 mm | 0.156 in | Through Hole | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 26 | Copper Alloy | Gold | 52 | Solder Eyelet(s) | Cantilever | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Female | 2 | 3.96 mm | 0.156 in | Panel Mount | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 26 | Copper Alloy | Gold | 52 | Solder Eyelet(s) | Cantilever | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Female | 2 | 3.96 mm | 0.156 in | Panel Mount | Flush Mount M3 Threaded Insert Top Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 26 | Copper Alloy | Gold | 52 | Solder | Cantilever | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Female | 2 | 3.96 mm | 0.156 in | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 26 | Copper Alloy | Gold | 52 | Solder | Cantilever | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Female | 2 | 3.96 mm | 0.156 in | Through Hole | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | |
EDAC Inc. | Polyester Thermoplastic | 1 | 26 | Copper Alloy | Tin | 52 | Solder Eyelet(s) | Cantilever | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Female | 2 | 3.96 mm | 0.156 in | Panel Mount | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 26 | Copper Alloy | Gold | 52 | Solder Eyelet(s) | Cantilever | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Female | 2 | 3.96 mm | 0.156 in | Panel Mount | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | |
 EDAC Inc. | Polyester Thermoplastic | 1 | 26 | Copper Alloy | Tin | 52 | Solder | Cantilever | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Female | 2 | 3.96 mm | 0.156 in | Panel Mount Through Hole | Flush Mount M3 Threaded Insert Top Opening | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.25 Ám | 10 Áin | 26 | Copper Alloy | Gold | 52 | Solder | Cantilever | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Female | 2 | 3.96 mm | 0.156 in | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 1 | 26 | Copper Alloy | Tin | 52 | Solder Eyelet(s) | Cantilever | Dual | Non Specified - Dual Edge | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | -40 C | 105 ░C | Female | 2 | 3.96 mm | 0.156 in | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
316-026 Series
52 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
Documents
Technical documentation and resources
