316-026 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 26 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Contact Material	Contact Finish	Number of Positions	Termination	Contact Type	Read Out	Card Type	Color	Card Thickness [Max]	Card Thickness [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Number of Rows [custom]	Pitch	Pitch	Mounting Type	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]

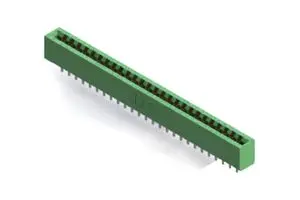

EDAC Inc. 316-026-520-101	Polyester Thermoplastic	1	0.25 Ám	10 Áin	26	Copper Alloy	Gold	52	Solder	Cantilever	Dual	Non Specified - Dual Edge	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Female	2	3.96 mm	0.156 in	Through Hole
EDAC Inc. 316-026-500-158	Polyester Thermoplastic	1	0.25 Ám	10 Áin	26	Copper Alloy	Gold	52	Solder Eyelet(s)	Cantilever	Dual	Non Specified - Dual Edge	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Female	2	3.96 mm	0.156 in	Panel Mount	4-40 Flush Mount Threaded Insert Top Opening	Card Guides
EDAC Inc. 316-026-500-107	Polyester Thermoplastic	1	0.25 Ám	10 Áin	26	Copper Alloy	Gold	52	Solder Eyelet(s)	Cantilever	Dual	Non Specified - Dual Edge	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Female	2	3.96 mm	0.156 in	Panel Mount	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 316-026-520-178	Polyester Thermoplastic	1	0.25 Ám	10 Áin	26	Copper Alloy	Gold	52	Solder	Cantilever	Dual	Non Specified - Dual Edge	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Female	2	3.96 mm	0.156 in	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Card Guides
EDAC Inc. 316-026-521-104	Polyester Thermoplastic	1	0.25 Ám	10 Áin	26	Copper Alloy	Gold	52	Solder	Cantilever	Dual	Non Specified - Dual Edge	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Female	2	3.96 mm	0.156 in	Through Hole	Flush Mount Top Opening Unthreaded		0.156 "	3.96 mm
EDAC Inc. 316-026-400-168	Polyester Thermoplastic	1			26	Copper Alloy	Tin	52	Solder Eyelet(s)	Cantilever	Dual	Non Specified - Dual Edge	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Female	2	3.96 mm	0.156 in	Panel Mount	4-40 Flush Mount Threaded Insert Top Opening	Card Guides
EDAC Inc. 316-026-500-103	Polyester Thermoplastic	1	0.25 Ám	10 Áin	26	Copper Alloy	Gold	52	Solder Eyelet(s)	Cantilever	Dual	Non Specified - Dual Edge	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Female	2	3.96 mm	0.156 in	Panel Mount	Floating Bobbin Flush Mount		0.116 "	2.95 mm

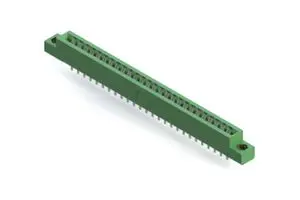

EDAC Inc. 316-026-420-107	Polyester Thermoplastic	1			26	Copper Alloy	Tin	52	Solder	Cantilever	Dual	Non Specified - Dual Edge	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Female	2	3.96 mm	0.156 in	Panel Mount Through Hole	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 316-026-521-158	Polyester Thermoplastic	1	0.25 Ám	10 Áin	26	Copper Alloy	Gold	52	Solder	Cantilever	Dual	Non Specified - Dual Edge	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Female	2	3.96 mm	0.156 in	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Card Guides

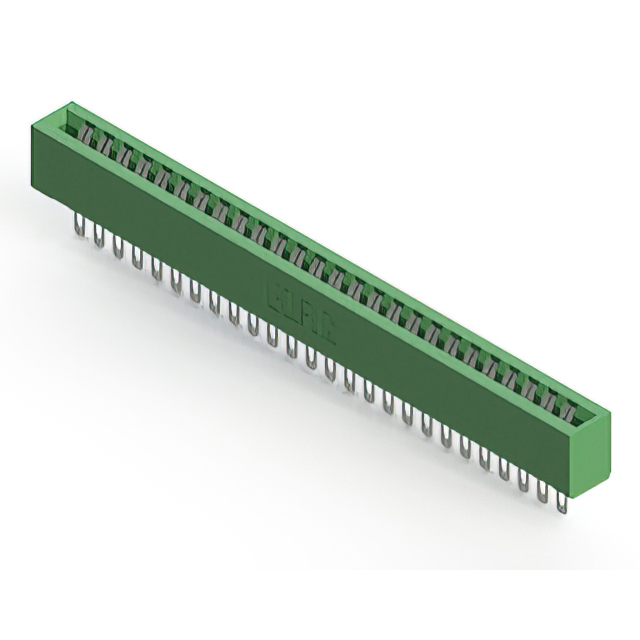

EDAC Inc. 316-026-400-101	Polyester Thermoplastic	1			26	Copper Alloy	Tin	52	Solder Eyelet(s)	Cantilever	Dual	Non Specified - Dual Edge	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	-40 C	105 ░C	Female	2	3.96 mm	0.156 in	Free Hanging (In-Line)
