Connectors, Interconnects
8195
ActiveKeystone Electronics

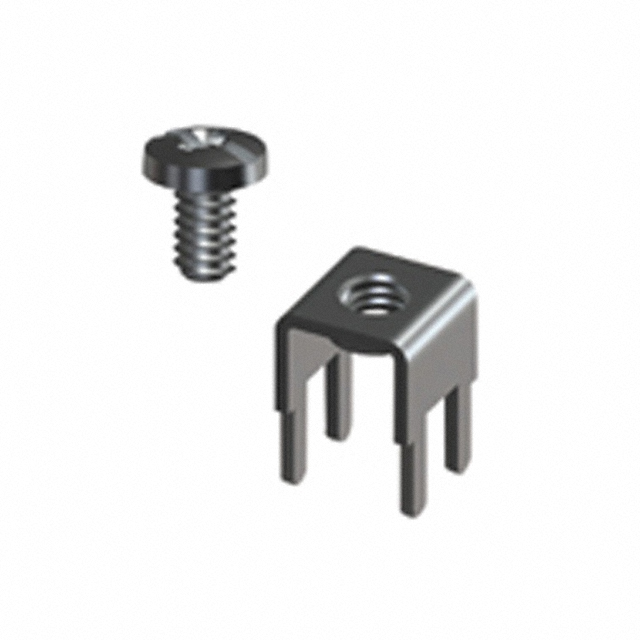

PC SCREW TERMINAL 14-22AWG BRASS 7.87MM MATTE TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Connectors, Interconnects
8195
ActiveKeystone Electronics
PC SCREW TERMINAL 14-22AWG BRASS 7.87MM MATTE TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8195 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Current Rating | 15 A |
| Features | Low Profile |
| Mounting Type | Through Hole |
| Number of Pins | 4 |
| Screw Material | Brass |
| Screw Size | 6-32 |
| Terminal Type | Power Tap, Screw Terminal |
| Termination | Solder |
| Part | Contact Finish | Contact Material | Screw Material | Terminal Type | Screw Size | Termination | Current Rating | Features | Mounting Type | Number of Pins |
|---|---|---|---|---|---|---|---|---|---|---|
 Keystone Electronics | Tin | Brass | Brass | Power Tap Screw Terminal | 6-32 | Solder | 15 A | Low Profile | Through Hole | 4 |
 Keystone Electronics | Tin | Brass | Brass | Power Tap Screw Terminal | 6-32 | Solder | 15 A | Low Profile | Through Hole | 4 |
Keystone Electronics | Tin | Brass | Brass | Power Tap Screw Terminal | 6-32 | Solder | 15 A | Low Profile | Through Hole | 4 |
Keystone Electronics | Tin | Brass | Brass | Power Tap Screw Terminal | 6-32 | Solder | 15 A | Low Profile | Through Hole | 4 |
Keystone Electronics | Tin | Brass | Brass | Power Tap Screw Terminal | 6-32 | Solder | 15 A | Low Profile | Through Hole | 4 |
 Keystone Electronics | Tin | Brass | Steel | Power Tap Screw Terminal | 6-32 | Snap-Fit | 15 A | Through Hole | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
CAD
3D models and CAD resources for this part
Description
General part information
8195 Series
4 Pin Screw Terminal, Power Tap 6-32 Through Hole
Documents
Technical documentation and resources
