Technical Specifications
Parameters and characteristics for this part
| Specification | 8195-5 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Current Rating (Amps) | 15 A |
| Features | Low Profile |
| Mounting Type | Through Hole |
| Number of Pins | 4 |
| Screw Finish | Nickel |
| Screw Material | Brass |
| Screw Size | 6-32 |
| Terminal Type | Screw Terminal, Power Tap |
| Termination | Solder |
| Part | Contact Finish | Contact Material | Screw Finish | Screw Material | Terminal Type | Screw Size | Termination | Current Rating (Amps) | Features | Mounting Type | Number of Pins |
|---|---|---|---|---|---|---|---|---|---|---|---|
Keystone Electronics | Tin | Brass | Nickel | Brass | Power Tap Screw Terminal | 6-32 | Solder | 15 A | Low Profile | Through Hole | 4 |
 Keystone Electronics | Tin | Brass | Nickel | Brass | Power Tap Screw Terminal | 6-32 | Solder | 15 A | Low Profile | Through Hole | 4 |
Keystone Electronics | Tin | Brass | Nickel | Brass | Power Tap Screw Terminal | 6-32 | Solder | 15 A | Low Profile | Through Hole | 4 |
Keystone Electronics | Tin | Brass | Nickel | Brass | Power Tap Screw Terminal | 6-32 | Solder | 15 A | Low Profile | Through Hole | 4 |
 Keystone Electronics | Tin | Brass | Nickel | Brass | Power Tap Screw Terminal | 6-32 | Solder | 15 A | Low Profile | Through Hole | 4 |
 Keystone Electronics | Tin | Brass | Nickel | Steel | Power Tap Screw Terminal | 6-32 | Snap-Fit | 15 A | Through Hole | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | N/A | 0 | $ 0.33 | |
| 4000 | $ 0.33 | |||
Description
General part information

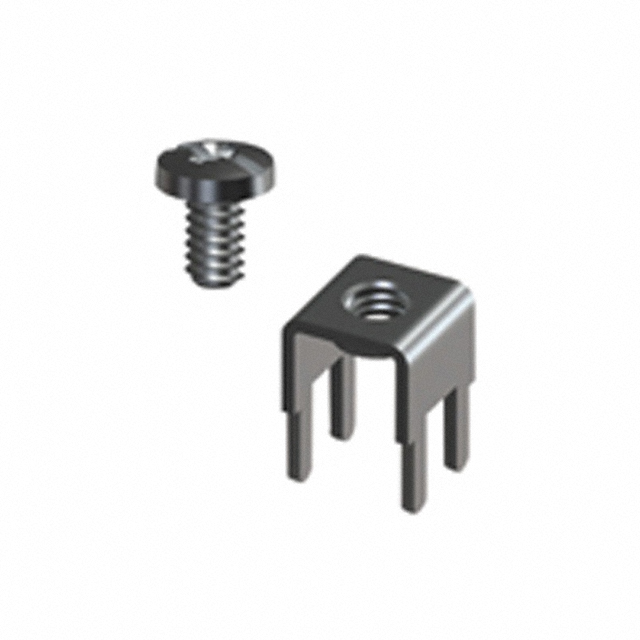

8195 Series
4 Pin Screw Terminal, Power Tap 6-32 Through Hole
