AA1-B0-14-650-Q22-MJ

Active

Carling Technologies

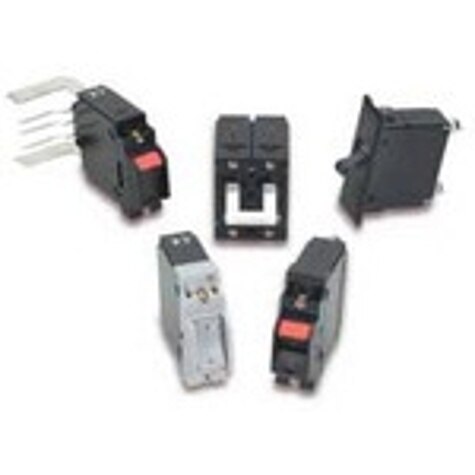

CIRCUIT BREAKERS AA1B014650Q22MJ

Deep-Dive with AI

Search across all available documentation for this part.

Circuit Protection

AA1-B0-14-650-Q22-MJ

Active

Carling Technologies

CIRCUIT BREAKERS AA1B014650Q22MJ

Deep-Dive with AI

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AA1-B0-14-650-Q22-MJ

Actuator Type	Lever
Approval Agency	UL489A, CCC, TUV
Breaker Type	Magnetic (Hydraulic Delay)
Current Rating (Amps)	50 A
Illumination	None
Number of Poles	1
Voltage Rating - AC	277 V
Voltage Rating - DC	80 V

A Series

Non-Isolated DC/DC Converters A-Series DC to HVDC Converter, Single output (Unipolar), +24V Input, , -6000V DC HVout, 30W, Thru-hole mount, Regulated, I10 Interface 0 to +10 VDC Monitors/Controls, Mu Metal shield, Heatsink

Part	Actuator Type	Illumination	Voltage Rating - AC	Voltage Rating - DC	Current Rating (Amps)	Approval Agency	Number of Poles	Breaker Type
Carling Technologies AG1-B0-14-625-311-C	Rocker	None	277 V	80 V	25 A	CCC CSA UL	1	Magnetic (Hydraulic Delay)
Carling Technologies AA2-B0-34-615-4B1-I	Lever	None	250 V	65 VDC	15 A	CCC CSA UL1077 UL1500	2	Magnetic (Hydraulic Delay)
Carling Technologies AC2-B2-46-630-1A1-C	Rocker	None	277 V	80 V	30 A	CCC CSA UL	2	Magnetic (Hydraulic Delay)
Carling Technologies AA2-B0-24-620-1B1-C	Lever	None	277 V	80 V	20 A	CCC CSA UL	2	Magnetic (Hydraulic Delay)
Carling Technologies AA1-B0-14-650-Q22-MJ	Lever	None	277 V	80 V	50 A	CCC TUV UL489A	1	Magnetic (Hydraulic Delay)
Carling Technologies AF1-B0-34-630-331-C	Rocker	None	277 V	80 V	30 A	CCC CSA UL	1	Magnetic (Hydraulic Delay)
Carling Technologies AA1-B0-34-645-5B1-C	Lever	None	277 V	80 V	45 A	CCC CSA UL	1	Magnetic (Hydraulic Delay)
Carling Technologies AD2-B0-34-625-5F2-C	Rocker	None	277 V	80 V	25 A	CCC CSA UL	2	Magnetic (Hydraulic Delay)
Carling Technologies AA2-B0-10-625-1B1-C	Lever	None	277 V	80 V	25 A	CCC CSA UL	2	Magnetic (Hydraulic Delay)
Carling Technologies AB2-A0-03-630-2D1-C
