Circuit Protection

AG1-B0-14-625-311-C

Active

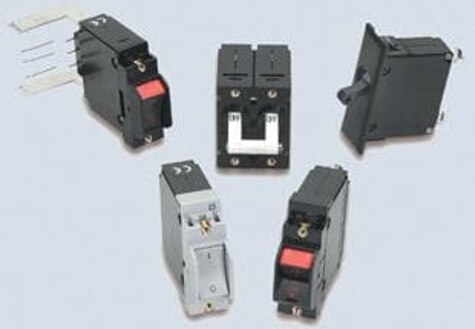

CIRCUIT BREAKERS AG1B014625311C

Search across all available documentation for this part.

Circuit Protection

Active

CIRCUIT BREAKERS AG1B014625311C

Technical Specifications

Parameters and characteristics for this part

...

Part	Current Rating (Amps)	Voltage Rating - DC	Approval Agency	Actuator Type	Mounting Type	Breaker Type	Illumination	Voltage Rating - AC	Number of Poles
Carling Technologies AA1-B0-34-610-3G1-C	10 A	80 V	CCC CSA UL	Lever	Panel Mount	Magnetic (Hydraulic Delay)	None	277 V	1
Carling Technologies AC2-B0-26-620-131-C	20 A	80 V	CCC CSA UL	Rocker	Panel Mount	Magnetic (Hydraulic Delay)	None	277 V	2
Carling Technologies AA1-B0-16-620-1G7-I	20 A	65 VDC	CCC CSA UL1077 UL1500	Lever	Panel Mount Snap-In	Magnetic (Hydraulic Delay)	None	277 V	1
Carling Technologies AL1-B0-34-650-521-C	50 A	80 V	CCC CSA UL	Rocker	Panel Mount	Magnetic (Hydraulic Delay)	None	277 V	1
Carling Technologies AF1-B0-34-610-531-I	10 A	65 VDC	CCC CSA UL1077 UL1500	Rocker	Panel Mount	Magnetic (Hydraulic Delay)	None	250 V	1
Carling Technologies AK1-B0-24-450-1D1-C	5 A	80 V	CCC CSA UL	Rocker	Panel Mount	Magnetic (Hydraulic Delay)	None	277 V	1
Carling Technologies AG1-B0-14-625-311-C	25 A	80 V	CCC CSA UL	Rocker	Panel Mount	Magnetic (Hydraulic Delay)	None	277 V	1
Carling Technologies AA2-B0-34-615-4B1-I	15 A	65 VDC	CCC CSA UL1077 UL1500	Lever	Panel Mount	Magnetic (Hydraulic Delay)	None	250 V	2
Carling Technologies AA1-B0-34-630-5D1-I	30 A	65 VDC	CCC CSA UL1077 UL1500	Lever	Panel Mount	Magnetic (Hydraulic Delay)	None	250 V	1
Carling Technologies AA2-B0-34-630-5G1-C	30 A	80 V	CCC CSA UL	Lever	Panel Mount	Magnetic (Hydraulic Delay)	None	277 V	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 0.00

General part information

Circuit Breaker Magnetic (Hydraulic Delay) 25A 277 V AC 80 V DC Rocker Panel Mount

Technical documentation and resources
