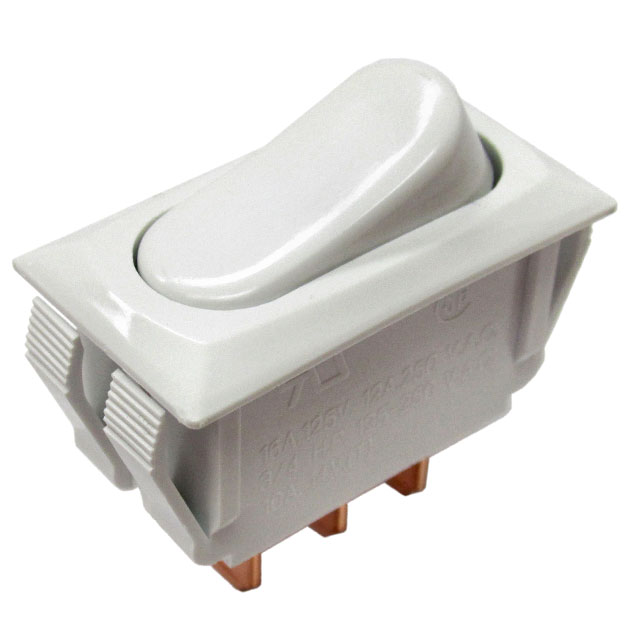

GRS-2012-2504
Switches

GRS-2012-2504

Active
CW Industries

ROCKER SWITCHES SPDT 16A GLOSS WHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
GRS-2012-2504
Switches

GRS-2012-2504

Active
CW Industries

ROCKER SWITCHES SPDT 16A GLOSS WHT

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationGRS-2012-2504
Actuator MarkingNo Marking
Actuator TypeConcave (Curved)
CircuitSPDT
Color - Actuator/CapWhite
Current Rating (Amps)16 A
Electrical Life25000 Steps
Mechanical Life100000 Cycles
Mounting TypePanel Mount, Snap-In
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-20 ░C
Panel Cutout Dimensions [x]28.58 mm
Panel Cutout Dimensions [y]13.97 mm
Switch FunctionOn-On
Termination StyleQuick Connect - 0.250" (6.3mm)
Voltage Rating - AC125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyN/A 0$ 0.00
MouserN/A 1$ 1.21
10$ 1.19
100$ 0.81
500$ 0.68
2500$ 0.67
5000$ 0.66
10000$ 0.65

Description

General part information

GRS-2012 Series

Rocker Switch SPDT 16A (AC) 125 V Panel Mount, Snap-In
