GRS-2012 Series
Manufacturer: CW Industries
Beta
⌘K

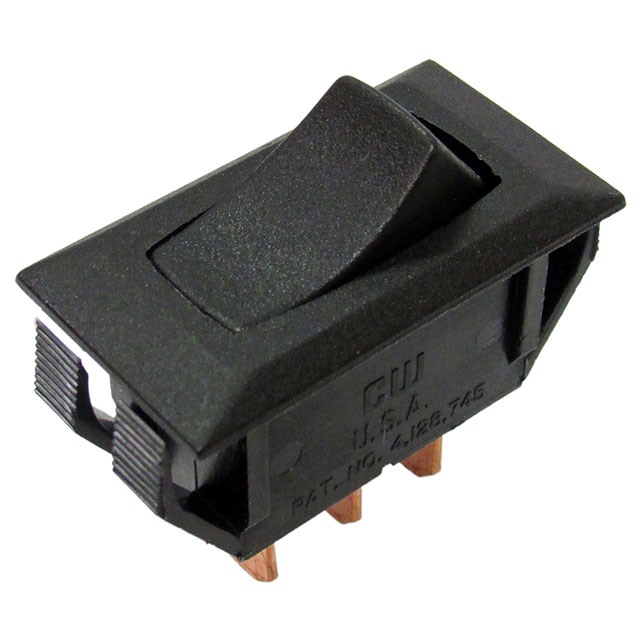

SWITCH ROCKER SPDT 13A 125V
| Part | Electrical Life | Mechanical Life | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Current Rating (Amps) | Termination Style | Color - Actuator/Cap | Actuator Type | Mounting Type | Features | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Actuator Marking | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 25000 Steps | 25000 Steps | On-Mom | -20 ░C | 105 ░C | SPDT | 13 A | Quick Connect - 0.250" (6.3mm) | Black | Concave (Curved) | Panel Mount Snap-In | Polarized Terminal Barriers | 12.19 mm | 27.23 mm | No Marking | 125 V |
 CW Industries | 25000 Steps | 25000 Steps | On-On | -20 ░C | 105 ░C | SPDT | 16 A | Quick Connect - 0.250" (6.3mm) | Black | Concave (Curved) | Panel Mount Snap-In | Polarized Terminal Barriers | 12.19 mm | 27.23 mm | No Marking | 125 V |
 CW Industries | On-On | -20 ░C | 105 ░C | SPDT | 16 A | Quick Connect - 0.250" (6.3mm) | Brown | Concave (Curved) | Panel Mount Snap-In | Polarized | 13.97 mm | 28.58 mm | No Marking | 125 V | ||

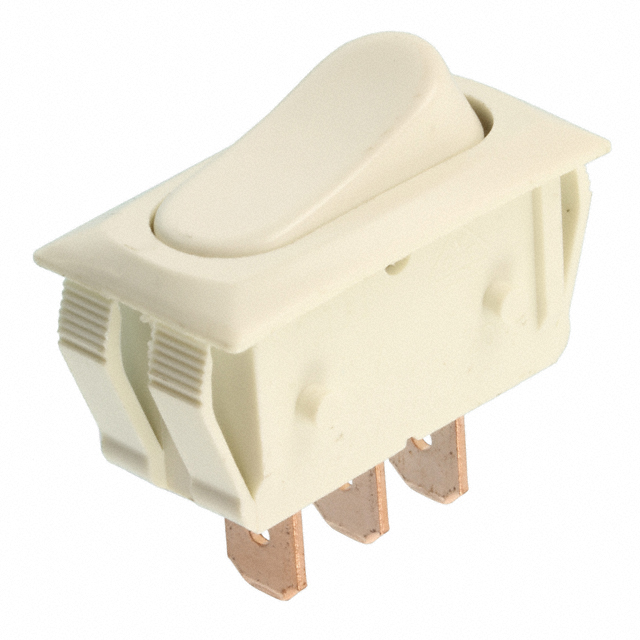

 CW Industries | 25000 Steps | 100000 Cycles | On-On | -20 ░C | 105 ░C | SPDT | 16 A | Quick Connect - 0.250" (6.3mm) | White | Concave (Curved) | Panel Mount Snap-In | 13.97 mm | 28.58 mm | No Marking | 125 V | |
 CW Industries | 25000 Steps | 25000 Steps | On-Mom | -20 ░C | 105 ░C | SPDT | 13 A | Quick Connect - 0.250" (6.3mm) | Black | Concave (Curved) | Panel Mount Snap-In | Polarized | 12.19 mm | 27.23 mm | No Marking | 125 V |
 CW Industries | 25000 Steps | 25000 Steps | On-Mom | -20 ░C | 105 ░C | SPDT | 13 A | Quick Connect - 0.250" (6.3mm) | White | Concave (Curved) | Panel Mount Snap-In | 13.97 mm | 28.58 mm | No Marking | 125 V | |
 CW Industries | 25000 Steps | 100000 Cycles | On-On | -20 ░C | 105 ░C | SPDT | 16 A | Quick Connect - 0.250" (6.3mm) | Black | Concave (Curved) | Panel Mount Snap-In | 13.97 mm | 28.58 mm | No Marking | 125 V | |
 CW Industries | 25000 Steps | 25000 Steps | On-On | -20 ░C | 105 ░C | SPDT | 8 A | Quick Connect - 0.250" (6.3mm) | Black | Concave (Curved) | Panel Mount Snap-In | 13.97 mm | 28.58 mm | No Marking | 125 V | |
 CW Industries | 25000 Steps | 100000 Cycles | On-On | -20 ░C | 105 ░C | SPDT | 16 A | Quick Connect - 0.250" (6.3mm) | Black | Concave (Curved) | Panel Mount Snap-In | 13.97 mm | 28.58 mm | O I | 125 V | |
 CW Industries | 25000 Steps | 100000 Cycles | On-On | -20 ░C | 105 ░C | SPDT | 16 A | Quick Connect - 0.250" (6.3mm) | Red | Concave (Curved) | Panel Mount Snap-In | 13.97 mm | 28.58 mm | No Marking | 125 V |
