Connectors, Interconnects
306-038-521-107
ActiveEDAC Inc.

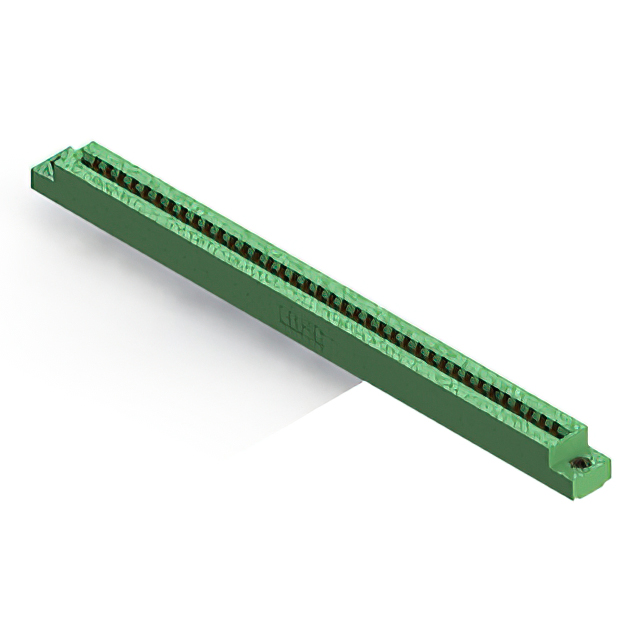

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 38 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
Connectors, Interconnects
306-038-521-107
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 38 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 306-038-521-107 |
|---|---|
| Card Thickness [Max] | 0.07 in, 1.78 mm |
| Card Thickness [Min] | 1.37 mm, 0.054 in |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.25 Ám |
| Contact Finish Thickness | 10 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Threaded Insert, M3, Top Opening, Flush Mount |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 76 |
| Number of Positions/Bay/Row [custom] | 38 |
| Number of Rows [custom] | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 C |
| Pitch | 3.96 mm |
| Pitch | 0.156 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
| Part | Termination Rows | Material - Insulation | Number of Positions/Bay/Row [custom] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Read Out | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Card Type | Number of Rows [custom] | Contact Material | Contact Finish | Color | Card Thickness [Max] | Card Thickness [Min] | Pitch | Pitch | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Type | Gender | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 38 | Panel Mount | 0.25 Ám | 10 Áin | Solder Eyelet(s) | Dual | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Dual Edge | 2 | Copper Alloy | Gold | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | -40 C | 105 ░C | 76 | Cantilever | Female | |
 EDAC Inc. | 1 | Polyester Thermoplastic | 38 | Panel Mount | 0.25 Ám | 10 Áin | Solder Eyelet(s) | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 2 | Copper Alloy | Gold | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | -40 C | 105 ░C | 76 | Cantilever | Female | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 38 | Panel Mount | 0.25 Ám | 10 Áin | Solder Eyelet(s) | Dual | Flush Mount Top Opening Unthreaded | 0.128 " | 3.25 mm | Non Specified - Dual Edge | 2 | Copper Alloy | Gold | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | -40 C | 105 ░C | 76 | Cantilever | Female | |
EDAC Inc. | 1 | Polyester Thermoplastic | 38 | Panel Mount Through Hole | 0.25 Ám | 10 Áin | Solder | Dual | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | 2 | Copper Alloy | Gold | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | -40 C | 105 ░C | 76 | Cantilever | Female | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 38 | Panel Mount Through Hole | 0.25 Ám | 10 Áin | Solder | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 2 | Copper Alloy | Gold | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | -40 C | 105 ░C | 76 | Cantilever | Female | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 38 | Panel Mount Through Hole | Solder | Dual | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | Non Specified - Dual Edge | 2 | Copper Alloy | Tin | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | -40 C | 105 ░C | 76 | Cantilever | Female | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 38 | Free Hanging (In-Line) | 0.25 Ám | 10 Áin | Solder Eyelet(s) | Dual | Non Specified - Dual Edge | 2 | Copper Alloy | Gold | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | -40 C | 105 ░C | 76 | Cantilever | Female | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | 38 | Panel Mount Through Hole | 0.25 Ám | 10 Áin | Solder | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 2 | Copper Alloy | Gold | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | -40 C | 105 ░C | 76 | Cantilever | Female | Card Guides | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | 38 | Panel Mount | 0.25 Ám | 10 Áin | Solder Eyelet(s) | Dual | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | 2 | Copper Alloy | Gold | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | -40 C | 105 ░C | 76 | Cantilever | Female | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | 38 | Free Hanging (In-Line) | Solder Eyelet(s) | Dual | Non Specified - Dual Edge | 2 | Copper Alloy | Tin | Green | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 3.96 mm | 0.156 in | -40 C | 105 ░C | 76 | Cantilever | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
306-038 Series
76 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
