306-038 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 76POS 0.156

Part	Termination Rows	Material - Insulation	Number of Positions/Bay/Row [custom]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Read Out	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Card Type	Number of Rows [custom]	Contact Material	Contact Finish	Color	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Type	Gender	Features
EDAC Inc. 306-038-500-112	1	Polyester Thermoplastic	38	Panel Mount	0.25 Ám	10 Áin	Solder Eyelet(s)	Dual	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Dual Edge	2	Copper Alloy	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	76	Cantilever	Female
EDAC Inc. 306-038-500-158	1	Polyester Thermoplastic	38	Panel Mount	0.25 Ám	10 Áin	Solder Eyelet(s)	Dual	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	2	Copper Alloy	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	76	Cantilever	Female	Card Guides

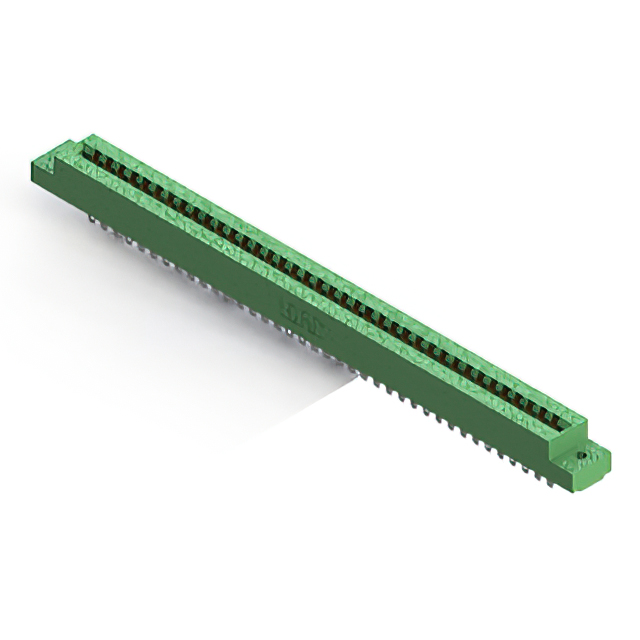

EDAC Inc. 306-038-500-102	1	Polyester Thermoplastic	38	Panel Mount	0.25 Ám	10 Áin	Solder Eyelet(s)	Dual	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Non Specified - Dual Edge	2	Copper Alloy	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	76	Cantilever	Female
EDAC Inc. 306-038-521-107	1	Polyester Thermoplastic	38	Panel Mount Through Hole	0.25 Ám	10 Áin	Solder	Dual	Flush Mount M3 Threaded Insert Top Opening			Non Specified - Dual Edge	2	Copper Alloy	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	76	Cantilever	Female
EDAC Inc. 306-038-521-108	1	Polyester Thermoplastic	38	Panel Mount Through Hole	0.25 Ám	10 Áin	Solder	Dual	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	2	Copper Alloy	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	76	Cantilever	Female
EDAC Inc. 306-038-420-103	1	Polyester Thermoplastic	38	Panel Mount Through Hole			Solder	Dual	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Non Specified - Dual Edge	2	Copper Alloy	Tin	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	76	Cantilever	Female
EDAC Inc. 306-038-500-101	1	Polyester Thermoplastic	38	Free Hanging (In-Line)	0.25 Ám	10 Áin	Solder Eyelet(s)	Dual				Non Specified - Dual Edge	2	Copper Alloy	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	76	Cantilever	Female
EDAC Inc. 306-038-520-178	1	Polyester Thermoplastic	38	Panel Mount Through Hole	0.25 Ám	10 Áin	Solder	Dual	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	2	Copper Alloy	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	76	Cantilever	Female	Card Guides
EDAC Inc. 306-038-500-108	1	Polyester Thermoplastic	38	Panel Mount	0.25 Ám	10 Áin	Solder Eyelet(s)	Dual	4-40 Flush Mount Threaded Insert Top Opening			Non Specified - Dual Edge	2	Copper Alloy	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	76	Cantilever	Female
EDAC Inc. 306-038-400-101	1	Polyester Thermoplastic	38	Free Hanging (In-Line)			Solder Eyelet(s)	Dual				Non Specified - Dual Edge	2	Copper Alloy	Tin	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	3.96 mm	0.156 in	-40 C	105 ░C	76	Cantilever	Female
