Connectors, Interconnects

681M7W2203L141

Active

NorComp Inc.

CONN D-SUB RCPT 7P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

681M7W2203L141

Active

NorComp Inc.

CONN D-SUB RCPT 7P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	681M7W2203L141

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Board Lock
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	7
Number of Positions [custom]	5
Number of Positions [custom]	2
Number of Rows [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 C
Shell Material, Finish	Steel, Nickel Plated
Shell Size, Connector Layout [custom]	A, DA
Shell Size, Connector Layout [custom]	2
Shell Size, Connector Layout [custom]	7W2
Termination	Solder
Voltage Rating	250 V

681M7W2 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Color	Contact Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions	Number of Positions [custom]	Number of Positions [custom]	Termination	Contact Type	Connector Style	Contact Finish	Number of Rows [custom]	Shell Material, Finish	Material Flammability Rating	Contact Finish Thickness	Features	Connector Type	Flange Feature	Mounting Type	Current Rating (Amps)	Voltage Rating

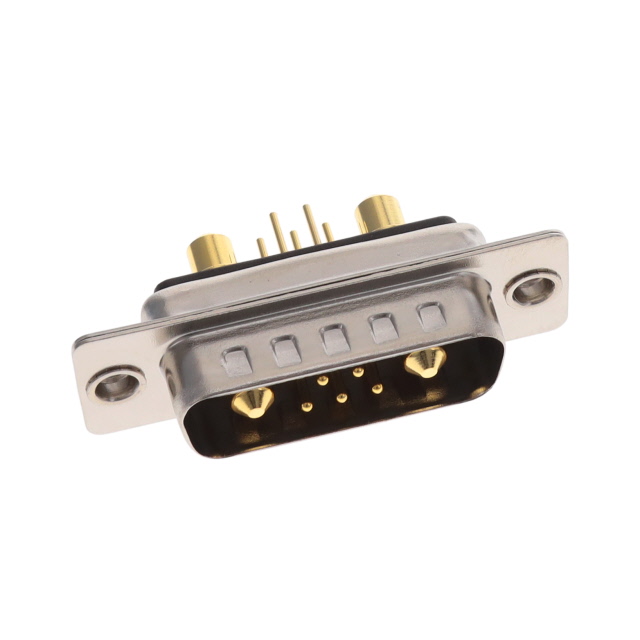

NorComp Inc. 681M7W2103L011	-55 C	125 °C	Polybutylene Terephthalate (PBT)	Black	Copper Alloy	A DA	2	7W2	7	5	2	Solder	Signal and Power	Combo D-Sub	Gold	2	Nickel Plated Steel	UL94 V-0	Flash	Grounding Indents	Plug Male Pins	Board Side (4-40)	Panel Mount Through Hole	5 A 40 A
NorComp Inc. 681M7W2203L141	-55 C	125 °C	Polybutylene Terephthalate (PBT)	Black	Copper Alloy	A DA	2	7W2	7	5	2	Solder	Signal and Power	Combo D-Sub	Gold	2	Nickel Plated Steel	UL94 V-0	Flash	Board Lock	Receptacle Female Sockets	Board Side (4-40)	Panel Mount Through Hole	5 A 40 A	250 V

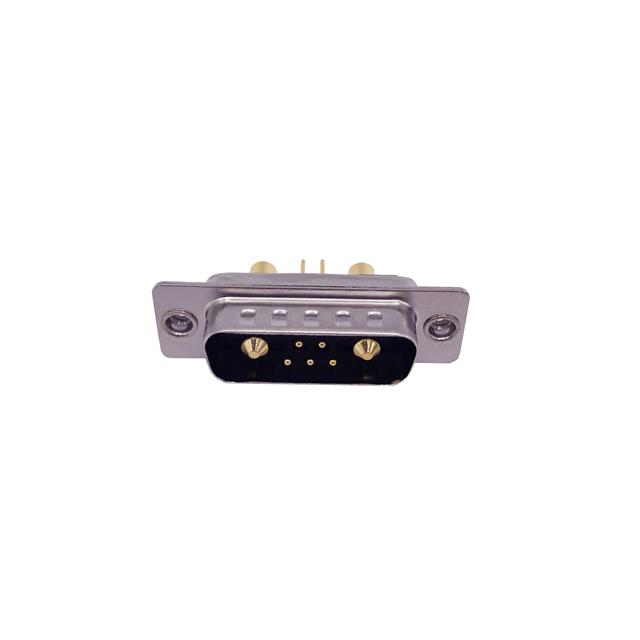

NorComp Inc. 681M7W2103L101	-55 C	125 °C	Polybutylene Terephthalate (PBT)	Black	Copper Alloy	A DA	2	7W2	7	5	2	Solder	Signal and Power	Combo D-Sub	Gold	2	Nickel Plated Steel	UL94 V-0	Flash	Grounding Indents	Plug Male Pins	Housing/Shell (Unthreaded)	Panel Mount Through Hole	5 A 40 A	250 V

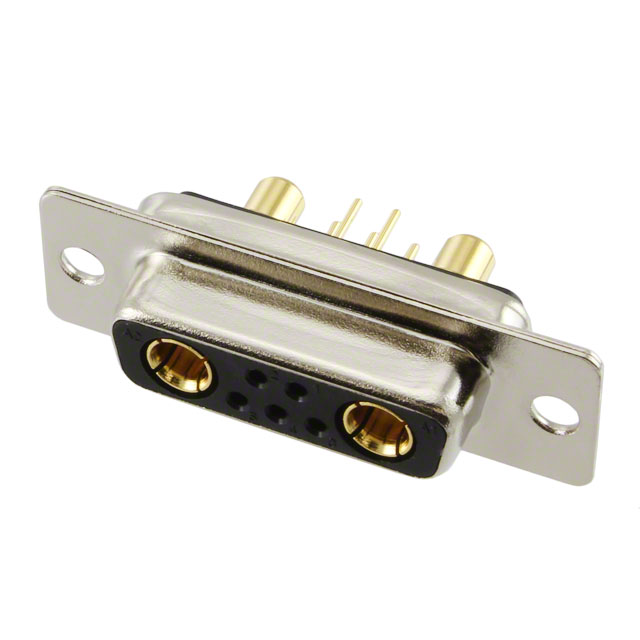

NorComp Inc. 681M7W2203L001	-55 C	125 °C	Polybutylene Terephthalate (PBT)	Black	Copper Alloy	A DA	2	7W2	7	5	2	Solder	Signal and Power	Combo D-Sub	Gold	2	Nickel Plated Steel	UL94 V-0	Flash		Receptacle Female Sockets	Housing/Shell (Unthreaded)	Panel Mount Through Hole	5 A 40 A
NorComp Inc. 681M7W2103L001	-55 C	155 C	Polybutylene Terephthalate (PBT)	Black	Copper Alloy	A DA	2	7W2	7	5	2	Solder	Signal and Power	Combo D-Sub	Gold	2	Nickel Plated Steel	UL94 V-0	Flash	Grounding Indents	Plug Male Pins	Housing/Shell (Unthreaded)	Panel Mount Through Hole	5 A 40 A

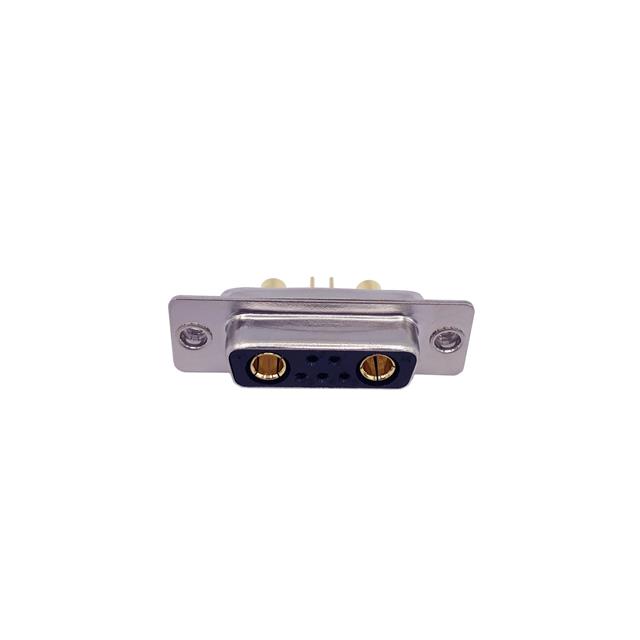

NorComp Inc. 681M7W2203L101	-55 C	125 °C	Polybutylene Terephthalate (PBT)	Black	Copper Alloy	A DA	2	7W2	7	5	2	Solder	Signal and Power	Combo D-Sub	Gold	2	Nickel Plated Steel	UL94 V-0	Flash		Receptacle Female Sockets	Housing/Shell (Unthreaded)	Panel Mount Through Hole	5 A 40 A	250 V
NorComp Inc. 681M7W2103L151	-55 C	125 °C	Polybutylene Terephthalate (PBT)	Black	Copper Alloy	A DA	2	7W2	7	5	2	Solder	Signal and Power	Combo D-Sub	Gold	2	Nickel Plated Steel	UL94 V-0	Flash	Board Lock Grounding Indents	Plug Male Pins	Board Side (4-40)	Panel Mount Through Hole	5 A 40 A	250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	161	$ 12.75
	Tray	1	$ 12.71
		10	$ 11.27
		25	$ 10.83
		70	$ 10.40
		140	$ 9.82
		280	$ 8.95
		490	$ 8.38
		980	$ 7.68

Description

General part information

681M7W2 Series

7 (5 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
