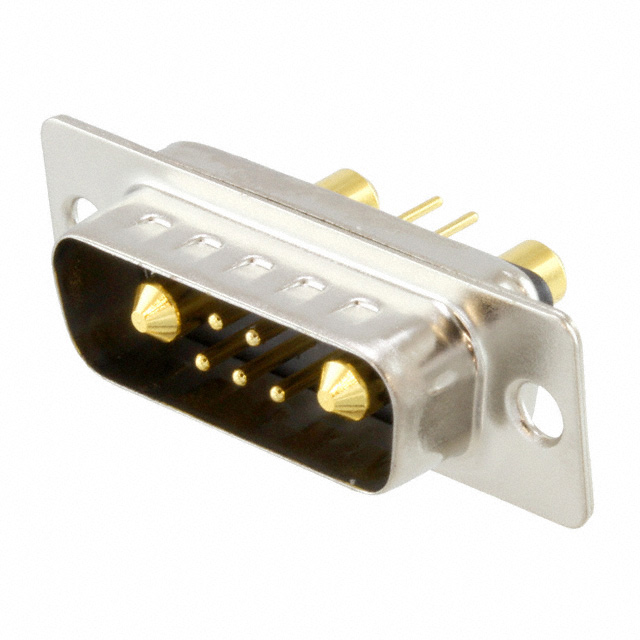

681M7W2 Series
Manufacturer: NorComp Inc.
Beta
⌘K
COMBINATION LAYOUT D SUB CONNECTOR, POWER-D 681M SERIES, DA-7W2, PLUG, 7 CONTACTS
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Contact Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Number of Positions [custom] | Number of Positions [custom] | Termination | Contact Type | Connector Style | Contact Finish | Number of Rows [custom] | Shell Material, Finish | Material Flammability Rating | Contact Finish Thickness | Features | Connector Type | Flange Feature | Mounting Type | Current Rating (Amps) | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) | Black | Copper Alloy | A DA | 2 | 7W2 | 7 | 5 | 2 | Solder | Signal and Power | Combo D-Sub | Gold | 2 | Nickel Plated Steel | UL94 V-0 | Flash | Grounding Indents | Plug Male Pins | Board Side (4-40) | Panel Mount Through Hole | 5 A 40 A | |
 NorComp Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) | Black | Copper Alloy | A DA | 2 | 7W2 | 7 | 5 | 2 | Solder | Signal and Power | Combo D-Sub | Gold | 2 | Nickel Plated Steel | UL94 V-0 | Flash | Board Lock | Receptacle Female Sockets | Board Side (4-40) | Panel Mount Through Hole | 5 A 40 A | 250 V |
 NorComp Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) | Black | Copper Alloy | A DA | 2 | 7W2 | 7 | 5 | 2 | Solder | Signal and Power | Combo D-Sub | Gold | 2 | Nickel Plated Steel | UL94 V-0 | Flash | Grounding Indents | Plug Male Pins | Housing/Shell (Unthreaded) | Panel Mount Through Hole | 5 A 40 A | 250 V |
 NorComp Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) | Black | Copper Alloy | A DA | 2 | 7W2 | 7 | 5 | 2 | Solder | Signal and Power | Combo D-Sub | Gold | 2 | Nickel Plated Steel | UL94 V-0 | Flash | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Panel Mount Through Hole | 5 A 40 A | ||
 NorComp Inc. | -55 C | 155 C | Polybutylene Terephthalate (PBT) | Black | Copper Alloy | A DA | 2 | 7W2 | 7 | 5 | 2 | Solder | Signal and Power | Combo D-Sub | Gold | 2 | Nickel Plated Steel | UL94 V-0 | Flash | Grounding Indents | Plug Male Pins | Housing/Shell (Unthreaded) | Panel Mount Through Hole | 5 A 40 A | |
NorComp Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) | Black | Copper Alloy | A DA | 2 | 7W2 | 7 | 5 | 2 | Solder | Signal and Power | Combo D-Sub | Gold | 2 | Nickel Plated Steel | UL94 V-0 | Flash | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Panel Mount Through Hole | 5 A 40 A | 250 V | |
 NorComp Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) | Black | Copper Alloy | A DA | 2 | 7W2 | 7 | 5 | 2 | Solder | Signal and Power | Combo D-Sub | Gold | 2 | Nickel Plated Steel | UL94 V-0 | Flash | Board Lock Grounding Indents | Plug Male Pins | Board Side (4-40) | Panel Mount Through Hole | 5 A 40 A | 250 V |
