Power Supplies - Board Mount

EC3AE35M

Active

Cincon Electronics Co. LTD

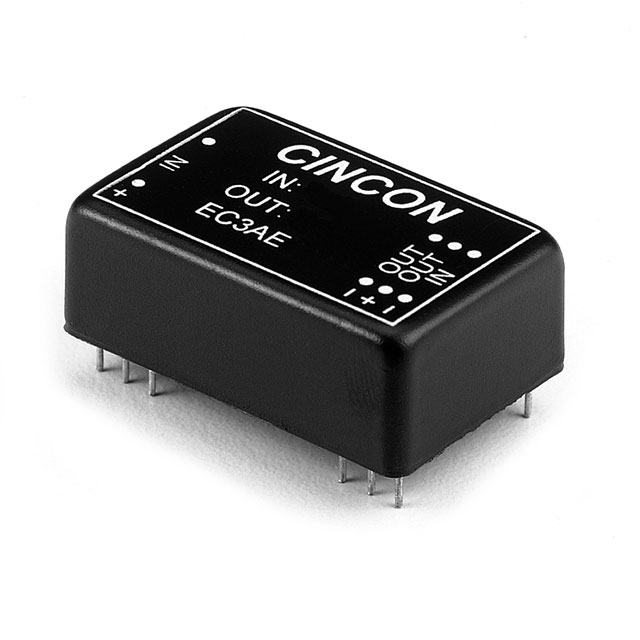

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC CONVERTER, 3 WATT, 28VDC INPUT, +/-15VDC OUTPUT, DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Power Supplies - Board Mount

EC3AE35M

Active

Cincon Electronics Co. LTD

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC CONVERTER, 3 WATT, 28VDC INPUT, +/-15VDC OUTPUT, DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC3AE35M

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max)	100 mA
Current - Output (Max)	100 mA
Efficiency	61 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-25 °C
Package / Case	12 Leads
Package / Case	24-DIP Module
Power (Watts)	3 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 in
Size / Dimension [y]	0.8 "
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	30.8 V
Voltage - Input (Min) [Min]	25.2 V
Voltage - Isolation	500 V
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

EC3AE Series

Part	Current - Output (Max)	Current - Output (Max)	Efficiency	Type	Voltage - Input (Max) [Max]	Voltage - Isolation	Applications	Voltage - Output 2	Voltage - Input (Min) [Min]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Power (Watts)	Features	Package / Case	Package / Case	Voltage - Output 1	Mounting Type	Current - Output (Max) [Max]
Cincon Electronics Co. LTD EC3AE35M	100 mA	100 mA	61 %	Isolated Module	30.8 V	500 V	ITE (Commercial)	-15 V	25.2 V	CE	-25 °C	100 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	3 W	SCP	12 Leads	24-DIP Module	15 V	Through Hole
Cincon Electronics Co. LTD EC3AE42M			61 %	Isolated Module	52.8 V	500 V	ITE (Commercial)		43.2 V	CE	-25 °C	100 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	3 W	SCP	12 Leads	24-DIP Module	12 V	Through Hole	250 mA
Cincon Electronics Co. LTD EC3AE45M	100 mA	100 mA	61 %	Isolated Module	52.8 V	500 V	ITE (Commercial)	-15 V	43.2 V	CE	-25 °C	100 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	3 W	SCP	12 Leads	24-DIP Module	15 V	Through Hole
Cincon Electronics Co. LTD EC3AE05M	100 mA	100 mA	61 %	Isolated Module	5.5 V	500 V	ITE (Commercial)	-15 V	4.5 V	CE	-25 °C	100 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	3 W	SCP	12 Leads	24-DIP Module	15 V	Through Hole
Cincon Electronics Co. LTD EC3AE22M			61 %	Isolated Module	26.4 V	500 V	ITE (Commercial)		21.6 V	CE	-25 °C	100 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	3 W	SCP	12 Leads	24-DIP Module	12 V	Through Hole	250 mA
Cincon Electronics Co. LTD EC3AE02M			61 %	Isolated Module	5.5 V	500 V	ITE (Commercial)		4.5 V	CE	-25 °C	100 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	3 W	SCP	12 Leads	24-DIP Module	12 V	Through Hole	250 mA
Cincon Electronics Co. LTD EC3AE32M			61 %	Isolated Module	30.8 V	500 V	ITE (Commercial)		25.2 V	CE	-25 °C	100 °C	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	3 W	SCP	12 Leads	24-DIP Module	12 V	Through Hole	250 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	2	$ 10.32
	Tube	1	$ 10.58
		5	$ 9.97
		10	$ 9.72
		25	$ 9.42
		50	$ 9.17
		100	$ 8.94
		250	$ 8.77
Mouser	N/A	1	$ 10.13
		5	$ 9.82
		10	$ 9.67
		25	$ 8.52
		50	$ 8.26
		100	$ 7.98
		250	$ 7.88
		500	$ 7.85
		1000	$ 7.84

Description

General part information

EC3AE Series

Isolated Module DC DC Converter 2 Output 15V -15V 100mA, 100mA 25.2V - 30.8V Input

Documents

Technical documentation and resources
