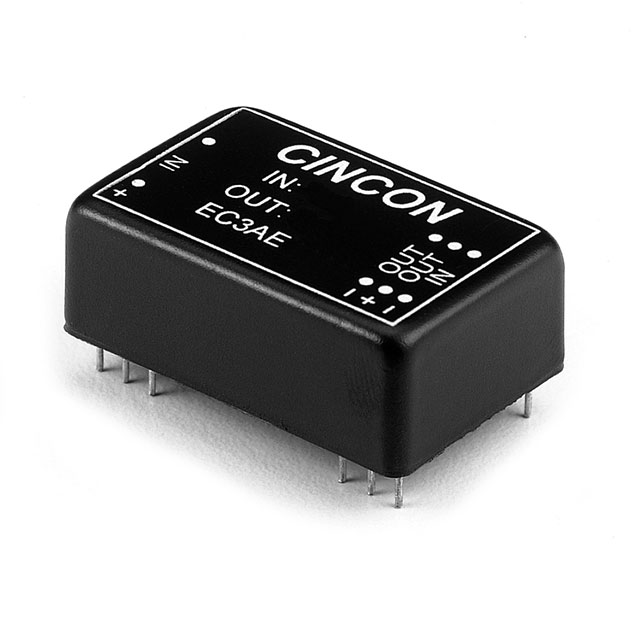

EC3AE Series
Manufacturer: Cincon Electronics Co. LTD
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC CONVERTER, 3 WATT, 28VDC INPUT, +/-15VDC OUTPUT, DIP
| Part | Current - Output (Max) | Current - Output (Max) | Efficiency | Type | Voltage - Input (Max) [Max] | Voltage - Isolation | Applications | Voltage - Output 2 | Voltage - Input (Min) [Min] | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Number of Outputs | Power (Watts) | Features | Package / Case | Package / Case | Voltage - Output 1 | Mounting Type | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cincon Electronics Co. LTD | 100 mA | 100 mA | 61 % | Isolated Module | 30.8 V | 500 V | ITE (Commercial) | -15 V | 25.2 V | CE | -25 °C | 100 °C | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 2 | 3 W | SCP | 12 Leads | 24-DIP Module | 15 V | Through Hole | |
 Cincon Electronics Co. LTD | 61 % | Isolated Module | 52.8 V | 500 V | ITE (Commercial) | 43.2 V | CE | -25 °C | 100 °C | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 1 | 3 W | SCP | 12 Leads | 24-DIP Module | 12 V | Through Hole | 250 mA | |||
Cincon Electronics Co. LTD | 100 mA | 100 mA | 61 % | Isolated Module | 52.8 V | 500 V | ITE (Commercial) | -15 V | 43.2 V | CE | -25 °C | 100 °C | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 2 | 3 W | SCP | 12 Leads | 24-DIP Module | 15 V | Through Hole | |
Cincon Electronics Co. LTD | 100 mA | 100 mA | 61 % | Isolated Module | 5.5 V | 500 V | ITE (Commercial) | -15 V | 4.5 V | CE | -25 °C | 100 °C | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 2 | 3 W | SCP | 12 Leads | 24-DIP Module | 15 V | Through Hole | |
Cincon Electronics Co. LTD | 61 % | Isolated Module | 26.4 V | 500 V | ITE (Commercial) | 21.6 V | CE | -25 °C | 100 °C | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 1 | 3 W | SCP | 12 Leads | 24-DIP Module | 12 V | Through Hole | 250 mA | |||
Cincon Electronics Co. LTD | 61 % | Isolated Module | 5.5 V | 500 V | ITE (Commercial) | 4.5 V | CE | -25 °C | 100 °C | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 1 | 3 W | SCP | 12 Leads | 24-DIP Module | 12 V | Through Hole | 250 mA | |||
Cincon Electronics Co. LTD | 61 % | Isolated Module | 30.8 V | 500 V | ITE (Commercial) | 25.2 V | CE | -25 °C | 100 °C | 0.8 " | 0.4 " | 31.8 mm | 10.2 mm | 20.3 mm | 1.25 in | 1 | 3 W | SCP | 12 Leads | 24-DIP Module | 12 V | Through Hole | 250 mA |
