Technical Specifications
Parameters and characteristics for this part
| Specification | C2426A.41.10 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Annealed Tinned |
| Conductor Strand [custom] | 19 |
| Conductor Strand [diameter] | 0.0117 in |
| Jacket (Insulation) Diameter [diameter] | 9.22 mm |
| Jacket (Insulation) Diameter [diameter] | 0.363 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.813 mm |
| Jacket (Insulation) Thickness | 0.032 in |
| Jacket Color | Gray |
| Length | 304.8 m, 15.24 m |
| Length | 1000 ft, 50 ft |
| Length [x] | 100 ft |
| Length [x] | 30.5 m |
| Number of Conductors | 7 |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 ░C |
| Ratings | ASTM B-33 |
| Usage | Communication, Control |
| Voltage | 300 VDC |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | N/A | 6 | $ 359.62 | |
| 6 | $ 359.62 | |||
| 11 | $ 188.35 | |||
| 11 | $ 188.35 | |||
| 1000 | $ 2.64 | |||
| 1000 | $ 2.64 | |||
| Spool | 1 | $ 357.83 | ||
| 1 | $ 273.19 | |||
| 1 | $ 357.83 | |||
| 1 | $ 273.19 | |||
| 5 | $ 223.52 | |||
| 5 | $ 318.07 | |||
| 5 | $ 223.52 | |||
| 5 | $ 318.07 | |||
| 10 | $ 288.25 | |||
| 10 | $ 173.85 | |||
| 10 | $ 288.25 | |||
| 10 | $ 173.85 | |||
| 1000 | $ 2.50 | |||
| 1000 | $ 2.50 | |||
| 2000 | $ 2.38 | |||
| 2000 | $ 2.38 | |||
| 3000 | $ 2.31 | |||
| 3000 | $ 2.31 | |||
Description
General part information
C2426 Series

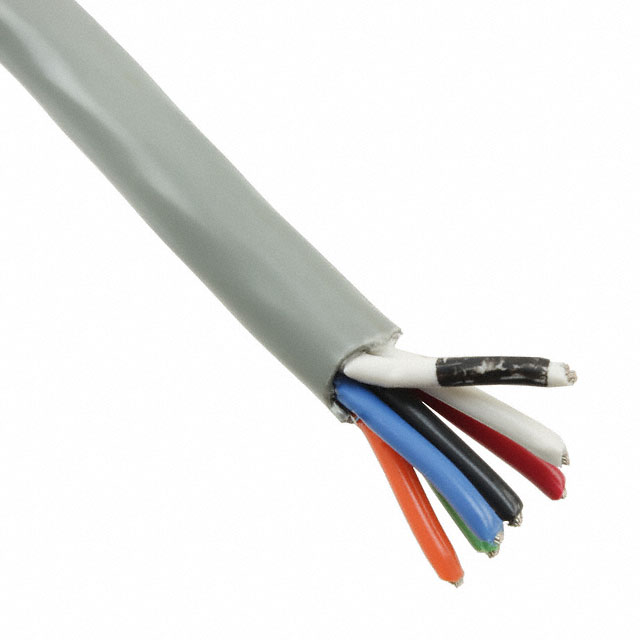

7 Conductor Multi-Conductor Cable Gray 16 AWG 50.00' (15.24m)
Documents
Technical documentation and resources
No documents available
