Connectors, Interconnects

PPG.M0.4GG.N

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS 4P R/A RCPT W/KEY FOR PRINTED CIRCUIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

Connectors, Interconnects

PPG.M0.4GG.N

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS 4P R/A RCPT W/KEY FOR PRINTED CIRCUIT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PPG.M0.4GG.N

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Current Rating (Amps)	8 A
Fastening Type	Detent Lock, Push-Pull
Features	Backshell, Board Guide
Ingress Protection	IP50
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	G
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	M04
Shielding	Unshielded
Termination	Solder

PAG.M0 Series

Standard Circular Connector

...

Part	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Contact Finish - Mating	Connector Type	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Features	Shielding	Backshell Material, Plating	Applications	Shell Size - Insert	Primary Material	Orientation	Mounting Type	Current Rating (Amps)	Fastening Type	Ingress Protection	Number of Positions	Insert Material	Cable Opening [custom]	Cable Opening [custom]	Termination	Mounting Feature	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]

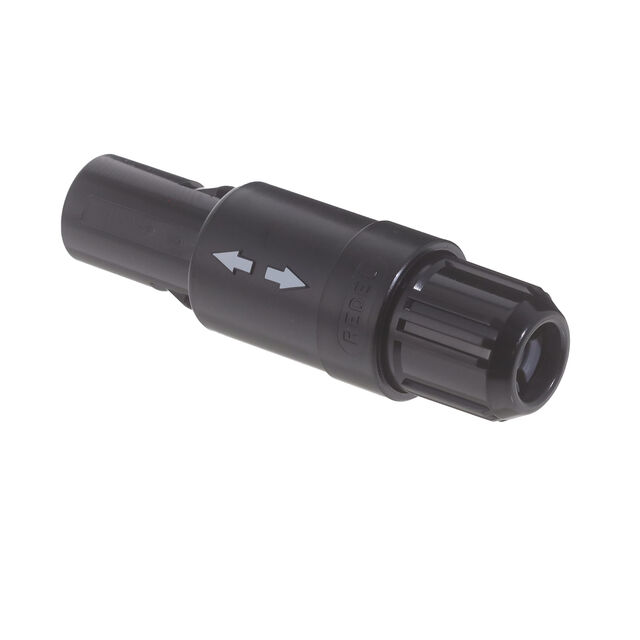

LEMO PAG.M0.9NL.AC52N	0.157 in	0.205 in	4 mm	5.2 mm	Gold	Male Pins Plug	Polysulfone (PSU)	150 °C	-50 °C	Black	Backshell	Unshielded	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	M09	Plastic	G	Free Hanging (In-Line)	3 A	Detent Lock Push-Pull	IP50	9	Polyetheretherketone (PEEK)
LEMO PAG.M0.5TL.AC65NZ					Gold	Male Pins Plug	Polyetherimide (PEI)	170 °C	-50 °C	Black	Backshell	Unshielded	Polyetherimide (PEI)	Automotive Industrial Medical Testing Equipment & Measurement	M05	Plastic	G	Free Hanging (In-Line)	7 A	Detent Lock Push-Pull	IP50		Polyetheretherketone (PEEK)	0.209 in 0.256 in	5.3 mm 6.5 mm
LEMO PAG.M0.6GL.CC52GZ	0.157 in	0.205 in	4 mm	5.2 mm	Gold	Male Pins Plug	Polysulfone (PSU)	150 °C	-50 °C	Gray	Backshell	Unshielded	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	M06	Plastic	G	Free Hanging (In-Line)	6 A	Detent Lock Push-Pull	IP50	6	Polyetheretherketone (PEEK)			Crimp
LEMO PAG.M0.6GL.AC65NZ					Gold	Male Pins Plug	Polysulfone (PSU)	150 °C	-50 °C		Backshell	Unshielded	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	M06	Plastic	G	Free Hanging (In-Line)	6 A	Detent Lock Push-Pull	IP50	6	Polyetheretherketone (PEEK)	0.209 in 0.256 in	5.3 mm 6.5 mm
LEMO PKB.M1.4GL.LZ					Gold	Receptacle Female Sockets	Polysulfone (PSU)	150 °C	-50 °C	Gray		Unshielded		Automotive Industrial Medical Testing Equipment & Measurement	M14	Plastic	B		2 A	Detent Lock Push-Pull	IP50	14	Polyetheretherketone (PEEK)				Front and Rear Side Nut
LEMO PAG.M0.4NL.AC52NZ	0.157 in	0.205 in	4 mm	5.2 mm	Gold	Male Pins Plug	Polysulfone (PSU)	150 °C	-50 °C	Black	Backshell	Unshielded	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	M04	Plastic	G	Free Hanging (In-Line)	8 A	Detent Lock Push-Pull	IP50	4	Polyetheretherketone (PEEK)

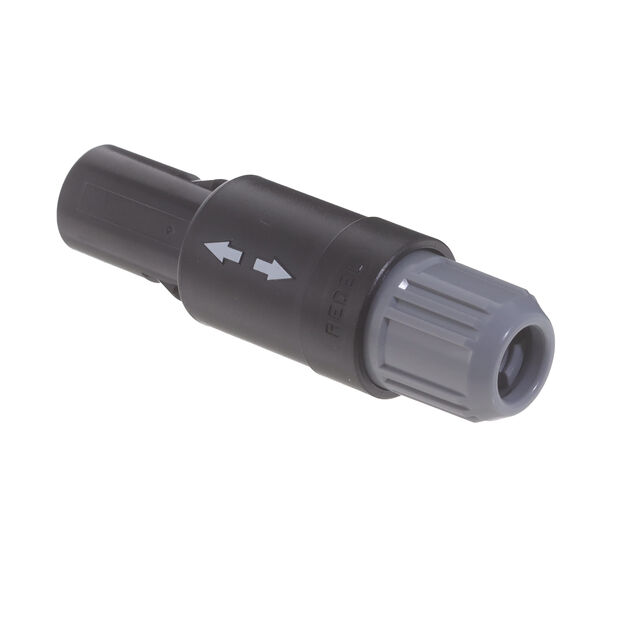

LEMO PAG.M0.9NL.AC52G	0.157 in	0.205 in	4 mm	5.2 mm	Gold	Male Pins Plug	Polysulfone (PSU)	150 °C	-50 °C		Backshell	Unshielded	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	M09	Plastic	G	Free Hanging (In-Line)	3 A	Detent Lock Push-Pull	IP50	9	Polyetheretherketone (PEEK)
LEMO PAG.M0.2GL.AC39A					Gold	Male Pins Plug	Polysulfone (PSU)	150 °C	-50 °C	Blue Gray	Backshell	Unshielded	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	M02	Plastic	G	Free Hanging (In-Line)	10 A	Detent Lock Push-Pull	IP50	2	Polyetheretherketone (PEEK)					2.7 mm	0.154 in	3.9 mm	0.106 in
LEMO PAG.M0.4GL.CC52RZ	0.157 in	0.205 in	4 mm	5.2 mm	Gold	Male Pins Plug	Polysulfone (PSU)	150 °C	-50 °C	Gray Red	Backshell	Unshielded	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement	M04	Plastic	G	Free Hanging (In-Line)	8 A	Detent Lock Push-Pull	IP50	4	Polyetheretherketone (PEEK)			Crimp
LEMO PAG.M0.7GL.AC52J	0.157 in	0.205 in	4 mm	5.2 mm	Gold	Male Pins Plug	Polysulfone (PSU)	150 °C	-50 °C	Gray Yellow	Backshell	Unshielded	Polysulfone (PSU)	Automotive Industrial Medical Testing Equipment & Measurement		Plastic	G	Free Hanging (In-Line)	5 A	Detent Lock Push-Pull	IP50	7	Polyetheretherketone (PEEK)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.40
		10	$ 26.62
		25	$ 25.47
		50	$ 24.65
		100	$ 23.83
		250	$ 22.51
Sager	N/A	1	$ 27.83
		10	$ 26.99
		25	$ 26.18
		100	$ 24.88
		250	$ 23.63

Description

General part information

PAG.M0 Series

Standard Circular Connector
