Connectors, Interconnects

1777060

Active

Phoenix Contact

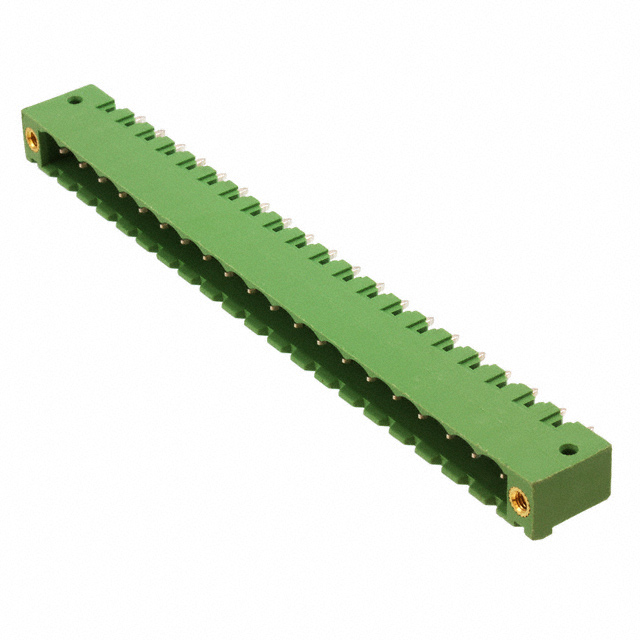

PLUGGABLE TERMINAL BLOCKS 20 POS 5MM PITCH THROUGH HOLE HEADER

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1777060

Color	Green
Contact Mating Finish	Tin
Contact Tail Length	3.9 mm
Contact Tail Length	0.154 in
Current - IEC	12 A
Current - UL	12 A
Features	Mating and Mounting Flange
Header Orientation	Vertical
Housing Material	Polybutylene Terephthalate (PBT)
Insulation Height	0.472 "
Insulation Height	12 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	20
Pitch	0.197 in
Pitch	5 mm
Positions Per Level	20
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	400 V
Voltage - UL	300 V

MSTBV Series

Part	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Mounting Type	Contact Mating Finish	Current - IEC	Pitch	Pitch	Positions Per Level	Voltage - IEC	Header Orientation	Termination Style	Type	Features	Number of Positions	Number of Levels	Color	Material Flammability Rating	Housing Material	Current - UL	Voltage - UL	Positions Per Level [custom]
Phoenix Contact 1922349	0.472 "	12 mm	3.9 mm	0.154 in	Through Hole	Tin	12 A	5.08 mm	0.2 in	18	250 V	Vertical	Solder	Header Male Pins Shrouded (4 Side)	Mating and Mounting Flange	18	1	Gray
Phoenix Contact 1777167	0.472 "	12 mm	3.9 mm	0.154 in	Through Hole	Tin	12 A	5.08 mm	0.2 in	11	630 V	Vertical	Solder	Header Male Pins Shrouded (4 Side)	Mating and Mounting Flange	11	1	Green	UL94 V-0	Polybutylene Terephthalate (PBT)	12 A	300 V
Phoenix Contact 1911693	0.472 "	12 mm	3.9 mm	0.154 in	Through Hole	Tin	12 A	5.08 mm	0.2 in		400 V	Vertical	Solder	Header Male Pins Shrouded (4 Side)	Mating and Mounting Flange	7	1	Black	UL94 V-0	Polybutylene Terephthalate (PBT)			7
Phoenix Contact 1777060	0.472 "	12 mm	3.9 mm	0.154 in	Through Hole	Tin	12 A	5 mm	0.197 in	20	400 V	Vertical	Solder	Header Male Pins Shrouded (4 Side)	Mating and Mounting Flange	20	1	Green	UL94 V-0	Polybutylene Terephthalate (PBT)	12 A	300 V
Phoenix Contact 1758092	0.472 "	12 mm	3.9 mm	0.154 in	Through Hole	Tin	12 A	5.08 mm	0.2 in	10	400 V	Vertical	Solder	Header Male Pins Shrouded (2 Side)		10	1	Green	UL94 V-0	Polyamide (PA) Nylon	12 A	300 V
Phoenix Contact 1808641	0.472 "	12 mm	3.9 mm	0.154 in	Through Hole	Tin	12 A	5.08 mm	0.2 in	20	400 V	Vertical	Solder	Header Male Pins Shrouded (4 Side)	Ejectors	20	1	Green	UL94 V-0	Polybutylene Terephthalate (PBT)	12 A	300 V
Phoenix Contact 1758128	0.472 "	12 mm	3.9 mm	0.154 in	Through Hole	Tin	12 A	5.08 mm	0.2 in	13	400 V	Vertical	Solder	Header Male Pins Shrouded (2 Side)		13	1	Green	UL94 V-0	Polyamide (PA) Nylon	12 A	300 V
Phoenix Contact 1759428	0.472 "	12 mm	3.9 mm	0.154 in	Through Hole	Tin	12 A	5.08 mm	0.2 in	10	250 V	Vertical	Solder	Header Male Pins Shrouded (2 Side)		10	1	Black
Phoenix Contact 1777044	0.472 "	12 mm	3.9 mm	0.154 in	Through Hole	Tin	12 A	5 mm	0.197 in	18	400 V	Vertical	Solder	Header Male Pins Shrouded (4 Side)	Mating and Mounting Flange	18	1	Green	UL94 V-0	Polybutylene Terephthalate (PBT)	12 A	300 V
Phoenix Contact 1756951	0.472 "	12 mm	3.9 mm	0.154 in	Through Hole	Tin	12 A	5.08 mm	0.2 in	20	250 V	Vertical	Solder	Header Male Pins Shrouded (4 Side)	Mating and Mounting Flange	20	1	Green
