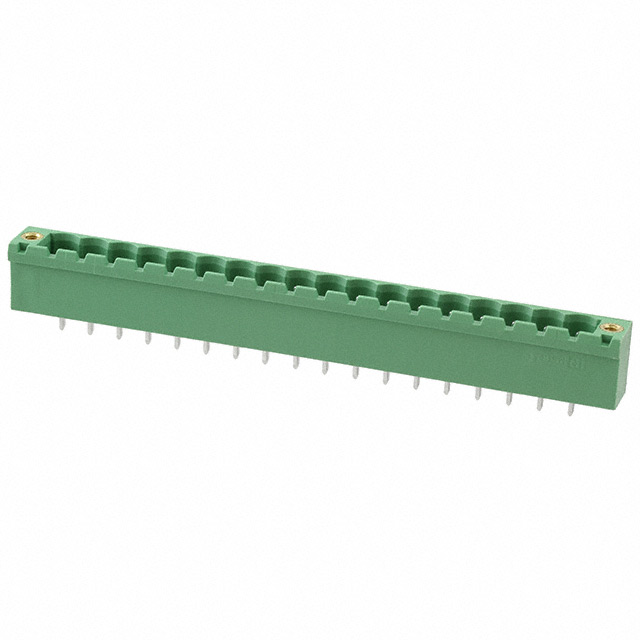

MSTBV Series
Pluggable Terminal Blocks 20 Pos 5mm pitch Through Hole Header
Manufacturer: Phoenix Contact
Catalog
Pluggable Terminal Blocks 20 Pos 5mm pitch Through Hole Header
Beta
⌘K
Pluggable Terminal Blocks 20 Pos 5mm pitch Through Hole Header
Pluggable Terminal Blocks 20 Pos 5mm pitch Through Hole Header
Pluggable Terminal Blocks 20 Pos 5mm pitch Through Hole Header
| Part | Voltage - IEC | Type | Number of Levels | Color | Termination Style | Voltage - UL | Features | Number of Positions | Pitch [x] | Pitch [x] | Current - IEC | Material Flammability Rating | Current - UL | Contact Mating Finish | Mounting Type | Housing Material | Header Orientation | Contact Tail Length | Contact Tail Length | Positions Per Level | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 400 V | Header Male Pins Shrouded (4 Side) | 1 | Green | Solder | 300 V | Mating and Mounting Flange | 20 | 5 mm | 0.197 in | 12 A | UL94 V-0 | 12 A | Tin | Through Hole | Polybutylene Terephthalate (PBT) | Vertical | 0.154 " | 3.9 mm | 20 | 0.472 in | 12 mm |
 Phoenix Contact | 400 V | Header Male Pins Shrouded (4 Side) | 1 | Green | Solder | 300 V | Ejectors | 20 | 5.08 mm | 0.2 in | 12 A | UL94 V-0 | 12 A | Tin | Through Hole | Polybutylene Terephthalate (PBT) | Vertical | 0.154 " | 3.9 mm | 20 | 0.472 in | 12 mm |
 Phoenix Contact | 250 V | Header Male Pins Shrouded (4 Side) | 1 | Green | Solder | Mating and Mounting Flange | 20 | 5.08 mm | 0.2 in | 12 A | Tin | Through Hole | Vertical | 0.154 " | 3.9 mm | 20 | 0.472 in | 12 mm | ||||
 Phoenix Contact | 400 V | Header Male Pins Shrouded (4 Side) | 1 | Green | Solder | 300 V | Mating and Mounting Flange | 9 | 5.08 mm | 0.2 in | 16 A | UL94 V-0 | 16 A | Tin | Through Hole | Polyamide (PA) Nylon | Vertical | 0.154 " | 3.9 mm | 9 | 0.472 in | 12 mm |
