Technical Specifications
Parameters and characteristics for this part
| Specification | HM2R03PA5100N9LF |
|---|---|
| Connector Style | C 11 |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 Áin |
| Contact Finish Thickness | 0.76 Ám |
| Current Rating (Amps) | 1.5 A |
| Features | Board Guide |
| Mounting Type | Through Hole, Right Angle, Board Edge |
| Number of Positions | 55 |
| Number of Positions Loaded | All |
| Number of Rows | 5 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Termination | Press-Fit |
| Voltage Rating | 750 Vrms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | N/A | 1181 | $ 3.20 | |
| Tray | 1 | $ 2.77 | ||
| 10 | $ 2.19 | |||
| 25 | $ 2.09 | |||
| 40 | $ 1.96 | |||
| 80 | $ 1.91 | |||
| 230 | $ 1.86 | |||
Description
General part information
HM2R03 Series

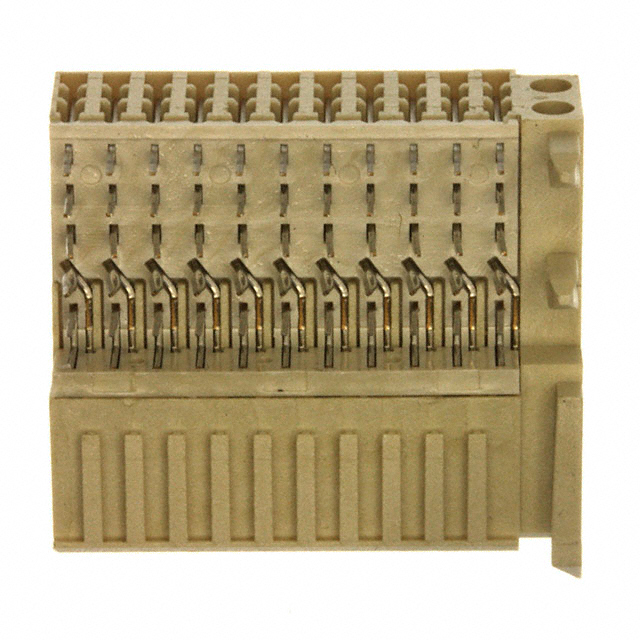

55 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle
