HM2R03 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

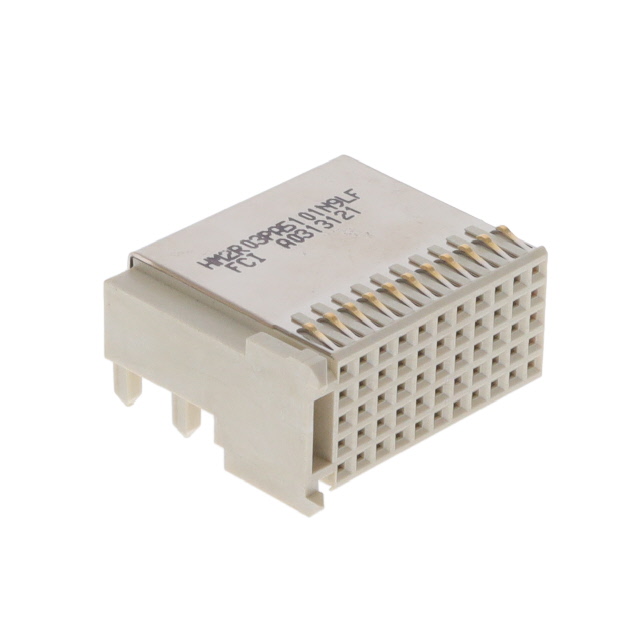

CONN RECEPT 55POS 2MM PRESS-FIT
| Part | Voltage Rating | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Features | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Connector Style | Termination | Mounting Type | Number of Positions Loaded | Contact Finish | Connector Type | Pitch [x] | Pitch [x] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 750 Vrms | 1.5 A | -55 C | 125 °C | Board Guide | 30 Áin | 0.76 Ám | 55 | C 11 | Press-Fit | Board Edge Right Angle Through Hole | All | Gold | Receptacle Female Sockets | 0.079 in | 2 mm | 5 |
Amphenol ICC (FCI) | |||||||||||||||||
Amphenol ICC (FCI) | 500 V | 1.5 A | -55 C | 125 °C | 30 Áin | 0.76 Ám | C 11 | Press-Fit | Right Angle Through Hole | Gold | Receptacle Female Sockets | 0.079 in | 2 mm | 1 5 | |||
Amphenol ICC (FCI) | 500 V | 1.5 A | -55 C | 125 °C | Board Guide | 55 | C 11 | Press-Fit | Right Angle Through Hole | All | Gold | Receptacle Female Sockets | 0.079 in | 2 mm | 5 | ||
 Amphenol ICC (FCI) | 750 Vrms | 1.5 A | -55 C | 125 °C | Board Guide Lower Shield Upper Shield | 30 Áin | 0.76 Ám | 55 | C 11 | Press-Fit | Board Edge Right Angle Through Hole | All | Gold | Receptacle Female Sockets | 0.079 in | 2 mm | 5 |
Amphenol ICC (FCI) | 750 Vrms | 1.5 A | -55 C | 125 °C | Board Guide | 51.2 Áin | 1.3 Ám | 55 | C 11 | Press-Fit | Board Edge Right Angle Through Hole | All | Gold | Receptacle Female Sockets | 0.079 in | 2 mm | 5 |
Amphenol ICC (FCI) | 500 V | 1.5 A | -55 C | 125 °C | Board Guide Upper Shield | 30 Áin | 0.76 Ám | 55 | C 11 | Press-Fit | Right Angle Through Hole | All | Gold | Receptacle Female Sockets | 0.079 in | 2 mm | 5 |
 Amphenol ICC (FCI) | 750 Vrms | 1.5 A | -55 C | 125 °C | Board Guide | 30 Áin | 0.76 Ám | 55 | C 11 | Press-Fit | Board Edge Right Angle Through Hole | All | Gold | Receptacle Female Sockets | 0.079 in | 2 mm | 5 |
