Connectors, Interconnects

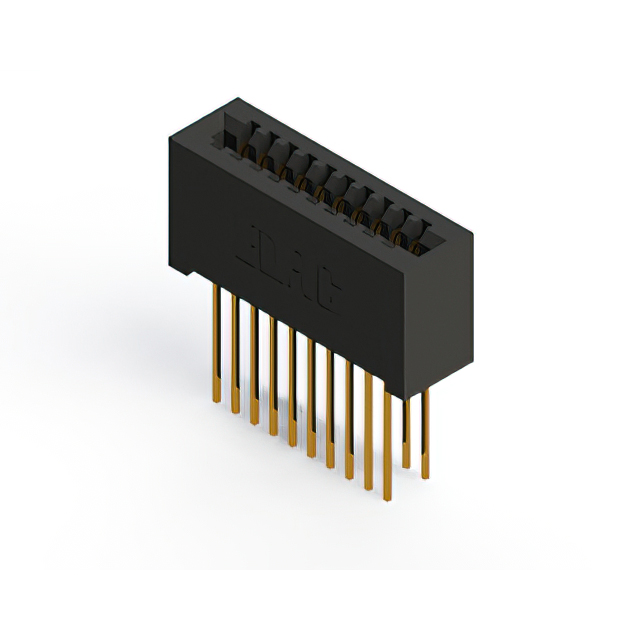

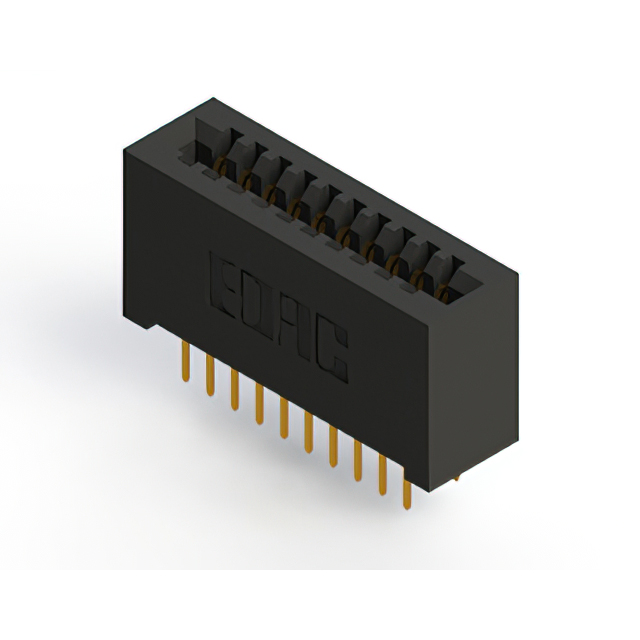

892-020-542-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 20POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

892-020-542-201

Active

EDAC Inc.

CONN EDGE DUAL FMALE 20POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	892-020-542-201

Card Thickness [Max]	0.07 in, 1.78 mm
Card Thickness [Min]	1.37 mm, 0.054 in
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.25 Ám
Contact Finish Thickness	10 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	20
Number of Positions/Bay/Row	10
Number of Rows [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 C
Pitch	0.1 "
Pitch	2.54 mm
Read Out	Dual
Termination	Wire Wrap
Termination Rows [custom]	2

892-020 Series

...

Part	Termination Rows [custom]	Material - Insulation	Contact Type	Read Out	Features	Number of Rows [custom]	Color	Contact Material	Gender	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Number of Positions/Bay/Row	Flange Feature	Contact Finish	Card Type	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]

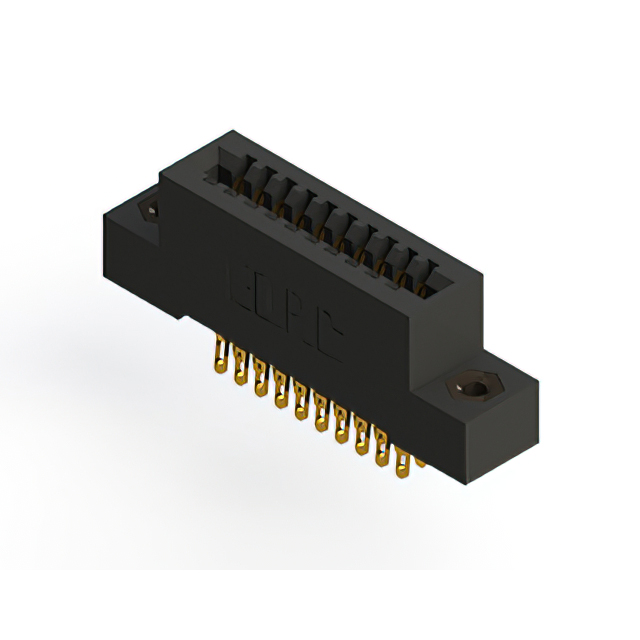

EDAC Inc. 892-020-555-208	2	Polyphenylene Sulfide (PPS)	Cantilever	Dual	Card Extender	2	Black	Copper Alloy	Female	20	0.07 in 1.78 mm	0.054 in 1.37 mm	Board Edge Straddle Mount	125 °C	-40 C	Solder	0.25 Ám	10 Áin	0.1 "	2.54 mm	10	4-40 Flush Mount Threaded Insert Top Opening	Gold	Non Specified - Dual Edge
EDAC Inc. 892-020-542-201	2	Polyphenylene Sulfide (PPS)	Cantilever	Dual		2	Black	Copper Alloy	Female	20	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Wire Wrap	0.25 Ám	10 Áin	0.1 "	2.54 mm	10		Gold	Non Specified - Dual Edge
EDAC Inc. 892-020-524-108		Polyphenylene Sulfide (PPS)	Cantilever	Single			Black	Copper Alloy	Female	20	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Solder	0.25 Ám	10 Áin	0.1 "	2.54 mm	20 Bay/Row	4-40 Flush Mount Threaded Insert Top Opening	Gold	Non Specified - Single Edge	1	1

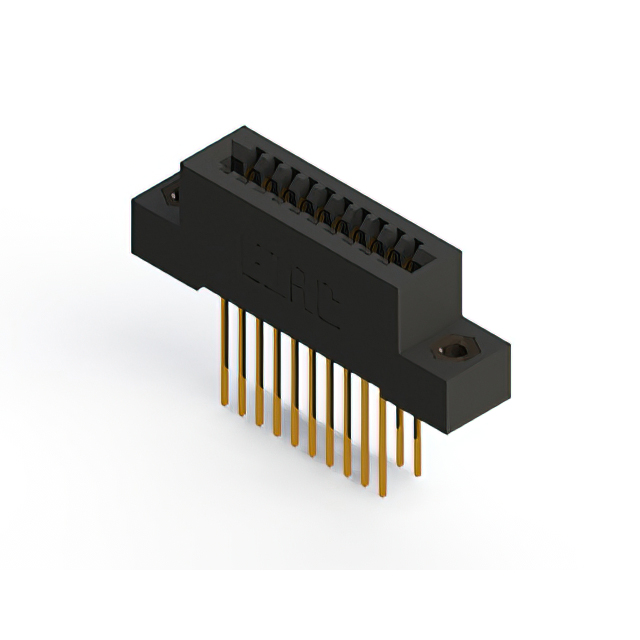

EDAC Inc. 892-020-540-207	2	Polyphenylene Sulfide (PPS)	Cantilever	Dual		2	Black	Copper Alloy	Female	20	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Wire Wrap	0.25 Ám	10 Áin	0.1 "	2.54 mm	10	Flush Mount M3 Threaded Insert Top Opening	Gold	Non Specified - Dual Edge

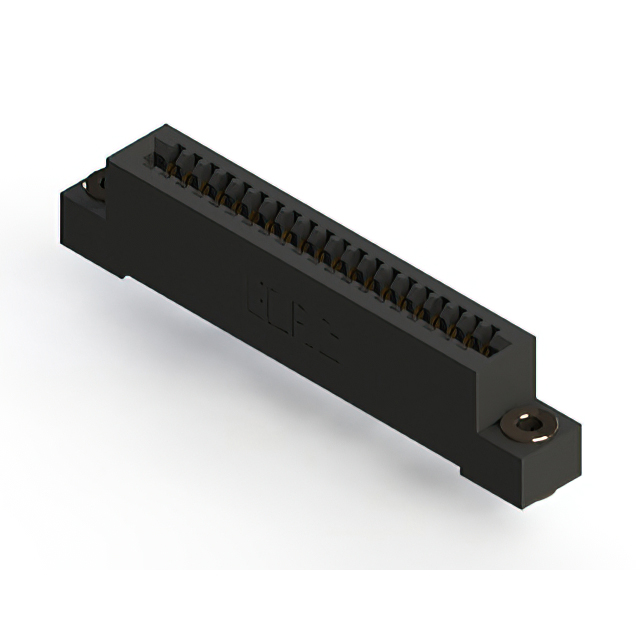

EDAC Inc. 892-020-524-103		Polyphenylene Sulfide (PPS)	Cantilever	Single			Black	Copper Alloy	Female	20	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Solder	0.25 Ám	10 Áin	0.1 "	2.54 mm	20 Bay/Row	Floating Bobbin Flush Mount	Gold	Non Specified - Single Edge	1	1	0.116 "	2.95 mm

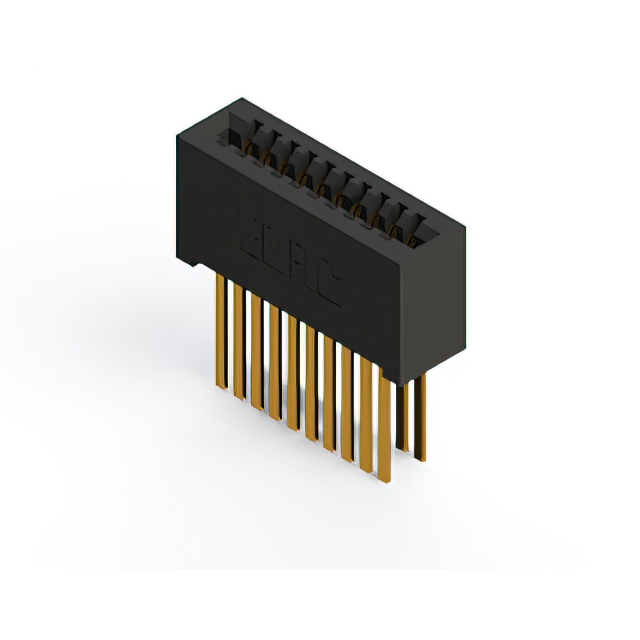

EDAC Inc. 892-020-544-201	2	Polyphenylene Sulfide (PPS)	Cantilever	Dual		2	Black	Copper Alloy	Female	20	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Wire Wrap	0.25 Ám	10 Áin	0.1 "	2.54 mm	10		Gold	Non Specified - Dual Edge
EDAC Inc. 892-020-523-208	2	Polyphenylene Sulfide (PPS)	Cantilever	Dual		2	Black	Copper Alloy	Female	20	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Solder	0.25 Ám	10 Áin	0.1 "	2.54 mm	10	4-40 Flush Mount Threaded Insert Top Opening	Gold	Non Specified - Dual Edge

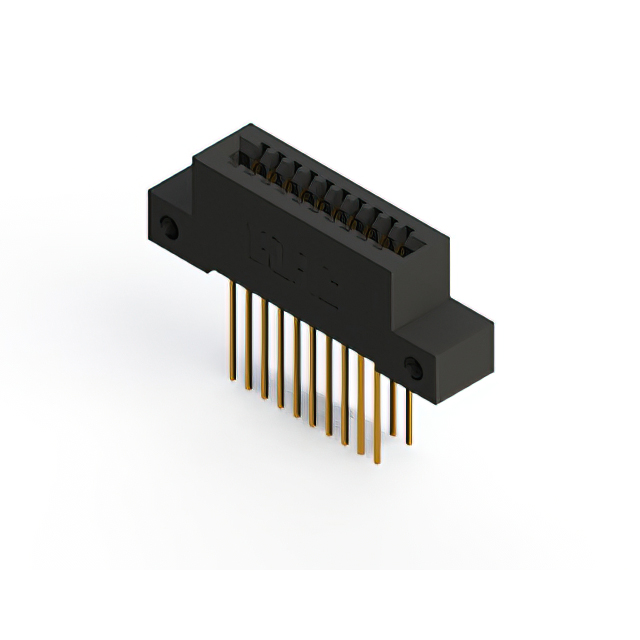

EDAC Inc. 892-020-541-212	2	Polyphenylene Sulfide (PPS)	Cantilever	Dual		2	Black	Copper Alloy	Female	20	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Wire Wrap	0.25 Ám	10 Áin	0.1 "	2.54 mm	10	Flush Mount Side Opening Unthreaded	Gold	Non Specified - Dual Edge			0.128 "	3.25 mm
EDAC Inc. 892-020-542-104		Polyphenylene Sulfide (PPS)	Cantilever	Single			Black	Copper Alloy	Female	20	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Wire Wrap	0.25 Ám	10 Áin	0.1 "	2.54 mm	20 Bay/Row	Flush Mount Top Opening Unthreaded	Gold	Non Specified - Single Edge	1	1	0.156 "	3.96 mm
EDAC Inc. 892-020-541-101		Polyphenylene Sulfide (PPS)	Cantilever	Single			Black	Copper Alloy	Female	20	0.07 in 1.78 mm	0.054 in 1.37 mm	Through Hole	125 °C	-40 C	Wire Wrap	0.25 Ám	10 Áin	0.1 "	2.54 mm	20 Bay/Row		Gold	Non Specified - Single Edge	1	1
