09340030501

Active

HARTING

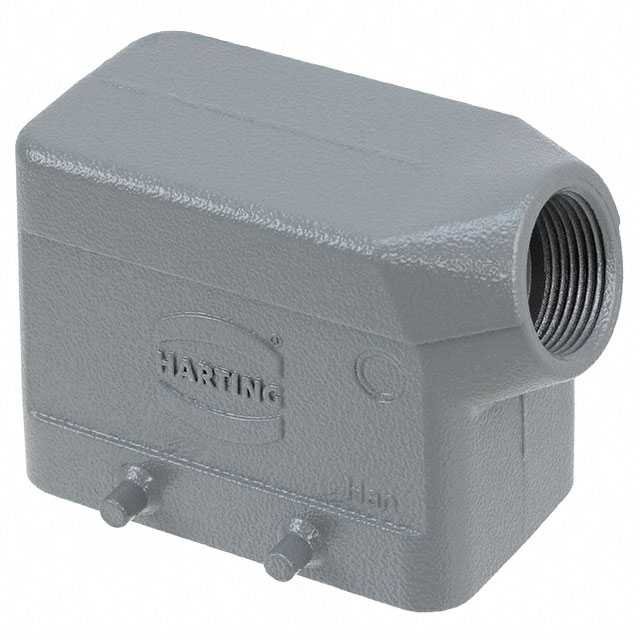

HAN HVE HOOD SIDE ENTRY LC 4 PEGS PG 16 ROHS COMPLIANT: NA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

09340030501

Active

HARTING

HAN HVE HOOD SIDE ENTRY LC 4 PEGS PG 16 ROHS COMPLIANT: NA

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09340030501

Connector Type	Hood
Lock Location	Locking Clip (2) on Base Bottom
Size / Dimension [x]	73 mm
Size / Dimension [x]	2.874 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 "
Size / Dimension [z]	57 mm
Size / Dimension [z]	2.244 "
Style	Side Entry
Thread Size	PG16

09340030 Series

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Thread Size	Features	Connector Type	Style	Lock Location	Size / Dimension [y]	Size / Dimension [z]	Housing Color	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Size	Housing Material
HARTING 09340030204	2.047 in	52 mm	54 mm	3.701 in	2.126 in	94 mm	PG16	Feed Through	Base - Box Mount	Side Entry	Locking Clip (1) on Base Bottom
HARTING 09340030501	1.693 "	43 mm	57 mm	2.874 "	2.244 "	73 mm	PG16		Hood	Side Entry	Locking Clip (2) on Base Bottom
HARTING 09340030302	1.709 "	43.4 mm	28.9 mm	3.661 "	1.138 "	93 mm		Cover	Base - Panel Mount	Bottom Entry	Locking Clip (2) on Hood
HARTING 09340030701	1.693 "			2.858 in	1.866 "	72.6 mm	PG16	Cable to Cable	Hood - Coupling	Bottom Entry Top or Bottom Entry	Locking Clip (2) on Hood Top	43 mm	47.4 mm
HARTING 09340030201	2.047 in	52 mm	53.8 mm	3.701 in	2.118 in	94 mm	PG16	Feed Through	Base - Box Mount	Side Entry	Locking Clip (2) on Base Bottom
HARTING 09340030404	1.693 "	43 mm	45 mm	2.858 in	1.772 in	72.6 mm	PG16		Hood	Top Entry	Locking Clip (1) on Base Bottom
HARTING 09340030301	1.709 "	43.4 mm	28.9 mm	3.661 "	1.138 "	93 mm			Base - Panel Mount	Bottom Entry	Locking Clip (2) on Base Bottom			Gray	Powder Coated	125 °C	-40 C	IP65 - Dust Tight Water Resistant	10B	Aluminum Die Cast
HARTING 09340030703	1.693 "			2.858 in	1.866 "	72.6 mm	PG16	Cable to Cable	Hood - Coupling	Bottom Entry Top or Bottom Entry	Locking Clip (1) on Hood Top	43 mm	47.4 mm
HARTING 09340030305	1.709 "	43.4 mm	28.9 mm	3.661 "	1.138 "	93 mm			Base - Panel Mount	Bottom Entry	Locking Clip (1) on Base Bottom
HARTING 09340030401	1.693 "	43 mm	45 mm	2.858 in	1.772 in	72.6 mm			Hood	Top Entry	Locking Clip (2) on Base Bottom

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.00
		10	$ 18.39
		25	$ 17.60
		50	$ 17.03
		100	$ 16.46
		250	$ 15.55
		500	$ 15.10
	N/A	1	$ 23.43
Newark	Each	1	$ 22.45
		10	$ 20.36
		25	$ 19.54
		50	$ 18.26
		100	$ 17.57
		250	$ 16.63

Description

General part information

09340030 Series

Hood Connector Side Entry PG16
