09340030 Series

Manufacturer: HARTING

Catalog

CONN BASE SIDE ENTRY PG16

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Thread Size	Features	Connector Type	Style	Lock Location	Size / Dimension [y]	Size / Dimension [z]	Housing Color	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Size	Housing Material
HARTING 09340030204	2.047 in	52 mm	54 mm	3.701 in	2.126 in	94 mm	PG16	Feed Through	Base - Box Mount	Side Entry	Locking Clip (1) on Base Bottom
HARTING 09340030501	1.693 "	43 mm	57 mm	2.874 "	2.244 "	73 mm	PG16		Hood	Side Entry	Locking Clip (2) on Base Bottom
HARTING 09340030302	1.709 "	43.4 mm	28.9 mm	3.661 "	1.138 "	93 mm		Cover	Base - Panel Mount	Bottom Entry	Locking Clip (2) on Hood
HARTING 09340030701	1.693 "			2.858 in	1.866 "	72.6 mm	PG16	Cable to Cable	Hood - Coupling	Bottom Entry Top or Bottom Entry	Locking Clip (2) on Hood Top	43 mm	47.4 mm
HARTING 09340030201	2.047 in	52 mm	53.8 mm	3.701 in	2.118 in	94 mm	PG16	Feed Through	Base - Box Mount	Side Entry	Locking Clip (2) on Base Bottom
HARTING 09340030404	1.693 "	43 mm	45 mm	2.858 in	1.772 in	72.6 mm	PG16		Hood	Top Entry	Locking Clip (1) on Base Bottom

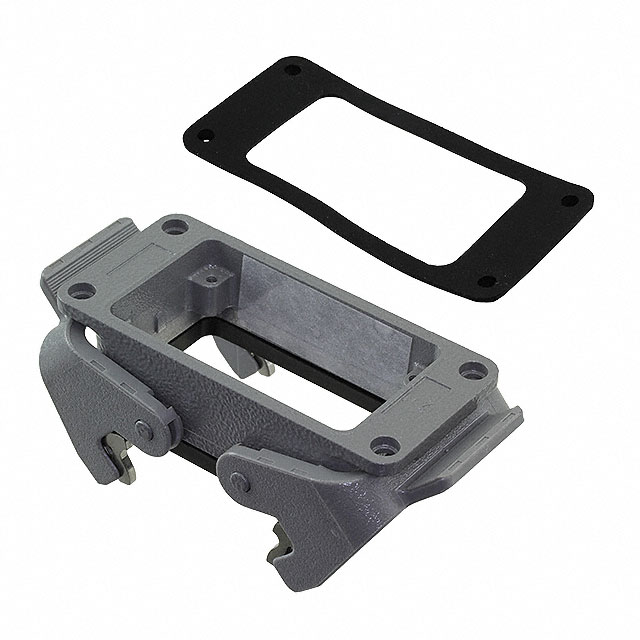

HARTING 09340030301	1.709 "	43.4 mm	28.9 mm	3.661 "	1.138 "	93 mm			Base - Panel Mount	Bottom Entry	Locking Clip (2) on Base Bottom			Gray	Powder Coated	125 °C	-40 C	IP65 - Dust Tight Water Resistant	10B	Aluminum Die Cast
HARTING 09340030703	1.693 "			2.858 in	1.866 "	72.6 mm	PG16	Cable to Cable	Hood - Coupling	Bottom Entry Top or Bottom Entry	Locking Clip (1) on Hood Top	43 mm	47.4 mm
HARTING 09340030305	1.709 "	43.4 mm	28.9 mm	3.661 "	1.138 "	93 mm			Base - Panel Mount	Bottom Entry	Locking Clip (1) on Base Bottom
HARTING 09340030401	1.693 "	43 mm	45 mm	2.858 in	1.772 in	72.6 mm			Hood	Top Entry	Locking Clip (2) on Base Bottom
