Specification	PIC18LF14K50-I/SS

Core Processor	PIC
Core Size	8-Bit
Data Converters	A/D
Data Converters	10 b, 11
EEPROM Size	256 x 8
Mounting Type	Surface Mount
Number of I/O	14
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	20-SSOP
Program Memory Size	16 KB
Program Memory Type	FLASH
RAM Size	768 x 8
Speed	48 MHz
Supplier Device Package	20-SSOP
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V

PIC18F14Q41 Series

Compact, Powerful MCUs with Advanced Analog

Part	Speed	EEPROM Size	Core Size	RAM Size	Supplier Device Package	Package / Case	Package / Case	Package / Case	Mounting Type	Connectivity	Program Memory Type	Oscillator Type	Data Converters	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Core Processor	Number of I/O	Program Memory Size	RAM Size	Data Converters	Package / Case [y]	Package / Case [y]	Data Converters [custom]	Data Converters [custom]
Microchip Technology PIC18F14Q41-E/P	64 MHz	512 x 8	8-Bit	1 K	20-PDIP	20-DIP	7.62 mm	0.3 in	Through Hole	I2C LINbus SPI UART/USART	FLASH	Internal	A/D 17x12b D/A 2x8b	1.8 V	5.5 V	-40 °C	125 °C	PIC	18	16 KB
Microchip Technology PIC18LF14K50-I/SS	48 MHz	256 x 8	8-Bit		20-SSOP	20-SSOP			Surface Mount		FLASH	Internal	A/D	1.8 V	3.6 V	-40 °C	85 °C	PIC	14	16 KB	768 x 8	10 b 11
Microchip Technology PIC18F14Q41-I/SO	64 MHz	512 x 8	8-Bit	1 K	20-SOIC	20-SOIC			Surface Mount	I2C LINbus SPI UART/USART	FLASH	Internal	A/D 17x12b D/A 2x8b	1.8 V	5.5 V	-40 °C	85 °C	PIC	18	16 KB			0.295 in	7.5 mm
Microchip Technology PIC18F14Q20-I/SS	64 MHz	256 x 8	8-Bit	1 K	20-SSOP	20-SSOP			Surface Mount	I2C LINbus SPI UART/USART	FLASH	Internal	A/D 11x10b SAR	1.8 V	5.5 V	-40 °C	85 °C	PIC	16	16 KB
Microchip Technology PIC18F14Q41T-I/SS	64 MHz	512 x 8	8-Bit	1 K	20-SSOP	20-SSOP			Surface Mount	I2C LINbus SPI UART/USART	FLASH	Internal	A/D 17x12b D/A 2x8b	1.8 V	5.5 V	-40 °C	85 °C	PIC	18	16 KB

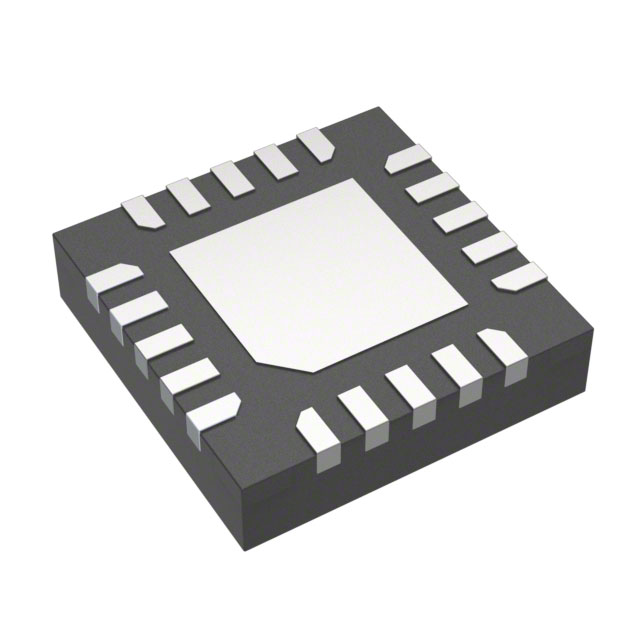

Microchip Technology PIC18F14Q20T-I/REB	64 MHz	256 x 8	8-Bit	1 K	20-VQFN (3x3)	20-VFQFN Exposed Pad			Surface Mount	I2C LINbus SPI UART/USART	FLASH	Internal	A/D 11x10b SAR	1.8 V	5.5 V	-40 °C	85 °C	PIC	16	16 KB
Microchip Technology PIC18F14Q41-I/SS	64 MHz	512 x 8	8-Bit	1 K	20-SSOP	20-SSOP			Surface Mount	I2C LINbus SPI UART/USART	FLASH	Internal	A/D 17x12b D/A 2x8b	1.8 V	5.5 V	-40 °C	85 °C	PIC	18	16 KB
Microchip Technology PIC18F14Q41-I/REB	64 MHz	512 x 8	8-Bit	1 K	20-VQFN (3x3)	20-VFQFN Exposed Pad			Surface Mount	I2C LINbus SPI UART/USART	FLASH	Internal	A/D 17x12b D/A 2x8b	1.8 V	5.5 V	-40 °C	85 °C	PIC	18	16 KB
Microchip Technology PIC18F14Q40T-I/SO	64 MHz	512 x 8	8-Bit	1 K	20-SOIC	20-SOIC			Surface Mount	I2C LINbus SPI UART/USART	FLASH	Internal		1.8 V	5.5 V	-40 °C	85 °C	PIC	18	16 KB			0.295 in	7.5 mm	2x8b	7x12b
Microchip Technology PIC18F14Q40-I/REB	64 MHz	512 x 8	8-Bit	1 K	20-VQFN (3x3)	20-VFQFN Exposed Pad			Surface Mount	I2C LINbus SPI UART/USART	FLASH	Internal		1.8 V	5.5 V	-40 °C	85 °C	PIC	18	16 KB					2x8b	7x12b

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.73
		25	$ 2.51
		100	$ 2.27
Microchip Direct	TUBE	1	$ 2.73
		25	$ 2.51
		100	$ 2.27
		1000	$ 2.08
		5000	$ 1.98
Newark	Each	1	$ 2.84
		10	$ 2.72
		25	$ 2.61
		50	$ 2.49
		134	$ 2.36

Description

General part information

PIC18F14Q41 Series

[***PIC18-Q41 Product Family Overview***](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/pic-mcus/pic18-q41)

PIC18-Q41 is a compact, high performance PIC18 product family with advanced analog peripherals for sensor and real-time control applications . The products are equipped with an on-chip operational amplifier, 12-bit ADC with Computation and two 8-bit DACs for improved data acquisition and sensor interfacing capabilities. Other key features include 16-bit PWMs, Direct Memory Access, Configurable Logic Cells and multiple communication interfaces. The PIC18-Q41 offers 14- and 20-pin products in small footprint packages to support customers in a variety of space constrained and sensor node applications.

[*Code Examples on GitHub*](https://mplab-discover.microchip.com/v1/itemtype/com.microchip.ide.project?s0=com.microchip.ide.project%3Adevice.content.name%3Aq41&ds0=com.microchip.portal.start.displayCharacteristics%3A1.0.3%3As0)
