Cables, Wires

C2525A.18.10

Active

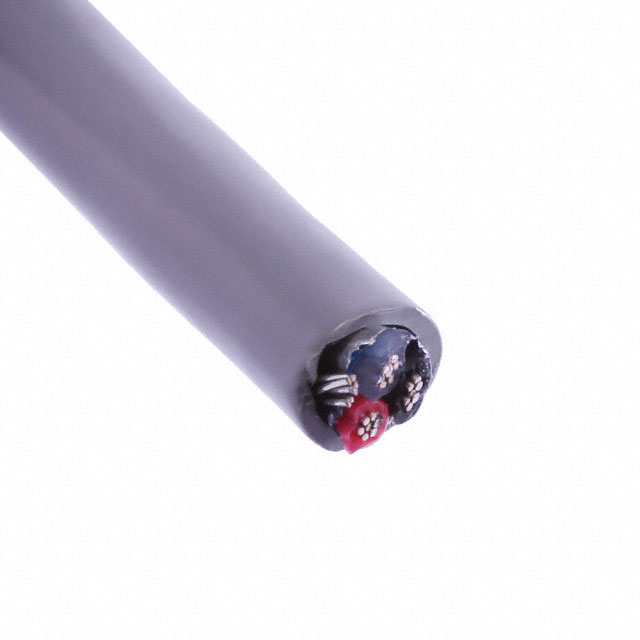

CABLE 3COND 20AWG GRAY SHLD

Search across all available documentation for this part.

Cables, Wires

Active

CABLE 3COND 20AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	C2525A.18.10

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	28 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.03 in
Jacket (Insulation) Thickness	0.762 mm
Jacket Color	Gray
Length	152.4 m, 15.24 m
Length	500 ft, 50 ft
Length [x]	100 ft
Length [x]	30.5 m
Number of Conductors	3
Ratings	ASTM B-33
Shield Type	Foil
Usage	Communication, Control
Voltage	300 VDC
Wire Gauge	20 AWG

Part	Features	Shield Coverage	Usage	Conductor Insulation	Shield Material	Length	Length	Cable Type	Shield Type	Jacket Color	Number of Conductors	Voltage	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Jacket (Insulation) Material	Length [x]	Length [x]
Prysmian Group C2525A.18.10	Drain Wire	100 %	Communication Control	Polyethylene (PE)	Flexfoil®	152.4 m	500 ft	Multi-Conductor	Foil	Gray	3	300 VDC	20 AWG	0.03 in	0.762 mm	Copper Annealed Tinned	28 AWG	7	ASTM B-33	Poly-Vinyl Chloride (PVC)
Prysmian Group C2525A.18.10	Drain Wire		Communication Control	Polyethylene (PE)		15.24 m 152.4 m	50 ft 500 ft	Multi-Conductor	Foil	Gray	3	300 VDC	20 AWG	0.03 in	0.762 mm	Copper Annealed Tinned	28 AWG	7	ASTM B-33	Poly-Vinyl Chloride (PVC)	100 ft	30.5 m
Prysmian Group C2525A.41.10	Drain Wire	100 %		Polyethylene (PE) Polypropylene (PP)	Flexfoil®	304.8 m	1000 ft	Multi-Conductor	Foil	Gray	3	300 VDC	20 AWG	0.03 in	0.762 mm	Copper Annealed Tinned	28 AWG	7	ASTM B-33	Poly-Vinyl Chloride (PVC)
Prysmian Group C2525A.41.10	Drain Wire			Polyethylene (PE) Polypropylene (PP)		304.8 m	1000 ft	Multi-Conductor	Foil	Gray	3	300 VDC	20 AWG	0.03 in	0.762 mm	Copper Annealed Tinned	28 AWG	7	ASTM B-33	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Gray 20 AWG Foil 500.0' (152.4m)

Technical documentation and resources

No documents available
