Technical Specifications
Parameters and characteristics for this part
| Specification | AM50E-2405S-NZ-K |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus |
| Current - Output (Max) | 10 A |
| Efficiency | 93 % |
| Features | Remote On/Off, Heat Sink |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 50 W |
| Size / Dimension Height | 0.64 in |
| Size / Dimension Length | 2 in |
| Size / Dimension Width | 1 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 18 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | N/A | 0 | $ 0.00 | 1m+ |
CAD
3D models and CAD resources for this part
Description
General part information
AM50E Series

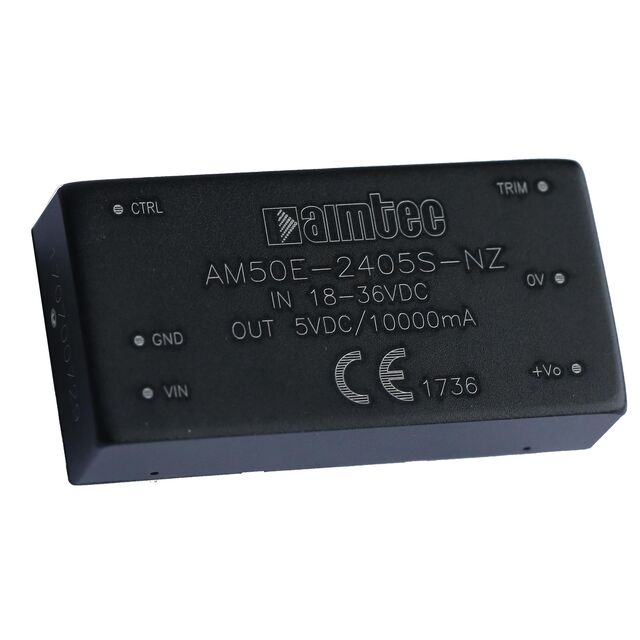

Isolated Module DC DC Converter 1 Output 5V 10A 18V - 36V Input
Documents
Technical documentation and resources
