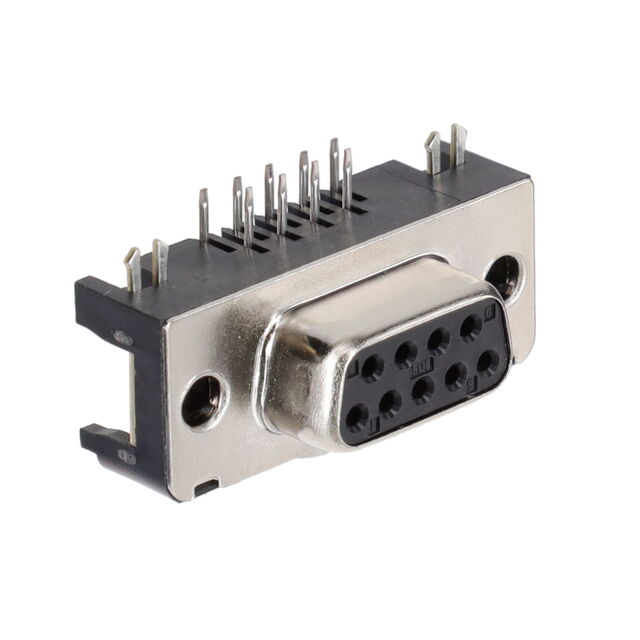

RDEG-9SE1(50)

LTB

CONN D-SUB RCPT PNL MNT T/H R/A

Search across all available documentation for this part.

Connectors, Interconnects

LTB

CONN D-SUB RCPT PNL MNT T/H R/A

Technical Specifications

Parameters and characteristics for this part

Specification	RDEG-9SE1(50)

Backset Spacing	5.08 mm
Backset Spacing	0.2 in
Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.203 çm
Contact Finish Thickness	8 µin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Board Lock
Flange Feature	Housing/Shell (M2.6)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	9
Number of Rows [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 C
Primary Material	Metal
Shell Material, Finish [custom]	Copper Alloy
Shell Material, Finish [custom]	Nickel Plated
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	DE, E
Termination	Solder
Voltage Rating	350 VDC

Part	Dielectric Material	Voltage Rating	Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Material Flammability Rating	Features	Contact Finish	Backset Spacing	Backset Spacing	Primary Material	Number of Rows [custom]	Current Rating (Amps)	Contact Type	Flange Feature	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Connector Type	Connector Style	Termination
Hirose Electric Co Ltd RDEG-9SE1(50)	Polybutylene Terephthalate (PBT)	350 VDC	Black	-55 C	85 °C	Copper Alloy	Right Angle Through Hole	0.203 çm	8 µin	9	1	DE E	UL94 V-0	Board Lock	Gold	5.08 mm	0.2 in	Metal	2	3 A	Signal	Housing/Shell (M2.6)	Copper Alloy	Nickel Plated	Receptacle Female Sockets	D-Sub	Solder
Hirose Electric Co Ltd RDEG1-9SE1(50)	Polybutylene Terephthalate (PBT)	350 VDC	Black	-55 C	85 °C	Copper Alloy	Right Angle Through Hole	0.203 çm	8 µin	9	1	DE E	UL94 V-0	Board Lock	Gold	5.08 mm	0.2 in	Metal	2	3 A	Signal	Housing/Shell (M2.6)	Copper Alloy	Nickel Plated	Receptacle Female Sockets	D-Sub	Solder
Hirose Electric Co Ltd RDEG1-9SE2(50)	Polybutylene Terephthalate (PBT)	350 VDC	Black	-55 C	85 °C	Copper Alloy	Right Angle Through Hole	0.203 çm	8 µin	9	1	DE E	UL94 V-0	Board Lock	Gold	5.08 mm	0.2 in	Metal	2	3 A	Signal	Housing/Shell (M2.6)	Copper Alloy	Nickel Plated	Receptacle Female Sockets	D-Sub	Solder
