Fans, Blowers, Thermal Management

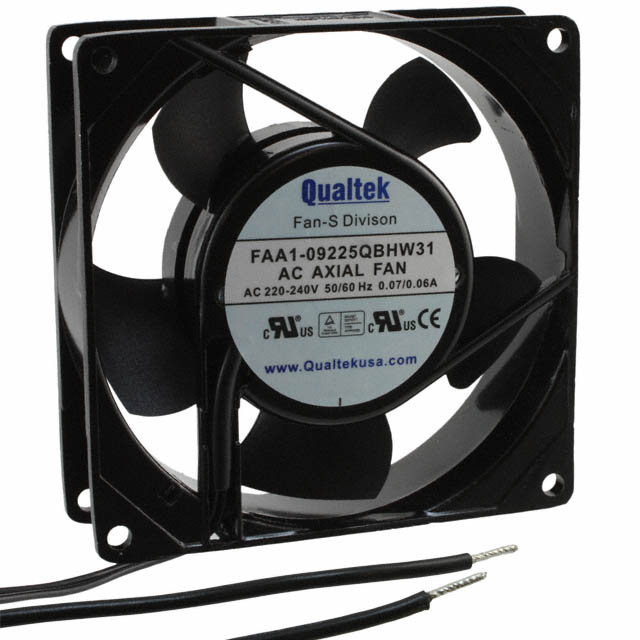

FAA1-09225QBHW31

Active

AC FANS AC FAN 92X25MM BALL 230VAC WIRE

Search across all available documentation for this part.

Fans, Blowers, Thermal Management

Active

AC FANS AC FAN 92X25MM BALL 230VAC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Material - Frame	Current Rating (Amps)	Material - Blade	Static Pressure	Static Pressure	Fan Type	Approval Agency	Air Flow	Air Flow	Width [y]	Weight [custom]	Weight [custom]	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	RPM	Termination	Power (Watts)	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Noise	Termination
Qualtek FAA1-09225QBHW31	Aluminum	60 mA	Plastic	28.9 Pa	0.116 in H2O	Tubeaxial	CE cURus TUV	34 CFM	0.952 m³/min	25 mm	0.507 lb	229.97 g	Ball	92 mm	92 mm	2400 RPM	2 Wire Leads	10 W	230 VAC	70 °C	-10 °C	30.1 dB(A)
Qualtek FAA1-09225NBHT31	Aluminum		Plastic	28.9 Pa	0.116 in H2O	Tubeaxial	CE cURus TUV	34 CFM	0.952 m³/min	25 mm	0.507 lb	229.97 g	Ball	92 mm	92 mm	2400 RPM		5 W	115 VAC	70 °C	-10 °C	30.1 dB(A)	2
Qualtek FAA1-09225NBMT31						Tubeaxial	CE cURus TUV	30.5 CFM	0.854 m³/min	25 mm	0.507 lb	229.97 g	Ball	92 mm	92 mm	2200 RPM		5 W	115 VAC	70 °C	-10 °C	26.8 dB(A)	2
Qualtek FAA1-09225QBMT31	Aluminum	60 mA	Plastic			Tubeaxial	CE cURus TUV	30.5 CFM	0.854 m³/min	25 mm	0.507 lb	229.97 g	Ball	92 mm	92 mm	2200 RPM		11.5 W	230 VAC	70 °C	-10 °C	26.8 dB(A)	2
Qualtek FAA1-09225NBHW31	Aluminum		Plastic	28.9 Pa	0.116 in H2O	Tubeaxial	CE cURus TUV	34 CFM	0.952 m³/min	25 mm	0.507 lb	229.97 g	Ball	92 mm	92 mm	2400 RPM	2 Wire Leads	5 W	115 VAC	70 °C	-10 °C	30.1 dB(A)
Qualtek FAA1-09225QBHT31	Aluminum	60 mA	Plastic	28.9 Pa	0.116 in H2O	Tubeaxial	CE cURus TUV	34 CFM	0.952 m³/min	25 mm	0.507 lb	229.97 g	Ball	92 mm	92 mm	2400 RPM		10 W	230 VAC	70 °C	-10 °C	30.1 dB(A)	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Square - 92mm L x 92mm H Ball 34.0 CFM (0.952m³/min) 2 Wire Leads
