FAA1-09225 Series

Manufacturer: Qualtek

Catalog

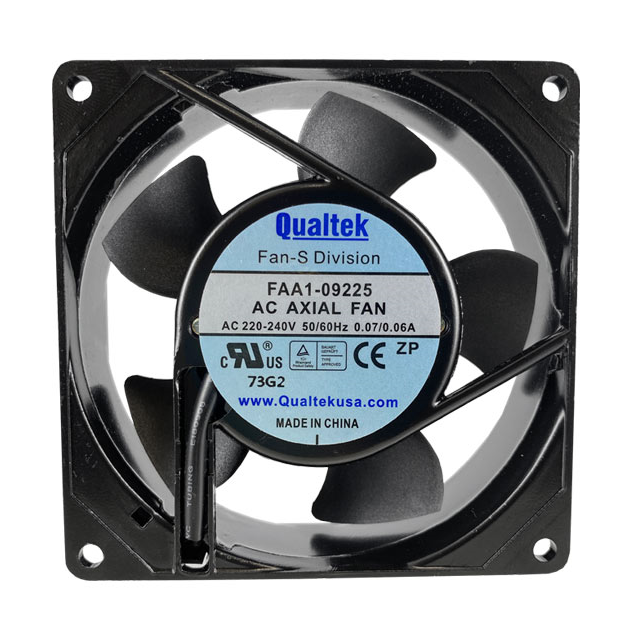

AC FANS AC FAN 92X25MM BALL 230VAC WIRE

Part	Material - Frame	Current Rating (Amps)	Material - Blade	Static Pressure	Static Pressure	Fan Type	Approval Agency	Air Flow	Air Flow	Width [y]	Weight [custom]	Weight [custom]	Bearing Type	Size / Dimension [y]	Size / Dimension [x]	RPM	Termination	Power (Watts)	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Noise	Termination
Qualtek FAA1-09225QBHW31	Aluminum	60 mA	Plastic	28.9 Pa	0.116 in H2O	Tubeaxial	CE cURus TUV	34 CFM	0.952 m³/min	25 mm	0.507 lb	229.97 g	Ball	92 mm	92 mm	2400 RPM	2 Wire Leads	10 W	230 VAC	70 °C	-10 °C	30.1 dB(A)
Qualtek FAA1-09225NBHT31	Aluminum		Plastic	28.9 Pa	0.116 in H2O	Tubeaxial	CE cURus TUV	34 CFM	0.952 m³/min	25 mm	0.507 lb	229.97 g	Ball	92 mm	92 mm	2400 RPM		5 W	115 VAC	70 °C	-10 °C	30.1 dB(A)	2
Qualtek FAA1-09225NBMT31						Tubeaxial	CE cURus TUV	30.5 CFM	0.854 m³/min	25 mm	0.507 lb	229.97 g	Ball	92 mm	92 mm	2200 RPM		5 W	115 VAC	70 °C	-10 °C	26.8 dB(A)	2
Qualtek FAA1-09225QBMT31	Aluminum	60 mA	Plastic			Tubeaxial	CE cURus TUV	30.5 CFM	0.854 m³/min	25 mm	0.507 lb	229.97 g	Ball	92 mm	92 mm	2200 RPM		11.5 W	230 VAC	70 °C	-10 °C	26.8 dB(A)	2
Qualtek FAA1-09225NBHW31	Aluminum		Plastic	28.9 Pa	0.116 in H2O	Tubeaxial	CE cURus TUV	34 CFM	0.952 m³/min	25 mm	0.507 lb	229.97 g	Ball	92 mm	92 mm	2400 RPM	2 Wire Leads	5 W	115 VAC	70 °C	-10 °C	30.1 dB(A)
Qualtek FAA1-09225QBHT31	Aluminum	60 mA	Plastic	28.9 Pa	0.116 in H2O	Tubeaxial	CE cURus TUV	34 CFM	0.952 m³/min	25 mm	0.507 lb	229.97 g	Ball	92 mm	92 mm	2400 RPM		10 W	230 VAC	70 °C	-10 °C	30.1 dB(A)	2
