Technical Specifications
Parameters and characteristics for this part
| Specification | C5044.41.01 |
|---|---|
| Cable Group | RG-11 |
| Cable Type | Coaxial |
| Conductor Material | Copper Coated, Steel |
| Conductor Strand | Solid |
| Dielectric Diameter [diameter] | 0.28 in |
| Dielectric Diameter [diameter] | 7.11 mm |
| Features | Quad Shield |
| Impedance | 75 Ohms |
| Jacket (Insulation) Diameter [diameter] | 10.29 mm |
| Jacket (Insulation) Diameter [diameter] | 0.405 " |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Length | Enter Number of Feet in Order Quantity |
| Length | 100 ' |
| Length | 30.48 m |
| Length [x] | 50 ft |
| Length [x] | 15.24 m |
| Shield Coverage | 100 %, 61 %, 40 % |
| Shield Material | Aluminum, Flexfoil® |
| Shield Type | Foil, Braid |
| Usage | CATV |
| VoP, Velocity of Propagation | 85 |
| Wire Gauge | 2.08 mm², 14.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | N/A | 0 | $ 0.94 | |
| 1 | $ 59.52 | |||
| 5 | $ 115.95 | |||
| Spool | 1 | $ 115.95 | ||
| 1 | $ 59.52 | |||
| 5 | $ 94.87 | |||
| 5 | $ 48.70 | |||
| 10 | $ 37.88 | |||
| 10 | $ 73.78 | |||
Description
General part information
C5044 Series

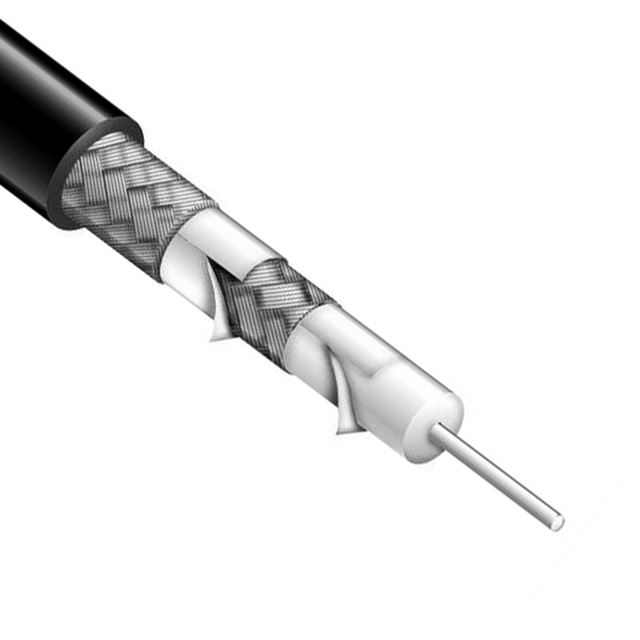

Coaxial Cable 14 AWG (2.08mm²) RG-11 100.0' (30.48m) 75 Ohms
