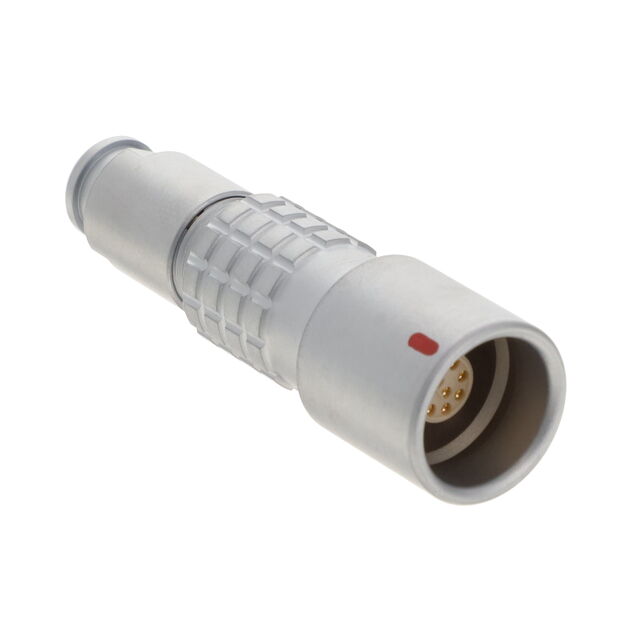

PHG.1K.310.CLLC55Z

Active

LEMO

CONN RCPT FMALE 10P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

PHG.1K.310.CLLC55Z

Active

LEMO

CONN RCPT FMALE 10P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PHG.1K.310.CLLC55Z

Backshell Material, Plating	Brass, Chrome
Cable Opening [custom]	5.5 mm
Cable Opening [custom]	0.201 in, 0.217 in
Cable Opening [custom]	5.1 mm
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	2.5 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP66/IP68
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	310
Shielding	Shielded

PHG.1K Series

...

Part	Contact Material	Shielding	Primary Material	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Orientation	Current Rating (Amps)	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Color	Ingress Protection	Number of Positions	Backshell Material, Plating	Features	Insert Material	Shell Size - Insert	Shell Material	Mounting Type	Connector Type	Material Flammability Rating	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Termination	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Number of Positions
LEMO PHG.1K.306.CLLC55	Bronze	Shielded	Metal	5.5 mm	0.201 in 0.217 in	5.1 mm	Push-Pull	59 Áin	1.5 Ám	Gold	G	7 A	Chrome	-55 °C	200 °C	Silver	IP66/IP68	6	Brass Chrome	Backshell	Polyetheretherketone (PEEK)	306	Brass	Free Hanging (In-Line)	Receptacle Female Sockets	UL94 V-0
LEMO PHG.1K.310.KLLC50Z	Bronze	Shielded	Metal				Push-Pull	59 Áin	1.5 Ám	Gold	G	2.5 A		-55 °C	200 °C	Black	IP66/IP68	10	Black Chrome Brass	Backshell	Polyetheretherketone (PEEK)	310	Brass	Free Hanging (In-Line)	Receptacle Female Sockets	UL94 V-0	4.6 mm	5 mm	0.181 in	0.197 in
LEMO PHG.1K.307.CLLC45	Bronze	Shielded	Metal				Push-Pull	59 Áin	1.5 Ám	Gold	G	7 A	Chrome	-55 °C	200 °C	Silver	IP66/IP68	7	Brass Chrome	Backshell	Polyetheretherketone (PEEK)	307	Brass	Free Hanging (In-Line)	Receptacle Female Sockets	UL94 V-0	4.1 mm	4.5 mm	0.161 in	0.177 in
LEMO PHG.1K.303.CYMC30	Bronze	Shielded	Metal				Push-Pull	59 Áin	1.5 Ám	Gold	G	12 A	Chrome	-55 °C	200 °C	Silver	IP66/IP68		Brass Chrome	Backshell	Polyetheretherketone (PEEK)	303	Brass	Free Hanging (In-Line)	Receptacle Female Sockets	UL94 V-0					Crimp	0.118 in	3 mm	0.102 in	2.6 mm
LEMO PHG.1K.310.CLLC55	Bronze	Shielded	Metal	5.5 mm	0.201 in 0.217 in	5.1 mm	Push-Pull	59 Áin	1.5 Ám	Gold	G	2.5 A	Chrome	-55 °C	200 °C	Silver	IP66/IP68	10	Brass Chrome	Backshell	Polyetheretherketone (PEEK)	310	Brass	Free Hanging (In-Line)	Receptacle Female Sockets	UL94 V-0
LEMO PHG.1K.316.CLLC60Z	Bronze	Shielded	Metal		0.22 in 0.236 in	5.6 mm 6 mm	Push-Pull	59 Áin	1.5 Ám	Gold	G	1.5 A	Chrome	-55 °C	200 °C	Silver	IP66/IP68		Brass Chrome	Backshell	Polyetheretherketone (PEEK)	316	Brass	Free Hanging (In-Line)	Receptacle Female Sockets	UL94 V-0										16
LEMO PHG.1K.304.CLLC30	Bronze	Shielded	Metal				Push-Pull	59 Áin	1.5 Ám	Gold	G	10 A	Chrome	-55 °C	200 °C	Silver	IP66/IP68	4	Brass Chrome	Backshell	Polyetheretherketone (PEEK)	304	Brass	Free Hanging (In-Line)	Receptacle Female Sockets	UL94 V-0						0.118 in	3 mm	0.102 in	2.6 mm
LEMO PHG.1K.310.CLLC55Z	Bronze	Shielded	Metal	5.5 mm	0.201 in 0.217 in	5.1 mm	Push-Pull	59 Áin	1.5 Ám	Gold	G	2.5 A	Chrome	-55 °C	200 °C	Silver	IP66/IP68	10	Brass Chrome	Backshell	Polyetheretherketone (PEEK)	310	Brass	Free Hanging (In-Line)	Receptacle Female Sockets	UL94 V-0
LEMO PHG.1K.305.CLLC55Z	Bronze	Shielded	Metal	5.5 mm	0.201 in 0.217 in	5.1 mm	Push-Pull	59 Áin	1.5 Ám	Gold	G	9 A	Chrome	-55 °C	200 °C	Silver	IP66/IP68		Brass Chrome	Backshell	Polyetheretherketone (PEEK)	305	Brass	Free Hanging (In-Line)	Receptacle Female Sockets	UL94 V-0
LEMO PHG.1K.308.CYMC45Z	Bronze	Shielded	Metal				Push-Pull	59 Áin	1.5 Ám	Gold	G	5 A	Chrome	-55 °C	200 °C	Silver	IP66/IP68	8	Brass Chrome	Backshell	Polyetheretherketone (PEEK)	308	Brass	Free Hanging (In-Line)	Receptacle Female Sockets	UL94 V-0	4.1 mm	4.5 mm	0.161 in	0.177 in	Crimp
