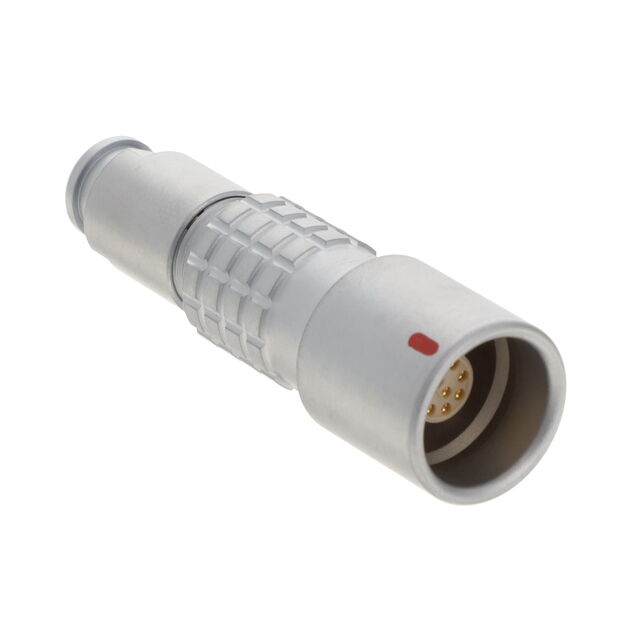

PHG.1K Series
Manufacturer: LEMO
Catalog
CONN RCPT FMALE 6P GOLD SLDR CUP
...
| Part | Contact Material | Shielding | Primary Material | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [custom] | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Mating | Orientation | Current Rating (Amps) | Shell Finish | Operating Temperature [Min] | Operating Temperature [Max] | Color | Ingress Protection | Number of Positions | Backshell Material, Plating | Features | Insert Material | Shell Size - Insert | Shell Material | Mounting Type | Connector Type | Material Flammability Rating | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Termination | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bronze | Shielded | Metal | 5.5 mm | 0.201 in 0.217 in | 5.1 mm | Push-Pull | 59 Áin | 1.5 Ám | Gold | G | 7 A | Chrome | -55 °C | 200 °C | Silver | IP66/IP68 | 6 | Brass Chrome | Backshell | Polyetheretherketone (PEEK) | 306 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | UL94 V-0 | |||||||||||
Bronze | Shielded | Metal | Push-Pull | 59 Áin | 1.5 Ám | Gold | G | 2.5 A | -55 °C | 200 °C | Black | IP66/IP68 | 10 | Black Chrome Brass | Backshell | Polyetheretherketone (PEEK) | 310 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | UL94 V-0 | 4.6 mm | 5 mm | 0.181 in | 0.197 in | |||||||||||
Bronze | Shielded | Metal | Push-Pull | 59 Áin | 1.5 Ám | Gold | G | 7 A | Chrome | -55 °C | 200 °C | Silver | IP66/IP68 | 7 | Brass Chrome | Backshell | Polyetheretherketone (PEEK) | 307 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | UL94 V-0 | 4.1 mm | 4.5 mm | 0.161 in | 0.177 in | ||||||||||
Bronze | Shielded | Metal | Push-Pull | 59 Áin | 1.5 Ám | Gold | G | 12 A | Chrome | -55 °C | 200 °C | Silver | IP66/IP68 | Brass Chrome | Backshell | Polyetheretherketone (PEEK) | 303 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | UL94 V-0 | Crimp | 0.118 in | 3 mm | 0.102 in | 2.6 mm | ||||||||||
Bronze | Shielded | Metal | 5.5 mm | 0.201 in 0.217 in | 5.1 mm | Push-Pull | 59 Áin | 1.5 Ám | Gold | G | 2.5 A | Chrome | -55 °C | 200 °C | Silver | IP66/IP68 | 10 | Brass Chrome | Backshell | Polyetheretherketone (PEEK) | 310 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | UL94 V-0 | |||||||||||
Bronze | Shielded | Metal | 0.22 in 0.236 in | 5.6 mm 6 mm | Push-Pull | 59 Áin | 1.5 Ám | Gold | G | 1.5 A | Chrome | -55 °C | 200 °C | Silver | IP66/IP68 | Brass Chrome | Backshell | Polyetheretherketone (PEEK) | 316 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | UL94 V-0 | 16 | ||||||||||||
Bronze | Shielded | Metal | Push-Pull | 59 Áin | 1.5 Ám | Gold | G | 10 A | Chrome | -55 °C | 200 °C | Silver | IP66/IP68 | 4 | Brass Chrome | Backshell | Polyetheretherketone (PEEK) | 304 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | UL94 V-0 | 0.118 in | 3 mm | 0.102 in | 2.6 mm | ||||||||||
Bronze | Shielded | Metal | 5.5 mm | 0.201 in 0.217 in | 5.1 mm | Push-Pull | 59 Áin | 1.5 Ám | Gold | G | 2.5 A | Chrome | -55 °C | 200 °C | Silver | IP66/IP68 | 10 | Brass Chrome | Backshell | Polyetheretherketone (PEEK) | 310 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | UL94 V-0 | |||||||||||
Bronze | Shielded | Metal | 5.5 mm | 0.201 in 0.217 in | 5.1 mm | Push-Pull | 59 Áin | 1.5 Ám | Gold | G | 9 A | Chrome | -55 °C | 200 °C | Silver | IP66/IP68 | Brass Chrome | Backshell | Polyetheretherketone (PEEK) | 305 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | UL94 V-0 | ||||||||||||
Bronze | Shielded | Metal | Push-Pull | 59 Áin | 1.5 Ám | Gold | G | 5 A | Chrome | -55 °C | 200 °C | Silver | IP66/IP68 | 8 | Brass Chrome | Backshell | Polyetheretherketone (PEEK) | 308 | Brass | Free Hanging (In-Line) | Receptacle Female Sockets | UL94 V-0 | 4.1 mm | 4.5 mm | 0.161 in | 0.177 in | Crimp |
