Technical Specifications
Parameters and characteristics for this part
| Specification | OSTOQ063550 |
|---|---|
| Contact Material | Brass |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.138 in |
| Contact Tail Length | 3.5 mm |
| Features | Mating Flange |
| Header Orientation | Vertical |
| Housing Material | Thermoplastic |
| Insulation Height [z] | 3.5 mm |
| Insulation Height [z] | 0.138 " |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Solder, Through Hole |
| Number of Levels | 1 |
| Number of Positions | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch | 3.81 mm |
| Pitch | 0.15 in |
| Positions Per Level | 6 |
| Termination Style | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Voltage - UL | 300 V |
| Part | Housing Material | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] | Mounting Type | Contact Tail Length | Contact Tail Length | Contact Material | Contact Mating Finish | Positions Per Level | Features | Number of Levels | Type | Termination Style | Header Orientation | Pitch | Pitch | Number of Positions | Voltage - UL | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
On Shore Technology Inc. | Thermoplastic | UL94 V-0 | 3.5 mm | 0.138 " | Solder Through Hole | 0.138 in | 3.5 mm | Brass | Tin | 6 | Mating Flange | 1 | Header Male Pins Shrouded (4 Side) | Solder | Vertical | 3.81 mm | 0.15 in | 6 | 300 V | -30 ░C | 105 ░C |

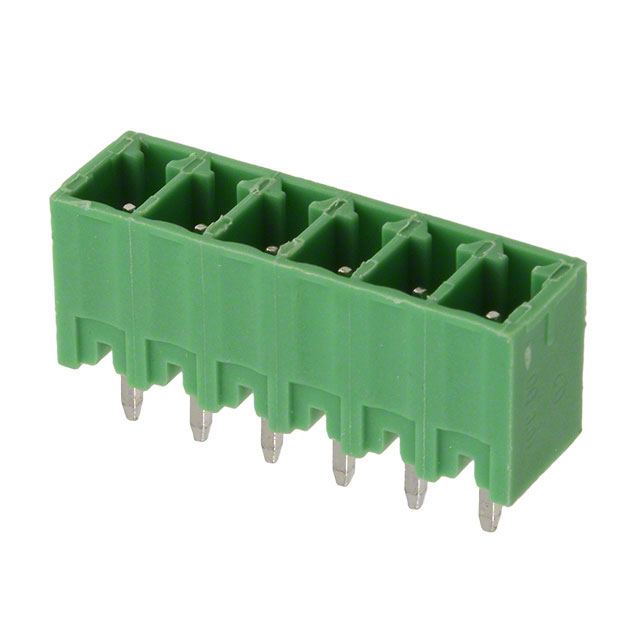

On Shore Technology Inc. | Thermoplastic | UL94 V-0 | 3.5 mm | 0.138 " | Solder Through Hole | 0.138 in | 3.5 mm | Brass | Tin | 6 | Mating Flange | 1 | Header Male Pins Shrouded (4 Side) | Solder | Vertical | 3.5 mm | 0.138 " | 6 | 300 V | -30 ░C | 105 ░C |
 On Shore Technology Inc. | Thermoplastic | 4 mm | 0.157 in | Solder Through Hole | 0.157 in | 4 mm | Tin | 6 | 1 | Header Male Pins Shrouded (4 Side) | Solder | 90° Right Angle | 5.08 mm | 0.2 in | 6 | 300 V | -40 C | 115 °C | |||
On Shore Technology Inc. | Thermoplastic | 4 mm | 0.157 in | Solder Through Hole | 0.157 in | 4 mm | Brass | Tin | 6 | 1 | Header Male Pins Shrouded (2 Side) | Solder | Vertical | 7.5 mm | 0.295 in | 6 | 300 V | -30 ░C | 105 ░C | ||
On Shore Technology Inc. | Thermoplastic | UL94 V-0 | 4 mm | 0.157 in | Solder Through Hole | 0.157 in | 4 mm | Brass | Tin | 6 | Mating Flange | 1 | Header Male Pins Shrouded (4 Side) | Solder | Vertical | 5 mm | 0.197 in | 6 | 300 V | -30 ░C | 105 ░C |

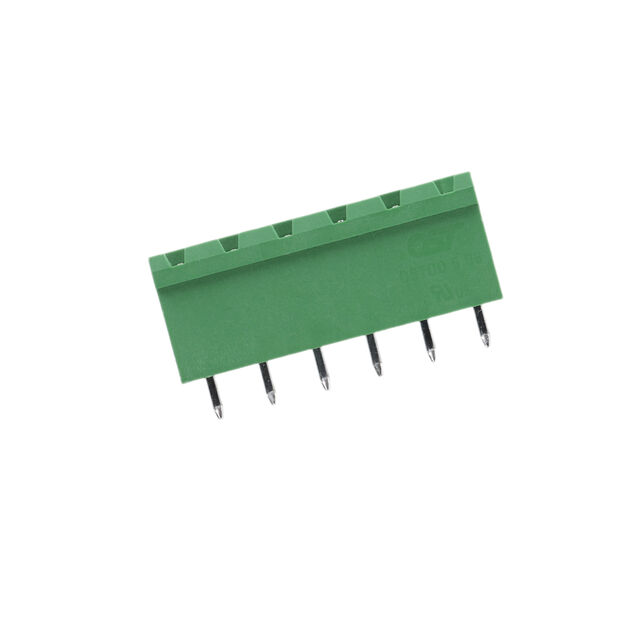

 On Shore Technology Inc. | Thermoplastic | 3.5 mm | 0.138 " | Solder Through Hole | 0.138 in | 3.5 mm | Brass | Tin | 6 | 1 | Header Male Pins Shrouded (4 Side) | Solder | Vertical | 3.81 mm | 0.15 in | 6 | 300 V | -30 ░C | 105 ░C | ||
On Shore Technology Inc. | Thermoplastic | UL94 V-0 | 4 mm | 0.157 in | Solder Through Hole | 0.157 in | 4 mm | Brass | Tin | 6 | Mating Flange | 1 | Header Male Pins Shrouded (4 Side) | Solder | Vertical | 5.08 mm | 0.2 in | 6 | 300 V | -30 ░C | 105 ░C |

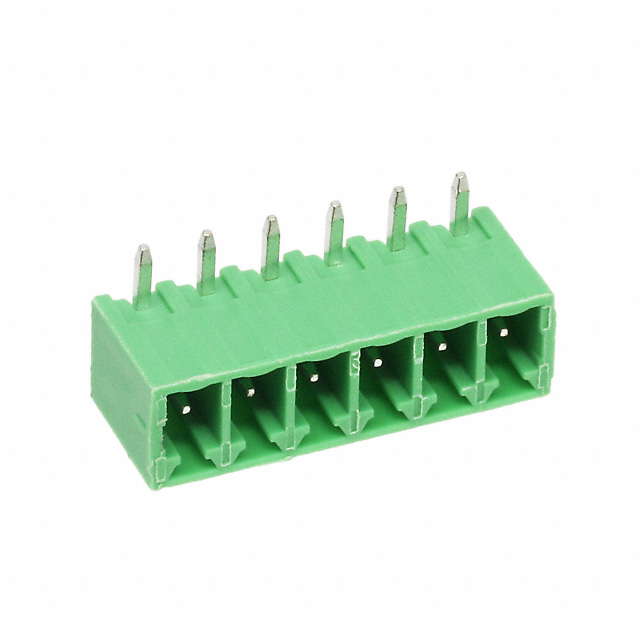

 On Shore Technology Inc. | Thermoplastic | 3.5 mm | 0.138 " | Solder Through Hole | 0.138 in | 3.5 mm | Brass | Tin | 6 | 1 | Header Male Pins Shrouded (4 Side) | Solder | 90° Right Angle | 3.5 mm | 0.138 " | 6 | 300 V | -30 ░C | 105 ░C | ||
 On Shore Technology Inc. | Thermoplastic | 4 mm | 0.157 in | Solder Through Hole | 0.157 in | 4 mm | Brass | Tin | 6 | 1 | Header Male Pins Shrouded (2 Side) | Solder | Vertical | 5.08 mm | 0.2 in | 6 | 300 V | -30 ░C | 105 ░C | ||
On Shore Technology Inc. | Thermoplastic | 4 mm | 0.157 in | Solder Through Hole | 0.157 in | 4 mm | Brass | Tin | 6 | 1 | Header Male Pins Shrouded (2 Side) | Solder | Vertical | 5 mm | 0.197 in | 6 | 300 V | -30 ░C | 105 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 54 | $ 1.31 | |
| N/A | 0 | $ 1.04 | ||
Description
General part information
OSTOQ06 Series
6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Solder
