OSTOQ06 Series

Catalog

TERM BLOCK HDR 6POS VERT 3.81MM

Part	Housing Material	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Mounting Type	Contact Tail Length	Contact Tail Length	Contact Material	Contact Mating Finish	Positions Per Level	Features	Number of Levels	Type	Termination Style	Header Orientation	Pitch	Pitch	Number of Positions	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]
On Shore Technology Inc. OSTOQ063550	Thermoplastic	UL94 V-0	3.5 mm	0.138 "	Solder Through Hole	0.138 in	3.5 mm	Brass	Tin	6	Mating Flange	1	Header Male Pins Shrouded (4 Side)	Solder	Vertical	3.81 mm	0.15 in	6	300 V	-30 ░C	105 ░C
On Shore Technology Inc. OSTOQ061550	Thermoplastic	UL94 V-0	3.5 mm	0.138 "	Solder Through Hole	0.138 in	3.5 mm	Brass	Tin	6	Mating Flange	1	Header Male Pins Shrouded (4 Side)	Solder	Vertical	3.5 mm	0.138 "	6	300 V	-30 ░C	105 ░C

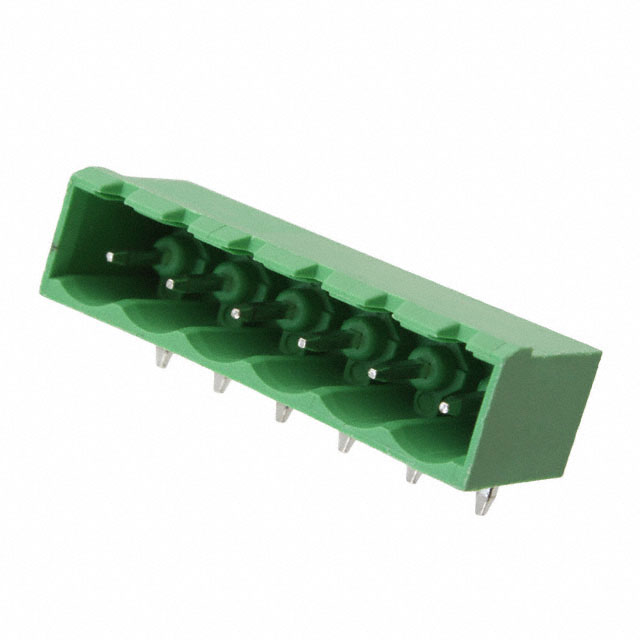

On Shore Technology Inc. OSTOQ065451	Thermoplastic		4 mm	0.157 in	Solder Through Hole	0.157 in	4 mm		Tin	6		1	Header Male Pins Shrouded (4 Side)	Solder	90° Right Angle	5.08 mm	0.2 in	6	300 V	-40 C	115 °C
On Shore Technology Inc. OSTOQ06A050	Thermoplastic		4 mm	0.157 in	Solder Through Hole	0.157 in	4 mm	Brass	Tin	6		1	Header Male Pins Shrouded (2 Side)	Solder	Vertical	7.5 mm	0.295 in	6	300 V	-30 ░C	105 ░C
On Shore Technology Inc. OSTOQ067550	Thermoplastic	UL94 V-0	4 mm	0.157 in	Solder Through Hole	0.157 in	4 mm	Brass	Tin	6	Mating Flange	1	Header Male Pins Shrouded (4 Side)	Solder	Vertical	5 mm	0.197 in	6	300 V	-30 ░C	105 ░C

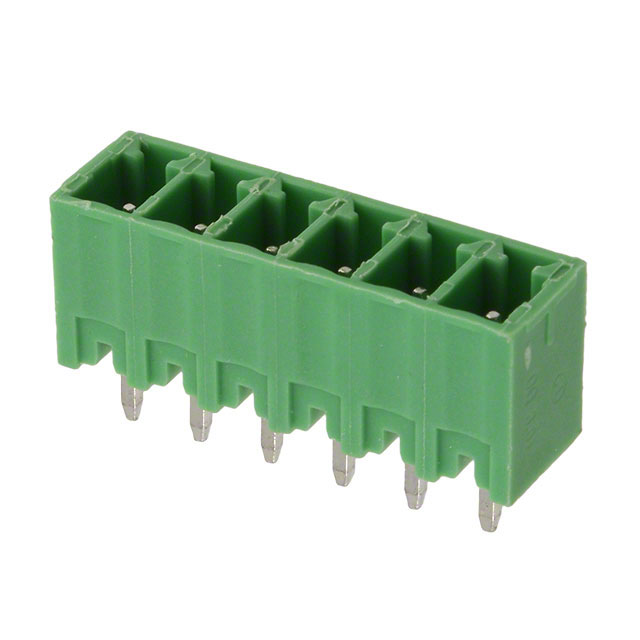

On Shore Technology Inc. OSTOQ063250	Thermoplastic		3.5 mm	0.138 "	Solder Through Hole	0.138 in	3.5 mm	Brass	Tin	6		1	Header Male Pins Shrouded (4 Side)	Solder	Vertical	3.81 mm	0.15 in	6	300 V	-30 ░C	105 ░C
On Shore Technology Inc. OSTOQ065550	Thermoplastic	UL94 V-0	4 mm	0.157 in	Solder Through Hole	0.157 in	4 mm	Brass	Tin	6	Mating Flange	1	Header Male Pins Shrouded (4 Side)	Solder	Vertical	5.08 mm	0.2 in	6	300 V	-30 ░C	105 ░C

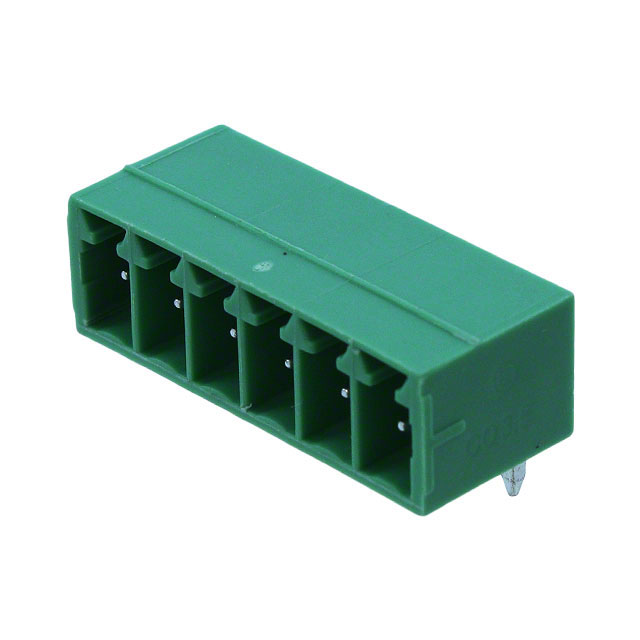

On Shore Technology Inc. OSTOQ061251	Thermoplastic		3.5 mm	0.138 "	Solder Through Hole	0.138 in	3.5 mm	Brass	Tin	6		1	Header Male Pins Shrouded (4 Side)	Solder	90° Right Angle	3.5 mm	0.138 "	6	300 V	-30 ░C	105 ░C

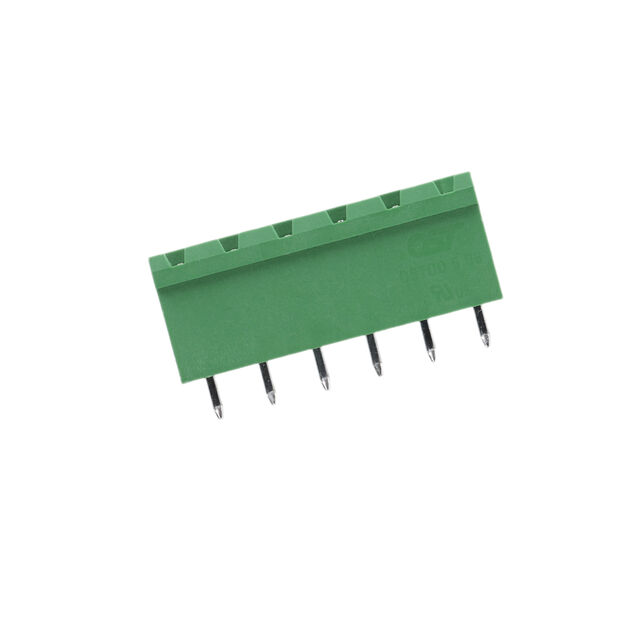

On Shore Technology Inc. OSTOQ065350	Thermoplastic		4 mm	0.157 in	Solder Through Hole	0.157 in	4 mm	Brass	Tin	6		1	Header Male Pins Shrouded (2 Side)	Solder	Vertical	5.08 mm	0.2 in	6	300 V	-30 ░C	105 ░C
On Shore Technology Inc. OSTOQ067050	Thermoplastic		4 mm	0.157 in	Solder Through Hole	0.157 in	4 mm	Brass	Tin	6		1	Header Male Pins Shrouded (2 Side)	Solder	Vertical	5 mm	0.197 in	6	300 V	-30 ░C	105 ░C
