Connectors, Interconnects

R113182000W

Active

Radiall USA, Inc.

MCX / RIGHT ANGLE PLUG CRIMP TYP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Connectors, Interconnects

R113182000W

Active

Radiall USA, Inc.

MCX / RIGHT ANGLE PLUG CRIMP TYP

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R113182000W

Body Finish	Gold
Body Material	Brass
Cable Group	188, 316, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Plug, Male Pin
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 C
Operating Temperature [Min]	-55 C
Shield Termination	Crimp
Voltage Rating	335 V

R11318 Series

Part	Voltage Rating	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Mating Cycles	Dielectric Material	Body Material	Housing Color	Contact Termination	Connector Style	Impedance	Mounting Type	Cable Group	Number of Ports	Frequency - Max [Max]	Fastening Type	Center Contact Material	Shield Termination	Connector Type	Cable Group	Includes	Features
Radiall USA, Inc. R113182000W	335 V	Gold	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Brass	Gold	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	188 316 RG-174	1	6000 MHz	Snap-On	Beryllium Copper	Crimp	Plug Male Pin
Radiall USA, Inc. R113182020W	170 V	White Bronze	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Bronze	Silver	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	316 RG-188	1	6000 MHz	Snap-On	Brass	Crimp	Plug Male Pin
Radiall USA, Inc. R113181000W	170 V	Gold	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Brass	Gold	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	RG-178	1	6000 MHz	Snap-On	Brass	Crimp	Plug Male Pin	196

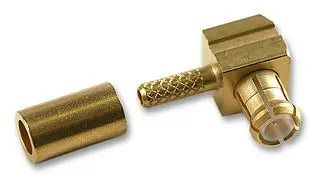

Radiall USA, Inc. R113181000	170 V	Gold	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Brass	Gold	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	RG-178	1	6000 MHz	Snap-On	Brass	Crimp	Plug Male Pin	196	1 Connector 1 Contact 1 End Cap 1 Ferrule 1 Insulator
Radiall USA, Inc. R113180000	170 V	Gold	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Brass	Gold	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	RG-178 Double Braid	1	6000 MHz	Snap-On	Brass	Crimp	Plug Male Pin

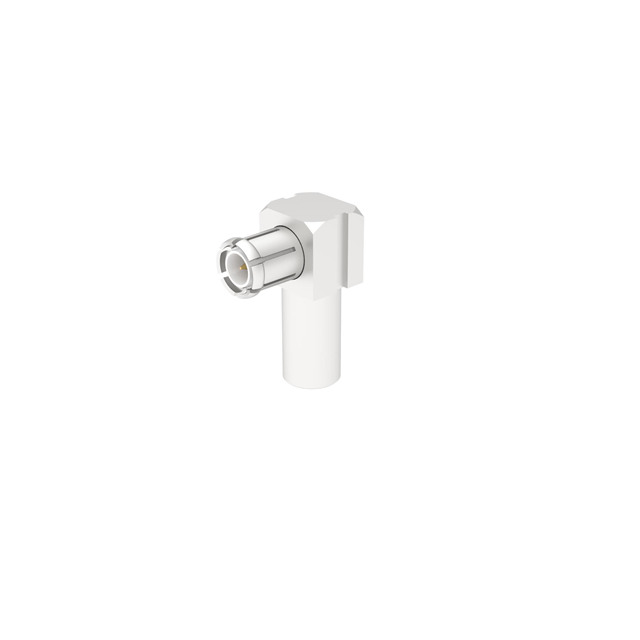

Radiall USA, Inc. R113182020	170 V	White Bronze	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Bronze	Silver	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	316 RG-188	1	6000 MHz	Snap-On	Brass	Crimp	Plug Male Pin
Radiall USA, Inc. R113181020W	170 V	White Bronze	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Brass	Silver	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	RG-178	1	6000 MHz	Snap-On	Brass	Crimp	Plug Male Pin	196

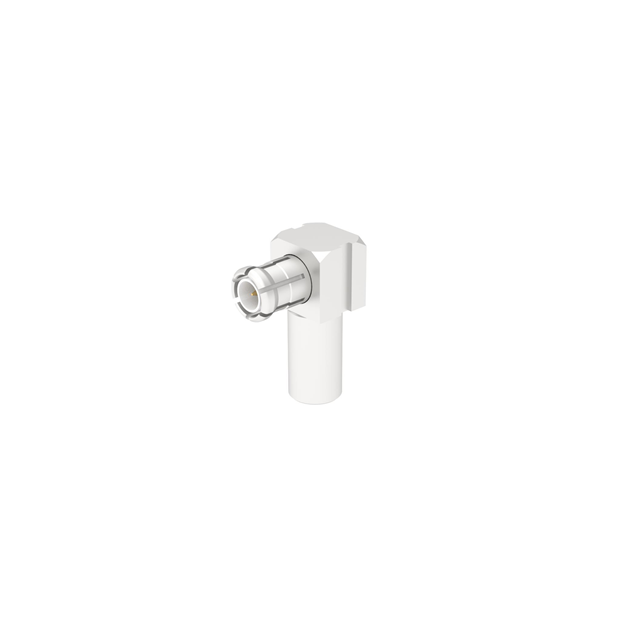

Radiall USA, Inc. R113181097	170 V	White Bronze	125 °C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Bronze	Silver	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	RG-178	1	6000 MHz	Snap-On	Bronze	Crimp	Plug Male Pin			Non-Magnetic
Radiall USA, Inc. R113183000W	335 V	Gold	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Brass	Gold	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	RG-316 Double Braid	1	6000 MHz	Snap-On	Beryllium Copper	Crimp	Plug Male Pin
Radiall USA, Inc. R113181020	170 V	White Bronze	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Brass	Silver	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	RG-178	1	6000 MHz	Snap-On	Brass	Crimp	Plug Male Pin	196

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.03
		10	$ 9.93
		25	$ 9.36
		50	$ 9.12
		100	$ 8.88
		250	$ 7.92
		500	$ 7.44
		1000	$ 6.57
	N/A	14	$ 10.27

Description

General part information

R11318 Series

MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
