R11318 Series

Catalog

MCX / RIGHT ANGLE PLUG CRIMP TYP

Part	Voltage Rating	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Mating Cycles	Dielectric Material	Body Material	Housing Color	Contact Termination	Connector Style	Impedance	Mounting Type	Cable Group	Number of Ports	Frequency - Max [Max]	Fastening Type	Center Contact Material	Shield Termination	Connector Type	Cable Group	Includes	Features
Radiall USA, Inc. R113182000W	335 V	Gold	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Brass	Gold	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	188 316 RG-174	1	6000 MHz	Snap-On	Beryllium Copper	Crimp	Plug Male Pin
Radiall USA, Inc. R113182020W	170 V	White Bronze	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Bronze	Silver	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	316 RG-188	1	6000 MHz	Snap-On	Brass	Crimp	Plug Male Pin
Radiall USA, Inc. R113181000W	170 V	Gold	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Brass	Gold	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	RG-178	1	6000 MHz	Snap-On	Brass	Crimp	Plug Male Pin	196

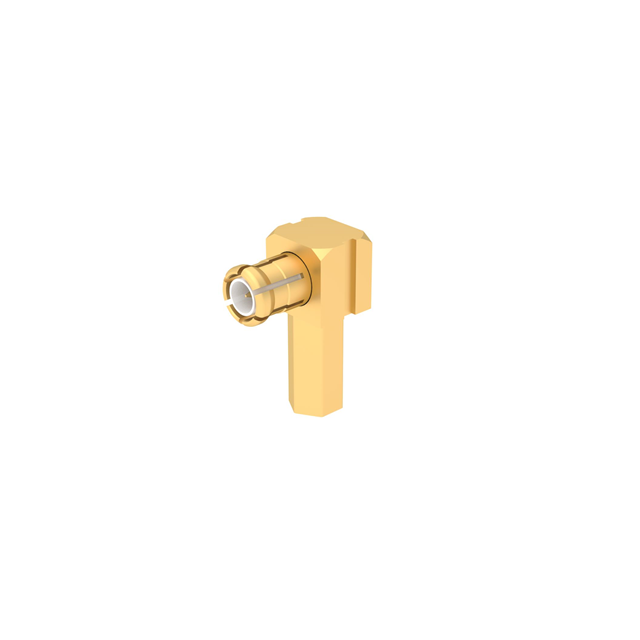

Radiall USA, Inc. R113181000	170 V	Gold	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Brass	Gold	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	RG-178	1	6000 MHz	Snap-On	Brass	Crimp	Plug Male Pin	196	1 Connector 1 Contact 1 End Cap 1 Ferrule 1 Insulator
Radiall USA, Inc. R113180000	170 V	Gold	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Brass	Gold	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	RG-178 Double Braid	1	6000 MHz	Snap-On	Brass	Crimp	Plug Male Pin
Radiall USA, Inc. R113182020	170 V	White Bronze	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Bronze	Silver	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	316 RG-188	1	6000 MHz	Snap-On	Brass	Crimp	Plug Male Pin
Radiall USA, Inc. R113181020W	170 V	White Bronze	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Brass	Silver	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	RG-178	1	6000 MHz	Snap-On	Brass	Crimp	Plug Male Pin	196
Radiall USA, Inc. R113181097	170 V	White Bronze	125 °C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Bronze	Silver	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	RG-178	1	6000 MHz	Snap-On	Bronze	Crimp	Plug Male Pin			Non-Magnetic
Radiall USA, Inc. R113183000W	335 V	Gold	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Brass	Gold	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	RG-316 Double Braid	1	6000 MHz	Snap-On	Beryllium Copper	Crimp	Plug Male Pin
Radiall USA, Inc. R113181020	170 V	White Bronze	155 C	-55 C	Gold	500	Polytetrafluoroethylene (PTFE)	Brass	Silver	Crimp	MCX	50 Ohms	Free Hanging (In-Line) Right Angle	RG-178	1	6000 MHz	Snap-On	Brass	Crimp	Plug Male Pin	196
