Technical Specifications

Parameters and characteristics for this part

Specification	RDED-9SA-LNA(4-40)(55)

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.203 çm
Contact Finish Thickness	8 µin
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Mating Side, Female Screwlock, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount, Right Angle
Number of Positions	9
Number of Rows [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 C
Shell Material, Finish	Steel, Nickel Plated
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	DE, E
Termination	Solder
Voltage Rating	350 VDC

RDED Series

D-Sub Standard Connectors

Part	Voltage Rating	Dielectric Material	Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Flange Feature	Current Rating (Amps)	Material Flammability Rating	Contact Type	Shell Material, Finish	Connector Type	Termination	Contact Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Style	Mounting Type	Number of Positions	Features	Flange Feature

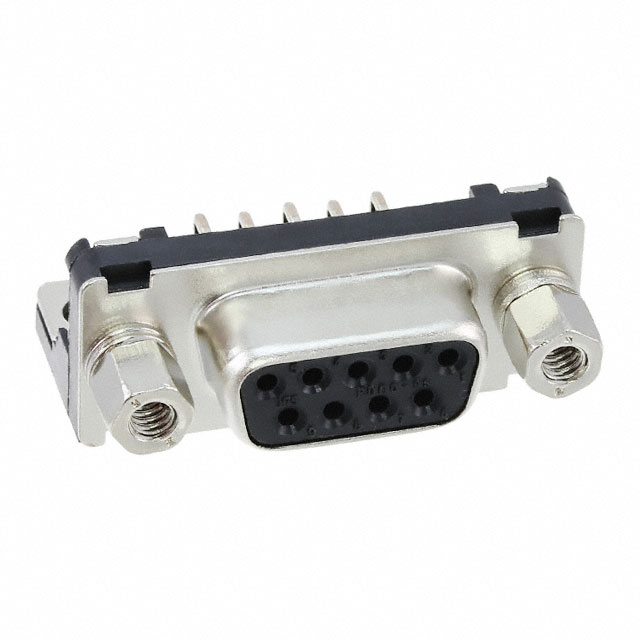

Hirose Electric Co Ltd RDED-9SA-LNA(4-40)(55)	350 VDC	Polybutylene Terephthalate (PBT)	Black	Phosphor Bronze	-55 C	85 °C	0.203 çm	8 µin	2	4-40 Mating Side Female Screwlock	3 A	UL94 V-0	Signal	Nickel Plated Steel	Receptacle Female Sockets	Solder	Gold	1	DE E	D-Sub	Panel Mount Right Angle Through Hole	9

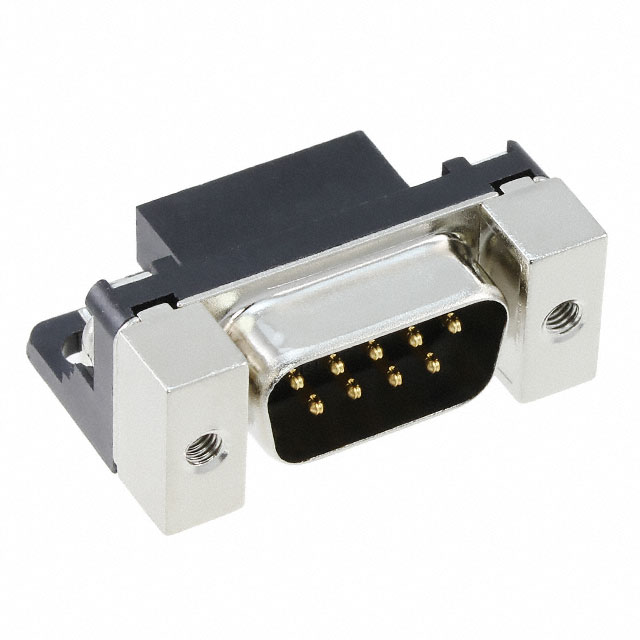

Hirose Electric Co Ltd RDED-9PE-LN(55)	350 VDC	Polybutylene Terephthalate (PBT)	Black	Phosphor Bronze	-55 C	85 °C	0.203 çm	8 µin	2		3 A	UL94 V-0	Signal	Nickel Plated Steel	Plug Male Pins	Solder	Gold	1	DE E	D-Sub	Panel Mount Right Angle Through Hole	9	Board Lock
Hirose Electric Co Ltd RDED-9PE1/M2.6(57)

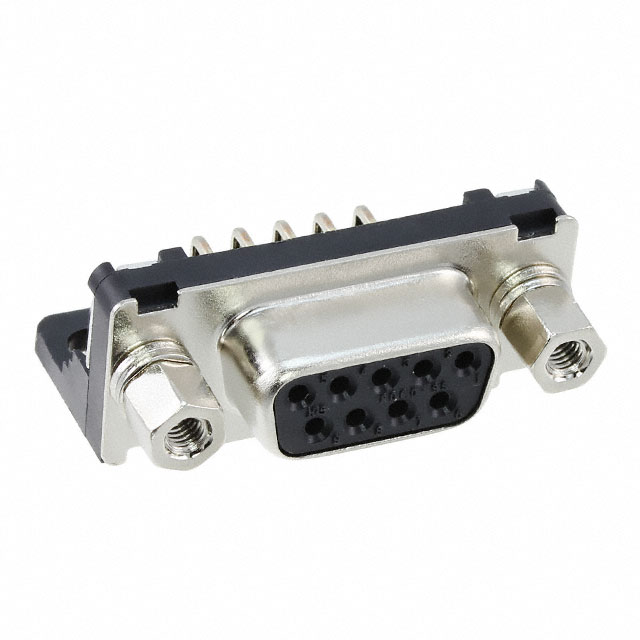

Hirose Electric Co Ltd RDED-9SE-LNA(4-40)(55)	350 VDC	Polybutylene Terephthalate (PBT)	Black	Phosphor Bronze	-55 C	85 °C	0.203 çm	8 µin	2	4-40 Mating Side Female Screwlock	3 A	UL94 V-0	Signal	Nickel Plated Steel	Receptacle Female Sockets	Solder	Gold	1	DE E	D-Sub	Panel Mount Right Angle Through Hole	9
Hirose Electric Co Ltd RDED-9SE-LNA(55)	350 VDC	Polybutylene Terephthalate (PBT)	Black	Phosphor Bronze	-55 C	85 °C	0.203 çm	8 µin	2		3 A	UL94 V-0	Signal	Nickel Plated Steel	Receptacle Female Sockets	Solder	Gold	1	DE E	D-Sub	Panel Mount Right Angle Through Hole	9

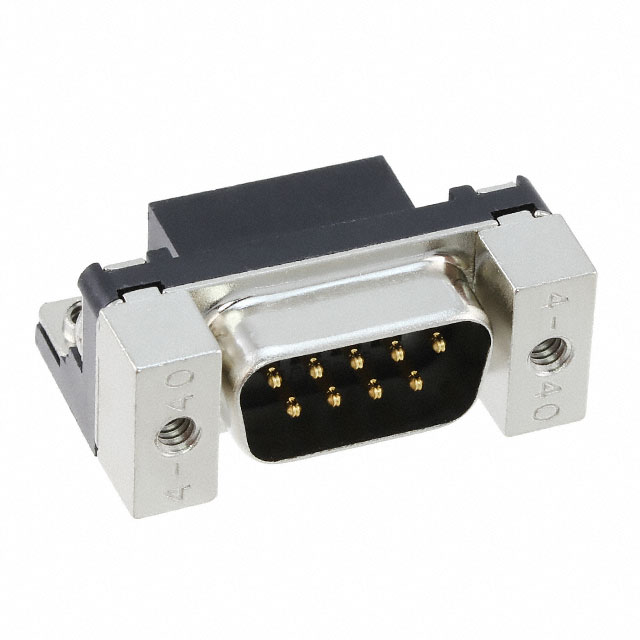

Hirose Electric Co Ltd RDED-9P-LN(4-40)(55)	350 VDC	Polybutylene Terephthalate (PBT)	Black	Phosphor Bronze	-55 C	85 °C	0.203 çm	8 µin	2	Housing/Shell	3 A	UL94 V-0	Signal	Nickel Plated Steel	Plug Male Pins	Solder	Gold	1	DE E	D-Sub	Panel Mount Right Angle Through Hole	9		4-40

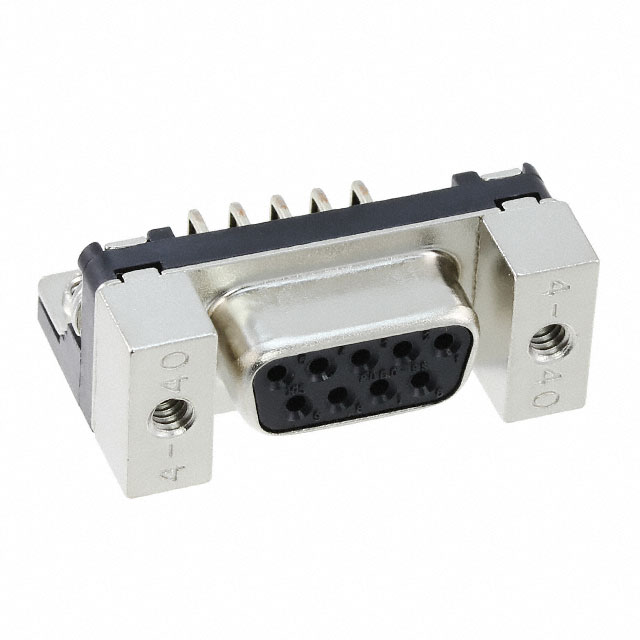

Hirose Electric Co Ltd RDED-9S-LN(4-40)(55)	350 VDC	Polybutylene Terephthalate (PBT)	Black	Phosphor Bronze	-55 C	85 °C	0.203 çm	8 µin	2	Housing/Shell	3 A	UL94 V-0	Signal	Nickel Plated Steel	Receptacle Female Sockets	Solder	Gold	1	DE E	D-Sub	Panel Mount Right Angle Through Hole	9		4-40
