Cables, Wires

C2404A.41.10

Active

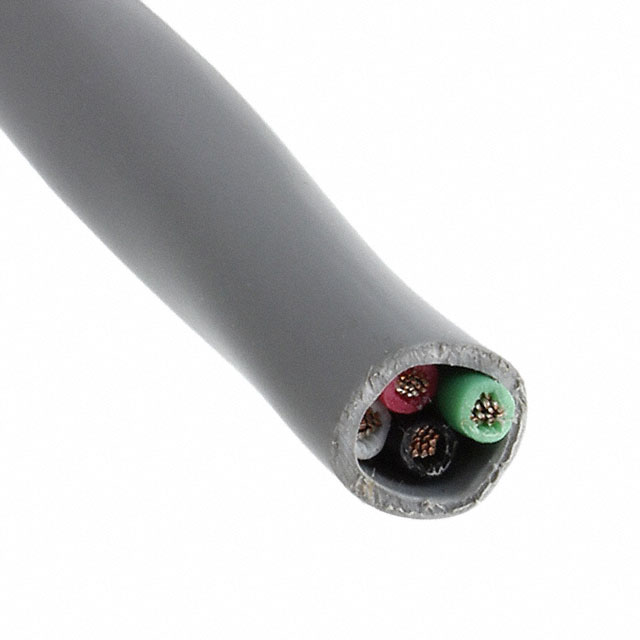

CABLE 4COND 18AWG GRAY

Search across all available documentation for this part.

Cables, Wires

Active

CABLE 4COND 18AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C2404A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.258 in
Jacket (Insulation) Diameter [diameter]	6.55 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.813 mm
Jacket (Insulation) Thickness	0.032 in
Jacket Color	Gray
Length	304.8 m
Length	1000 ft
Number of Conductors	4
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 ░C
Usage	Communication, Control
Voltage	300 VDC
Wire Gauge	18 AWG

Part	Wire Gauge	Cable Type	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Jacket (Insulation) Material	Conductor Material	Jacket Color	Number of Conductors	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]
Prysmian Group C2404A.41.10	18 AWG	Multi-Conductor	304.8 m	1000 ft	0.813 mm	0.032 in	Communication Control	Poly-Vinyl Chloride (PVC)	Copper Tinned	Gray	4	Poly-Vinyl Chloride (PVC)	0.258 in	6.55 mm	16	30 AWG	300 VDC	80 °C	-20 ░C
Prysmian Group C2404A.41.10	18 AWG	Multi-Conductor	304.8 m	1000 ft	0.813 mm	0.032 in	Communication Control	Poly-Vinyl Chloride (PVC)	Copper Tinned	Gray	4	Poly-Vinyl Chloride (PVC)	0.258 in	6.55 mm	16	30 AWG	300 VDC	80 °C	-20 ░C	100 ft	30.5 m
Prysmian Group C2404A.38.10	18 AWG	Multi-Conductor	15.24 m 152.4 m	50 ft 500 ft	0.813 mm	0.032 in	Communication Control	Poly-Vinyl Chloride (PVC)	Copper Tinned	Gray	4	Poly-Vinyl Chloride (PVC)	0.258 in	6.55 mm	16	30 AWG	300 VDC	80 °C	-20 ░C	100 ft	30.5 m
Prysmian Group C2404A.38.10	18 AWG	Multi-Conductor	152.4 m	500 ft	0.813 mm	0.032 in	Communication Control	Poly-Vinyl Chloride (PVC)	Copper Tinned	Gray	4	Poly-Vinyl Chloride (PVC)	0.258 in	6.55 mm	16	30 AWG	300 VDC	80 °C	-20 ░C	100 ft	30.5 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Gray 18 AWG 1000.0' (304.8m)
