Technical Specifications
Parameters and characteristics for this part
| Specification | PHG.0B.304.CLLD42 |
|---|---|
| Backshell Material, Plating | Brass, Chrome |
| Cable Opening [Max] | 4.2 mm |
| Cable Opening [Max] | 0.165 " |
| Cable Opening [Min] | 0.126 " |
| Cable Opening [Min] | 3.2 mm |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.5 Ám |
| Contact Finish Thickness - Mating | 59 Áin |
| Contact Material | Bronze |
| Current Rating (Amps) | 7 A |
| Fastening Type | Push-Pull |
| Features | Backshell |
| Ingress Protection | IP50 - Dust Protected |
| Insert Material | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 C |
| Orientation [custom] | G |
| Primary Material | Metal |
| Shell Finish | Chrome |
| Shell Material | Brass |
| Shell Size - Insert | 304 |
| Shielding | Shielded |
...
| Part | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Ingress Protection | Shell Size - Insert | Insert Material | Number of Positions | Current Rating (Amps) | Features | Contact Material | Shielding | Mounting Type | Primary Material | Material Flammability Rating | Connector Type | Shell Finish | Color | Shell Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Backshell Material, Plating | Orientation [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Mating | Fastening Type | Shell Size - Insert [custom] | Cable Opening [Min] | Cable Opening [Max] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4.2 mm | 0.165 " | 0.126 " | 3.2 mm | IP50 - Dust Protected | 305 | Polyetheretherketone (PEEK) | 5 | 6.5 A | Backshell | Bronze | Shielded | Free Hanging (In-Line) | Metal | UL94 V-0 | Receptacle Female Sockets | Chrome | Silver | Brass | 1.5 Ám | 59 Áin | Brass Chrome | G | -55 C | 250 °C | Gold | Push-Pull | |||||
4.2 mm | 0.165 " | 0.126 " | 3.2 mm | IP50 - Dust Protected | 302 | Polyetheretherketone (PEEK) | 2 | 10 A | Backshell | Bronze | Shielded | Free Hanging (In-Line) | Metal | UL94 V-0 | Receptacle Female Sockets | Chrome | Silver | Brass | 1.5 Ám | 59 Áin | Brass Chrome | G | -55 C | 250 °C | Gold | Push-Pull | |||||
4.2 mm | 0.165 " | 0.126 " | 3.2 mm | IP50 - Dust Protected | 304 | Polyetheretherketone (PEEK) | 4 | 7 A | Backshell | Bronze | Shielded | Free Hanging (In-Line) | Metal | UL94 V-0 | Receptacle Female Sockets | Chrome | Silver | Brass | 1.5 Ám | 59 Áin | Brass Chrome | G | -55 C | 250 °C | Gold | Push-Pull | |||||
LEMO | IP50 - Dust Protected | 304 | Polyetheretherketone (PEEK) | 4 | 7 A | Backshell | Bronze | Shielded | Free Hanging (In-Line) | Metal | UL94 V-0 | Receptacle Female Sockets | Chrome | Silver | Brass | 1.5 Ám | 59 Áin | Brass Chrome | G | -55 C | 250 °C | Gold | Push-Pull | ||||||||
4.2 mm | 0.165 " | 0.126 " | 3.2 mm | IP50 - Dust Protected | 303 | Polyetheretherketone (PEEK) | 8 A | Backshell | Bronze | Shielded | Free Hanging (In-Line) | Metal | UL94 V-0 | Receptacle Female Sockets | Chrome | Silver | Brass | 1.5 Ám | 59 Áin | Brass Chrome | G | -55 C | 250 °C | Gold | Push-Pull | ||||||
4.2 mm | 0.165 " | 0.126 " | 3.2 mm | IP50 - Dust Protected | Polyetheretherketone (PEEK) | 7 | 2.5 A | Backshell | Bronze | Shielded | Free Hanging (In-Line) | Metal | UL94 V-0 | Receptacle Female Sockets | Chrome | Silver | Brass | 1.5 Ám | 59 Áin | Brass Chrome | G | -55 C | 250 °C | Gold | Push-Pull | 307 | |||||
LEMO | IP50 - Dust Protected | 304 | Polyetheretherketone (PEEK) | 4 | 7 A | Backshell | Bronze | Shielded | Free Hanging (In-Line) | Metal | UL94 V-0 | Receptacle Female Sockets | Chrome | Silver | Brass | 1.5 Ám | 59 Áin | Brass Chrome | G | -55 C | 250 °C | Gold | Push-Pull | ||||||||
2.2 mm | 1.4 mm | IP50 - Dust Protected | Polyetheretherketone (PEEK) | 7 | 2.5 A | Backshell | Bronze | Shielded | Free Hanging (In-Line) | Metal | UL94 V-0 | Receptacle Female Sockets | Chrome | Silver | Brass | 1.5 Ám | 59 Áin | Brass Chrome | G | -55 C | 250 °C | Gold | Push-Pull | 307 | 0.055 in | 0.087 " | |||||
2.2 mm | 1.4 mm | IP50 - Dust Protected | 302 | Polyetheretherketone (PEEK) | 2 | 10 A | Backshell | Bronze | Shielded | Free Hanging (In-Line) | Metal | UL94 V-0 | Receptacle Female Sockets | Chrome | Silver | Brass | 1.5 Ám | 59 Áin | Brass Chrome | G | -55 C | 250 °C | Gold | Push-Pull | 0.055 in | 0.087 " | Crimp | ||||
IP50 - Dust Protected | 304 | Polyetheretherketone (PEEK) | 4 | 7 A | Backshell | Bronze | Shielded | Free Hanging (In-Line) | Metal | UL94 V-0 | Receptacle Female Sockets | Chrome | Silver | Brass | 1.5 Ám | 59 Áin | Brass Chrome | G | -55 C | 250 °C | Gold | Push-Pull | 0.091 in 2.3 mm | 0.126 in 3.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.52 | |
| 10 | $ 27.60 | |||
| 25 | $ 26.41 | |||
| 50 | $ 25.56 | |||
| 100 | $ 24.71 | |||
| 250 | $ 23.34 | |||
Description
General part information

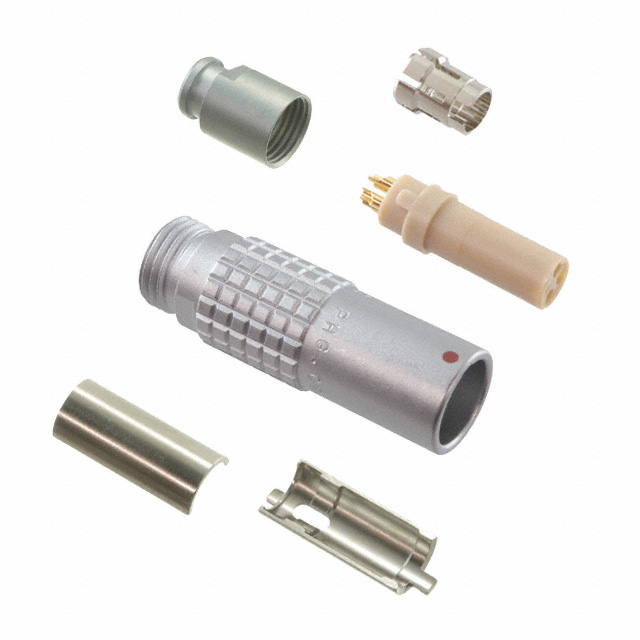

PHG.0B Series
4 Position Circular Connector Receptacle, Female Sockets Solder Cup
